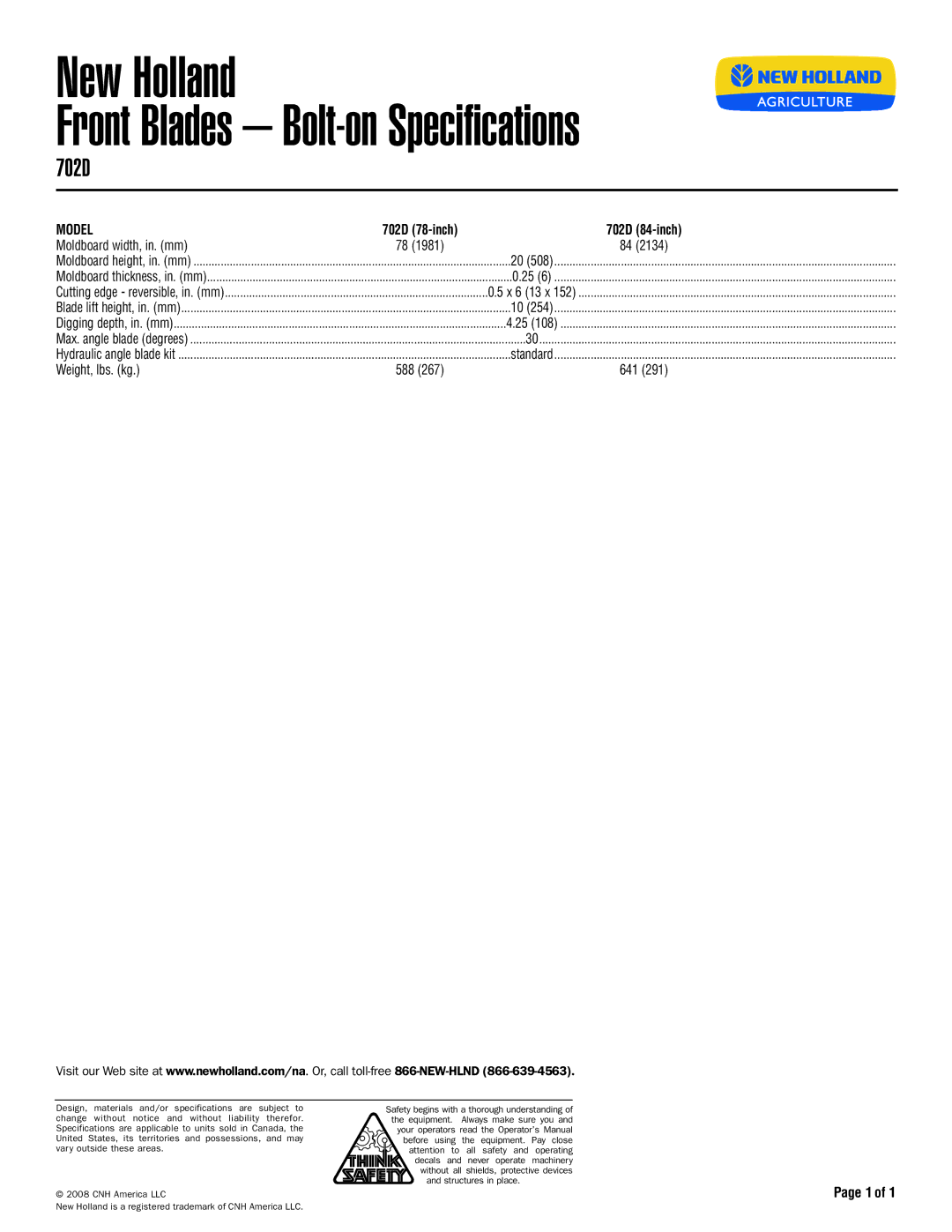

New Holland
Front Blades – Bolt-on Specifications
702D
MODEL | 702D | 702D |
Moldboard width, in. (mm) | 78 (1981) | 84 (2134) |
Moldboard height, in. (mm) | 20 (508) | |
Moldboard thickness, in. (mm) | 0.25 (6) | |
Cutting edge - reversible, in. (mm) | 0.5 x 6 (13 x 152) | |
Blade lift height, in. (mm) | 10 (254) | |
Digging depth, in. (mm) | 4.25 (108) | |
Max. angle blade (degrees) | 30 | |
Hydraulic angle blade kit | standard | |
Weight, lbs. (kg.) | 588 (267) | 641 (291) |
Visit our Web site at www.newholland.com/na. Or, call
Design, materials and/or specifications are subject to change without notic e and withou t liability therefor. Specifications are applicable to units sold in Canada, the United States, its territories and possessions, and may vary outside these areas.
Safety begins with a thorough understanding of the equipment. Always make sure you and your operators read the Operator’s Manual
before using the equipment. Pay close attention to all safety and operating
decals and never operate machinery
without all shields, protective devices and structures in place.
