New Holland

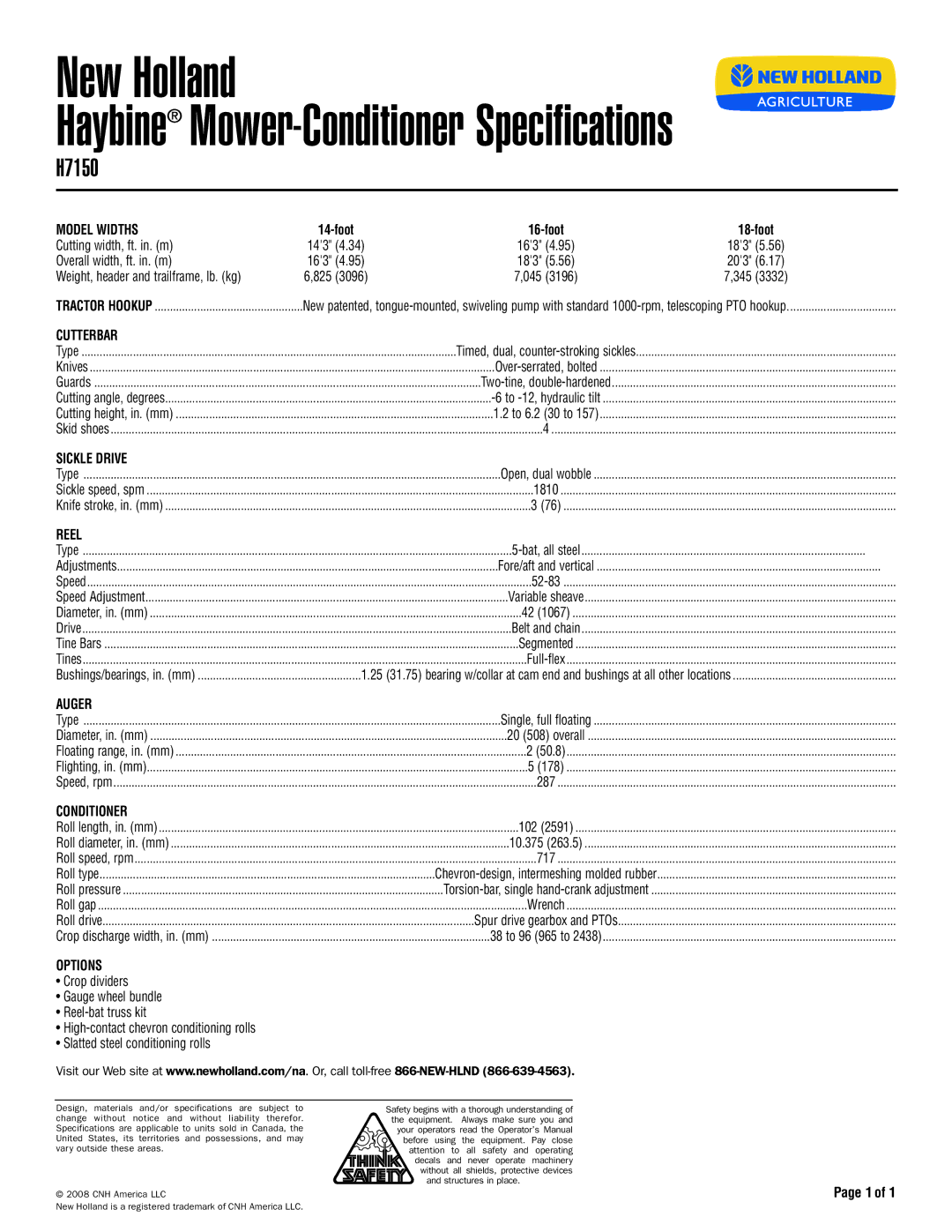

Haybine® Mower-Conditioner Specifications

H7150

MODEL WIDTHS	14-foot	16-foot	18-foot
Cutting width, ft. in. (m)	14'3" (4.34)	16'3" (4.95)	18'3" (5.56)
Overall width, ft. in. (m)	16'3" (4.95)	18'3" (5.56)	20'3" (6.17)
Weight, header and trailframe, lb. (kg)	6,825 (3096)	7,045 (3196)	7,345 (3332)
TRACTOR HOOKUP	New patented, tongue-mounted, swiveling pump with standard 1000-rpm, telescoping PTO hookup
CUTTERBAR
Type		Timed, dual, counter-stroking sickles
Knives		Over-serrated, bolted
Guards		Two-tine, double-hardened
Cutting angle, degrees		-6 to -12, hydraulic tilt
Cutting height, in. (mm)		1.2 to 6.2 (30 to 157)
Skid shoes		4
SICKLE DRIVE
Type		Open, dual wobble
Sickle speed, spm		1810
Knife stroke, in. (mm)		3 (76)
REEL
Type		5-bat, all steel
Adjustments		Fore/aft and vertical
Speed		52-83
Speed Adjustment		Variable sheave
Diameter, in. (mm)		42 (1067)
Drive		Belt and chain
Tine Bars		Segmented
Tines		Full-flex
Bushings/bearings, in. (mm)	1.25 (31.75) bearing w/collar at cam end and bushings at all other locations
AUGER
Type		Single, full floating
Diameter, in. (mm)		20 (508) overall
Floating range, in. (mm)		2 (50.8)
Flighting, in. (mm)		5 (178)
Speed, rpm		287
CONDITIONER
Roll length, in. (mm)		102 (2591)
Roll diameter, in. (mm)		10.375 (263.5)
Roll speed, rpm		717
Roll type		Chevron-design, intermeshing molded rubber
Roll pressure		Torsion-bar, single hand-crank adjustment
Roll gap		Wrench
Roll drive		Spur drive gearbox and PTOs
Crop discharge width, in. (mm)		38 to 96 (965 to 2438)

OPTIONS

•Crop dividers

•Gauge wheel bundle

•Reel-bat truss kit

•High-contact chevron conditioning rolls

•Slatted steel conditioning rolls
