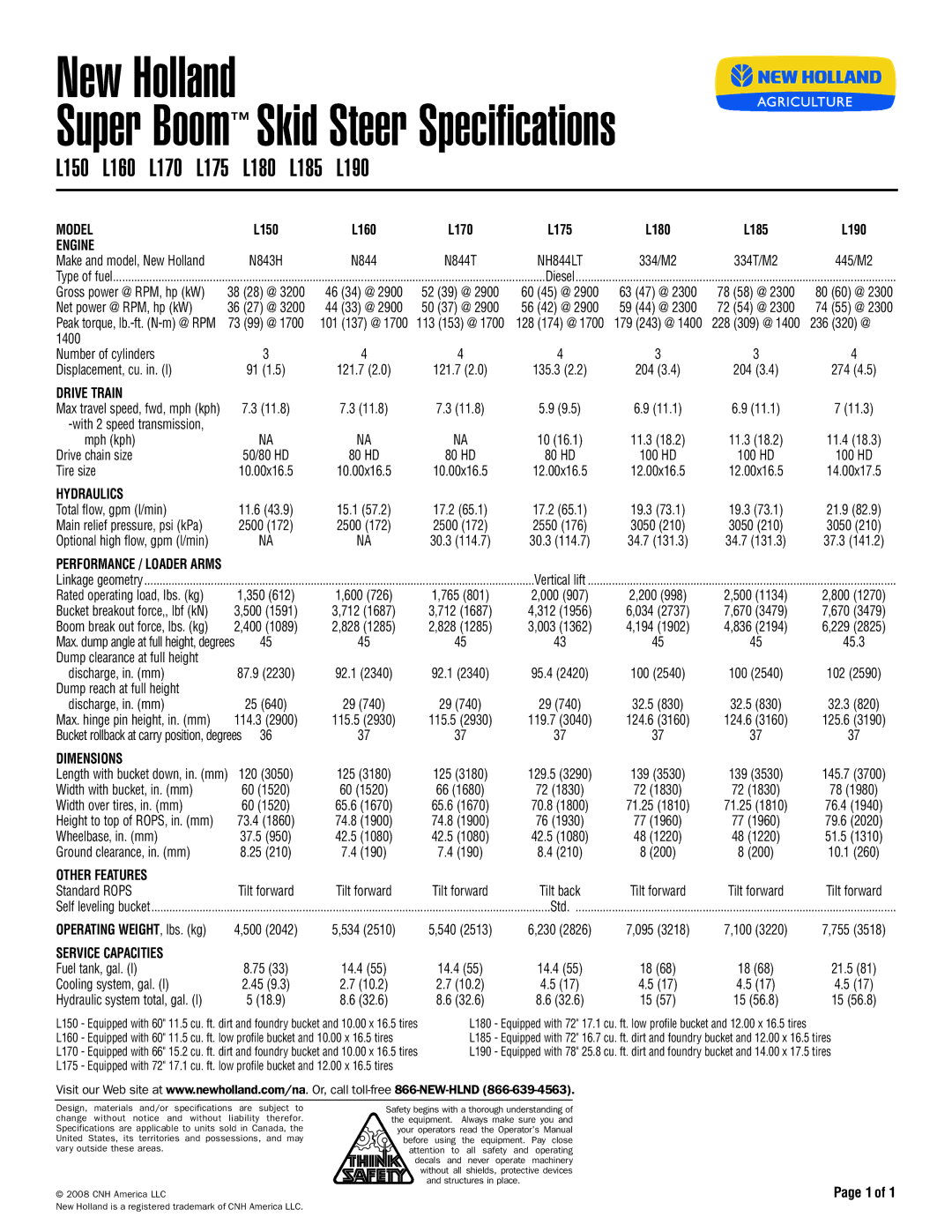

New Holland
Super Boom™ Skid Steer Specifications
L150 | L160 | L170 | L175 | L180 | L185 | L190 |
|
|
|
|
|
| ||
MODEL |
|
|
|
| L150 |
|
| L160 | L170 | L175 | L180 | L185 | L190 | |
ENGINE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Make and model, New Holland |
| N843H |
|
| N844 | N844T | NH844LT | 334/M2 | 334T/M2 | 445/M2 | ||||
Type of fuel |
|
|
| .................................................................................... |
|
| Diesel |
|
|
| ||||
Gross power @ RPM, hp (kW) | 38 (28) @ 3200 |
| 46 (34) @ 2900 | 52 (39) @ 2900 | 60 (45) @ 2900 | 63 (47) @ 2300 | 78 (58) @ 2300 | 80 (60) @ 2300 | ||||||
Net power @ RPM, hp (kW) |
| 36 (27) @ 3200 |
| 44 (33) @ 2900 | 50 (37) @ 2900 | 56 (42) @ 2900 | 59 (44) @ 2300 | 72 (54) @ 2300 | 74 (55) @ 2300 | |||||
Peak torque, | 73 (99) @ 1700 | 101 (137) @ 1700 | 113 (153) @ 1700 | 128 (174) @ 1700 | 179 (243) @ 1400 | 228 (309) @ 1400 | 236 (320) @ | |||||||
1400 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Number of cylinders |
|
| 3 |
|
| 4 | 4 | 4 | 3 | 3 |
| 4 | ||
Displacement, cu. in. (l) |
|
| 91 (1.5) |
|
| 121.7 (2.0) | 121.7 (2.0) | 135.3 (2.2) | 204 (3.4) | 204 (3.4) | 274 | (4.5) | ||
| DRIVE TRAIN |
|
|
|
|
|
|
|
|
|
|
|
|
| |
Max travel speed, fwd, mph (kph) |
| 7.3 (11.8) |
| 7.3 (11.8) | 7.3 (11.8) | 5.9 (9.5) | 6.9 (11.1) | 6.9 (11.1) | 7 (11.3) | |||||
|
|
|
|
|
|
|
|
|
|
| ||||
mph (kph) |
|
|
| NA |
|
| NA | NA | 10 (16.1) | 11.3 (18.2) | 11.3 (18.2) | 11.4 (18.3) | ||
Drive chain size |
|
|
| 50/80 HD |
|
| 80 HD | 80 HD | 80 HD | 100 HD | 100 HD | 100 HD | ||
Tire size |
|
|
|
| 10.00x16.5 |
| 10.00x16.5 | 10.00x16.5 | 12.00x16.5 | 12.00x16.5 | 12.00x16.5 | 14.00x17.5 | ||
| HYDRAULICS |
|
|
|
|
|
|
|
|
|
|
|
|
| |
Total flow, gpm (l/min) |
|
| 11.6 (43.9) |
| 15.1 (57.2) | 17.2 (65.1) | 17.2 (65.1) | 19.3 (73.1) | 19.3 (73.1) | 21.9 (82.9) | ||||
Main relief pressure, psi (kPa) |
| 2500 (172) |
| 2500 (172) | 2500 (172) | 2550 (176) | 3050 (210) | 3050 (210) | 3050 (210) | |||||
Optional high flow, gpm (l/min) |
| NA |
|
| NA | 30.3 (114.7) | 30.3 (114.7) | 34.7 (131.3) | 34.7 (131.3) | 37.3 (141.2) | ||||
PERFORMANCE / LOADER ARMS |
|
|
|
|
|
|
|
|
|
|
| |||
Linkage geometry |
|
|
|
|
|
|
| Vertical lift |
|
|
| |||
Rated operating load, lbs. (kg) |
| 1,350 (612) |
| 1,600 (726) | 1,765 (801) | 2,000 (907) | 2,200 (998) | 2,500 (1134) | 2,800 | (1270) | ||||
Bucket breakout force,, lbf (kN) | 3,500 (1591) |
| 3,712 (1687) | 3,712 (1687) | 4,312 (1956) | 6,034 (2737) | 7,670 (3479) | 7,670 | (3479) | |||||
Boom break out force, lbs. (kg) | 2,400 (1089) |
| 2,828 (1285) | 2,828 (1285) | 3,003 (1362) | 4,194 (1902) | 4,836 (2194) | 6,229 | (2825) | |||||
Max. dump angle at fullheight, degrees | 45 |
|
| 45 | 45 | 43 | 45 | 45 | 45.3 | |||||
Dump clearance at full height |
|
|
|
|
|
|
|
|
|
|
| |||
discharge, in. (mm) |
|
| 87.9 (2230) |
| 92.1 (2340) | 92.1 (2340) | 95.4 (2420) | 100 (2540) | 100 (2540) | 102 (2590) | ||||
Dump reach at full height |
|
|
|
|
|
|
|
|
|
|
|
| ||
discharge, in. (mm) |
|
| 25 (640) |
|
| 29 (740) | 29 (740) | 29 (740) | 32.5 (830) | 32.5 (830) | 32.3 | (820) | ||
Max. hinge pin height, in. (mm) | 114.3 (2900) |
| 115.5 (2930) | 115.5 (2930) | 119.7 (3040) | 124.6 (3160) | 124.6 (3160) | 125.6 | (3190) | |||||
Bucket rollback at carryposition, degrees 36 |
|
| 37 | 37 | 37 | 37 | 37 | 37 | ||||||
| DIMENSIONS |
|
|
|
|
|
|
|
|
|
|
|
|
| |
Length with bucket down, in. (mm) | 120 (3050) |
| 125 (3180) | 125 (3180) | 129.5 (3290) | 139 (3530) | 139 (3530) | 145.7 | (3700) | |||||
Width with bucket, in. (mm) |
|
| 60 (1520) |
| 60 (1520) | 66 (1680) | 72 (1830) | 72 (1830) | 72 (1830) | 78 (1980) | ||||
Width over tires, in. (mm) |
|
| 60 (1520) |
| 65.6 (1670) | 65.6 (1670) | 70.8 (1800) | 71.25 (1810) | 71.25 (1810) | 76.4 (1940) | ||||
Height to top of ROPS, in. (mm) |
| 73.4 (1860) |
| 74.8 (1900) | 74.8 (1900) | 76 (1930) | 77 (1960) | 77 (1960) | 79.6 (2020) | |||||
Wheelbase, in. (mm) |
|
| 37.5 (950) |
| 42.5 (1080) | 42.5 (1080) | 42.5 (1080) | 48 (1220) | 48 (1220) | 51.5 (1310) | ||||
Ground clearance, in. (mm) |
|
| 8.25 (210) |
| 7.4 (190) | 7.4 (190) | 8.4 (210) | 8 (200) | 8 (200) | 10.1 | (260) | |||
OTHER FEATURES |
|
|
|
|
|
|
|
|
|
|
|
|
| |
Standard ROPS |
|
|
| Tilt forward |
| Tilt forward | Tilt forward | Tilt back | Tilt forward | Tilt forward | Tilt forward | |||
Self leveling bucket |
|
|
|
|
|
| Std |
|
|
| ||||
OPERATING WEIGHT, lbs. (kg) | 4,500 (2042) |
| 5,534 (2510) | 5,540 (2513) | 6,230 (2826) | 7,095 (3218) | 7,100 (3220) | 7,755 | (3518) | |||||
| SERVICE CAPACITIES |
|
|
|
|
|
|
|
|
|
|
|
| ||
Fuel tank, gal. (l) |
|
|
| 8.75 (33) |
|
| 14.4 (55) | 14.4 (55) | 14.4 (55) | 18 (68) | 18 (68) | 21.5 (81) | ||
Cooling system, gal. (l) |
|
| 2.45 (9.3) |
| 2.7 (10.2) | 2.7 (10.2) | 4.5 (17) | 4.5 (17) | 4.5 (17) | 4.5 | (17) | |||
Hydraulic system total, gal. (l) |
| 5 (18.9) |
|
| 8.6 (32.6) | 8.6 (32.6) | 8.6 (32.6) | 15 (57) | 15 (56.8) | 15 (56.8) | ||||
L150 - Equipped with 60" 11.5 cu. ft. dirt and foundry bucket and 10.00 x 16.5 tires L160 - Equipped with 60" 11.5 cu. ft. low profile bucket and 10.00 x 16.5 tires
L170 - Equipped with 66" 15.2 cu. ft. dirt and foundry bucket and 10.00 x 16.5 tires L175 - Equipped with 72" 17.1 cu. ft. low profile bucket and 12.00 x 16.5 tires
L180 - Equipped with 72" 17.1 cu. ft. low profile bucket and 12.00 x 16.5 tires
L185 - Equipped with 72" 16.7 cu. ft. dirt and foundry bucket and 12.00 x 16.5 tires L190 - Equipped with 78" 25.8 cu. ft. dirt and foundry bucket and 14.00 x 17.5 tires
