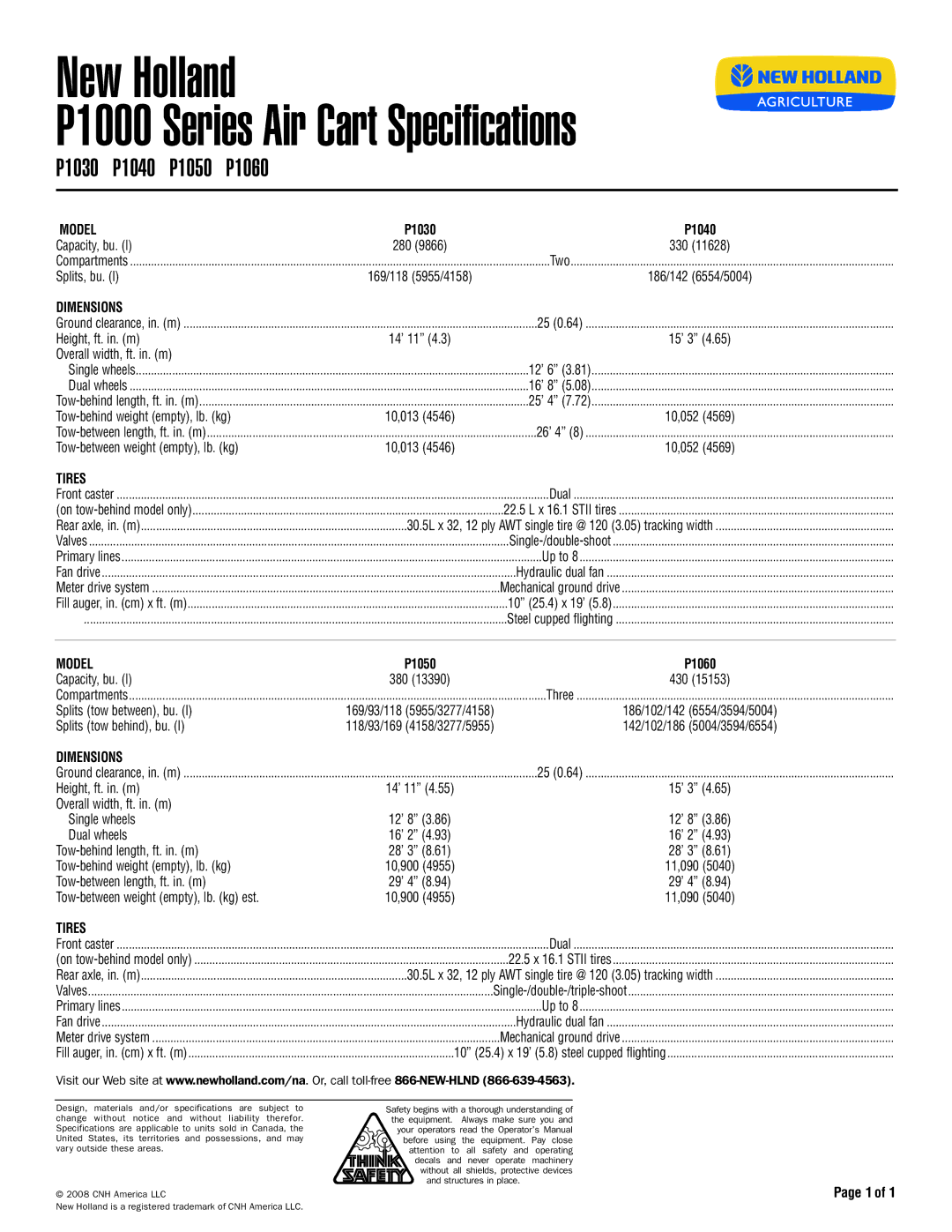

New Holland
P1000 Series Air Cart Specifications
P1030 | P1040 | P1050 | P1060 |
|
|
|
MODEL |
|
|
| P1030 | P1040 | |
Capacity, bu. (l) |
|
| 280 (9866) | 330 (11628) |
| |
Compartments |
| ............................................. | Two | |||
Splits, bu. (l) |
|
| 169/118 (5955/4158) | 186/142 (6554/5004) |
| |
DIMENSIONS |
|
|
|
|
| |
Ground clearance, in. (m) |
| 25 (0.64) |
| |||
Height, ft. in. (m) |
|
| 14’ 11” (4.3) | 15’ 3” (4.65) | ||
Overall width, ft. in. (m) |
|
|
|
| ||
Single wheels |
|
| 12’ 6” (3.81) | |||
Dual wheels |
| ........................................ | 16’ 8” (5.08) | |||
| 25’ 4” (7.72) | |||||
10,013 (4546) | 10,052 (4569) |
| ||||
| 26’ 4” (8) | |||||
10,013 (4546) | 10,052 (4569) |
| ||||
TIRES |
|
|
|
|
|
|
Front caster |
|
| Dual | |||
(on | ................................ | 22.5 L x 16.1 STII tires | ||||
Rear axle, in. (m) |
| .30...5L x 32, 12 ply AWT single tire @ 120 (3.05) tracking width | ||||
Valves |
|
|
| |||
Primary lines |
|
| Up to 8 | |||
Fan drive |
|
|
| Hydraulic dual fan | ||
Meter drive system |
|
| Mechanical ground drive | |||
Fill auger, in. (cm) x ft. (m) | ................................. | 10” (25.4) x 19’ (5.8) | ||||
........................................................................................................ |
|
| ................................. | Steel cupped flighting | ||
|
|
|
|
|
|
|
MODEL |
|
|
| P1050 | P1060 | |
Capacity, bu. (l) |
|
| 380 (13390) | 430 (15153) |
| |
Compartments | ....................................................................................................... | Three | ||||
Splits (tow between), bu. (l) |
| 169/93/118 (5955/3277/4158) | 186/102/142 (6554/3594/5004) |
| ||
Splits (tow behind), bu. (l) |
| 118/93/169 (4158/3277/5955) | 142/102/186 (5004/3594/6554) |
| ||
DIMENSIONS |
|
|
|
|
| |
Ground clearance, in. (m) |
| 25 (0.64) |
| |||
Height, ft. in. (m) |
|
| 14’ 11” (4.55) | 15’ 3” (4.65) | ||
Overall width, ft. in. (m) |
|
|
|
| ||
Single wheels |
|
| 12’ 8” (3.86) | 12’ 8” (3.86) | ||
Dual wheels |
|
| 16’ 2” (4.93) | 16’ 2” (4.93) | ||
| 28’ 3” (8.61) | 28’ 3” (8.61) | ||||
10,900 (4955) | 11,090 (5040) |
| ||||
| 29’ 4” (8.94) | 29’ 4” (8.94) | ||||
10,900 (4955) | 11,090 (5040) |
| ||||
TIRES |
|
|
|
|
|
|
Front caster |
|
| Dual | |||
(on | .................................. | 22.5 x 16.1 STII tires | ||||
Rear axle, in. (m) |
| 30.5L x 32, 12 ply AWT single tire @ 120 (3.05) tracking width | ||||
Valves |
|
| ||||
Primary lines |
|
| Up to 8 | |||
Fan drive |
|
| .................................... | Hydraulic dual fan | ||
Meter drive system |
|
| Mechanical ground drive | |||
Fill auger, in. (cm) x ft. (m) | ..............10” (25.4) x 19’ (5.8) steel cupped flighting | |||||
Visit our Web site at www.newholland.com/na. Or, call
Design, materials and/or specifications are subject to change without notic e and withou t liability therefor. Specifications are applicable to units sold in Canada, the United States, its territories and possessions, and may vary outside these areas.
Safety begins with a thorough understanding of the equipment. Always make sure you and your operators read the Operator’s Manual
before using the equipment. Pay close attention to all safety and operating
decals and never operate machinery
without all shields, protective devices and structures in place.
© 2008 CNH America LLC
New Holland is a registered trademark of CNH America LLC.
