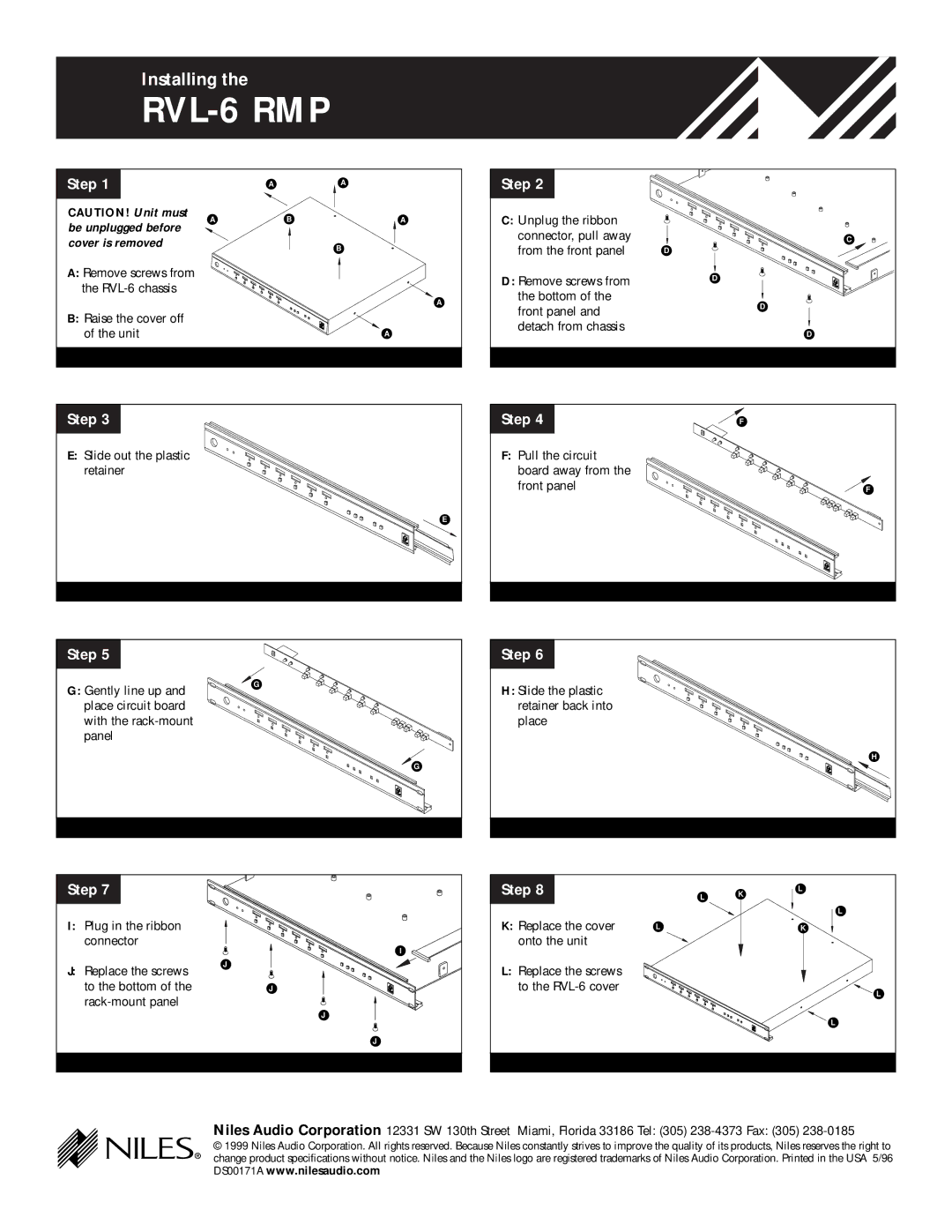

Installing the

RVL-6 RMP

Step 1

A

A

CAUTION! Unit must

B

A

A

be unplugged before





cover is removed



B





A:Remove screws from

the RVL-6 chassis

A

B: Raise the cover off



of the unit

A

Step 2

C: Unplug the ribbon



connector, pull away

C

from the front panel

D

D: Remove screws from

D



the bottom of the

D

front panel and



detach from chassis

D



Step 3

E:Slide out the plastic

retainer

Step 5

G: Gently line up and place circuit board with the rack-mount panel

E

G

G

Step 4

F

F: Pull the circuit



board away from the



front panel

F

Step 6

H:Slide the plastic

retainer back into place

H

Step 7

Step 8

L K

L

I:Plug in the ribbon connector

J:Replace the screws to the bottom of the rack-mount panel

I

J

J

J

J

K:Replace the cover onto the unit

L:Replace the screws to the RVL-6 cover

L

L

K

L

L
