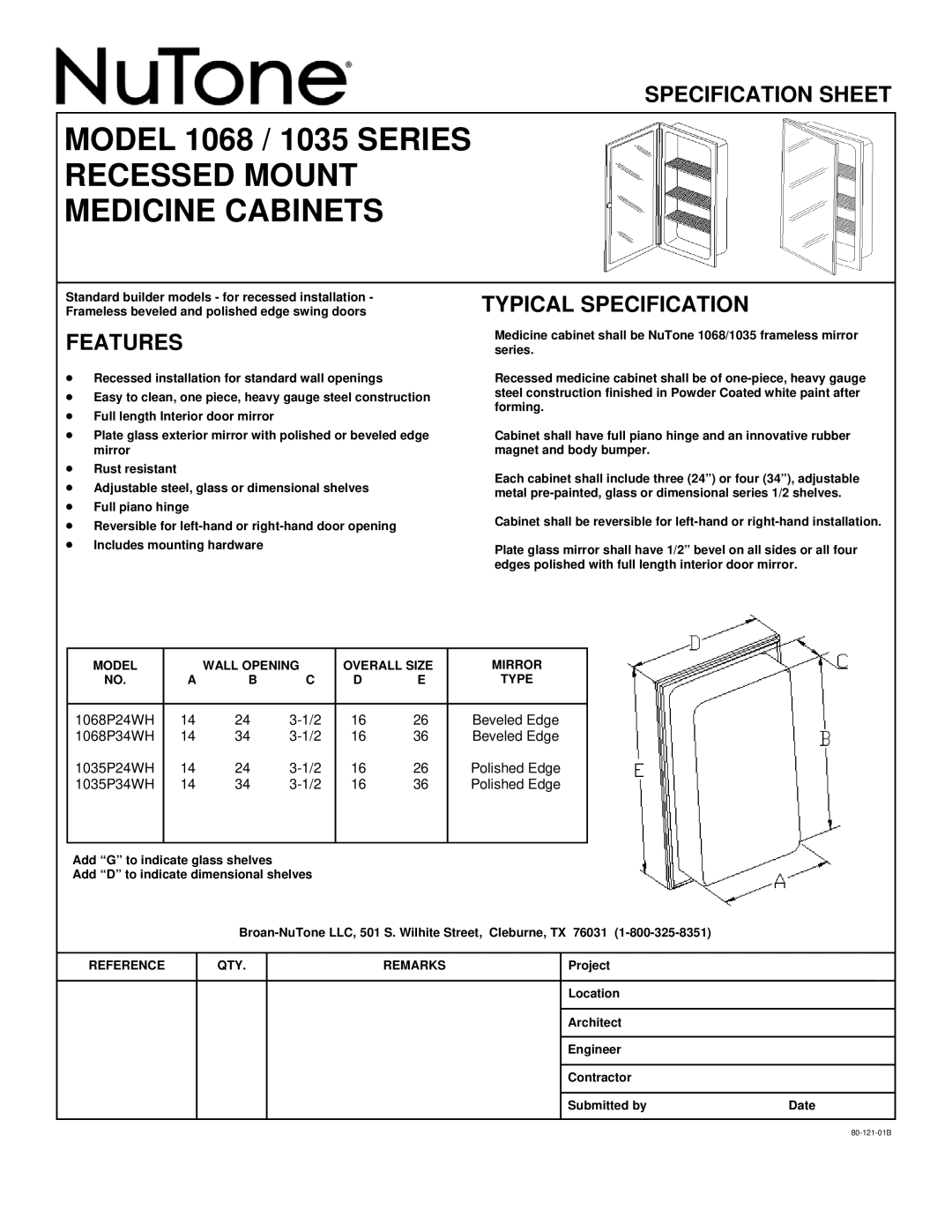

SPECIFICATION SHEET

MODEL 1068 / 1035 SERIES

RECESSED MOUNT

MEDICINE CABINETS

Standard builder models - for recessed installation - Frameless beveled and polished edge swing doors

FEATURES

Recessed installation for standard wall openings

Easy to clean, one piece, heavy gauge steel construction

Full length Interior door mirror

Plate glass exterior mirror with polished or beveled edge mirror

Rust resistant

Adjustable steel, glass or dimensional shelves

Full piano hinge

Reversible for left-hand or right-hand door opening

Includes mounting hardware

TYPICAL SPECIFICATION

Medicine cabinet shall be NuTone 1068/1035 frameless mirror series.

Recessed medicine cabinet shall be of one-piece, heavy gauge steel construction finished in Powder Coated white paint after forming.

Cabinet shall have full piano hinge and an innovative rubber magnet and body bumper.

Each cabinet shall include three (24”) or four (34”), adjustable metal pre-painted, glass or dimensional series 1/2 shelves.

Cabinet shall be reversible for left-hand or right-hand installation.

Plate glass mirror shall have 1/2” bevel on all sides or all four edges polished with full length interior door mirror.



































MODEL







WALL OPENING





OVERALL SIZE



MIRROR





NO.





A

B

C





D

E



TYPE

































































































































































1068P24WH





14

24

3-1/2







16

26



Beveled Edge





1068P34WH





14

34

3-1/2







16

36



Beveled Edge





1035P24WH





14

24

3-1/2







16

26



Polished Edge





1035P34WH





14

34

3-1/2







16

36



Polished Edge



































































































Add “G” to indicate glass shelves

Add “D” to indicate dimensional shelves

Broan-NuTone LLC, 501 S. Wilhite Street, Cleburne, TX 76031 (1-800-325-8351)

REFERENCE



QTY.



REMARKS



Project















Location

Architect

Engineer

Contractor

Submitted by

Date





80-121-01B

Page 1
