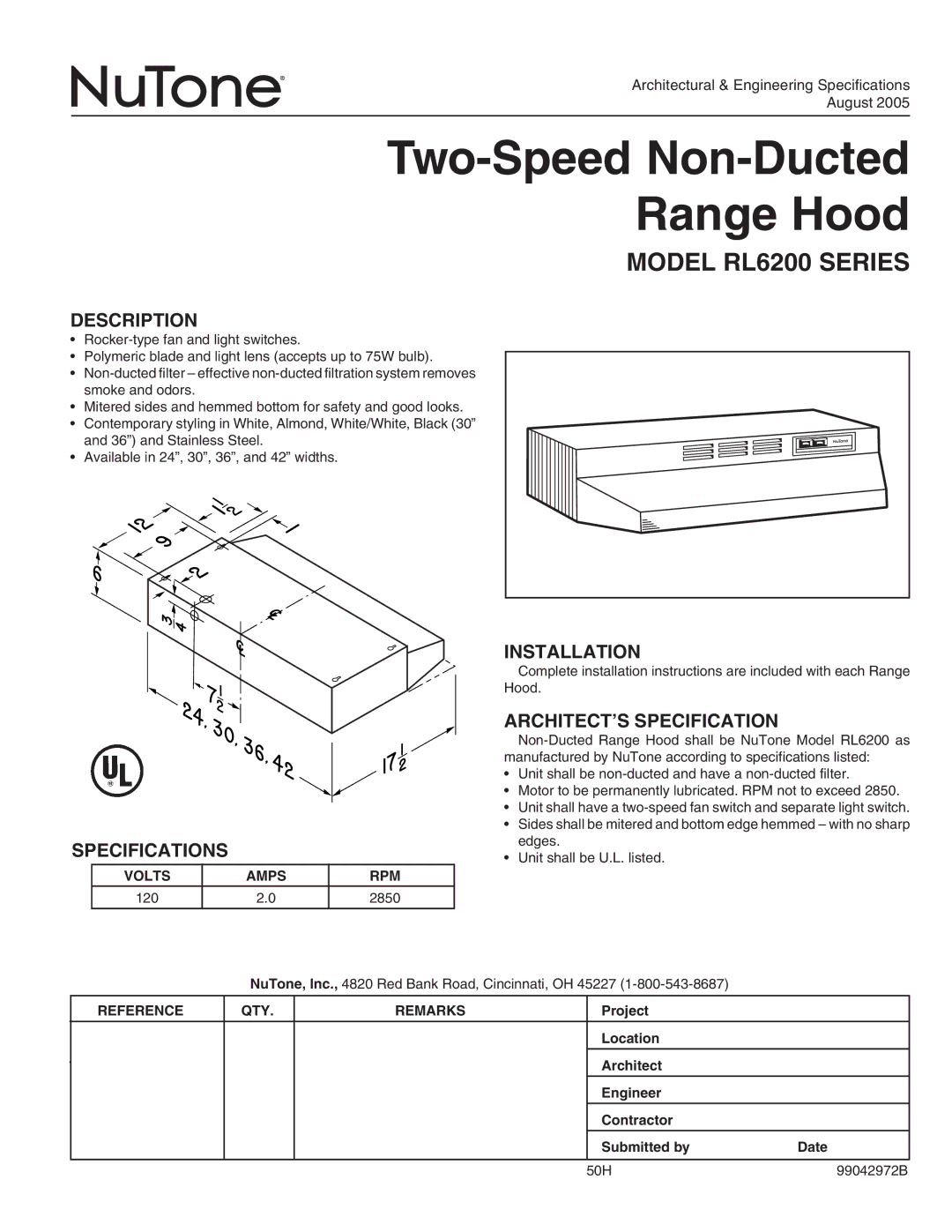

Architectural & Engineering Specifications

August 2005

Two-Speed Non-Ducted Range Hood

MODEL RL6200 SERIES

DESCRIPTION

Rocker-type fan and light switches.

Polymeric blade and light lens (accepts up to 75W bulb).

Non-ducted filter – effective non-ducted filtration system removes smoke and odors.

Mitered sides and hemmed bottom for safety and good looks.

Contemporary styling in White, Almond, White/White, Black (30” and 36”) and Stainless Steel.

Available in 24”, 30”, 36”, and 42” widths.

SPECIFICATIONS

VOLTS

AMPS

RPM







120

2.0

2850







INSTALLATION

Complete installation instructions are included with each Range Hood.

ARCHITECT’S SPECIFICATION

Non-Ducted Range Hood shall be NuTone Model RL6200 as manufactured by NuTone according to specifications listed:

Unit shall be non-ducted and have a non-ducted filter.

Motor to be permanently lubricated. RPM not to exceed 2850.

Unit shall have a two-speed fan switch and separate light switch.

Sides shall be mitered and bottom edge hemmed – with no sharp edges.

Unit shall be U.L. listed.

NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-800-543-8687)

REFERENCE

QTY.

REMARKS

Project



















Location









Architect



















Engineer



















Contractor









Submitted by

Date

















50H

99042972B

Page 1
