5

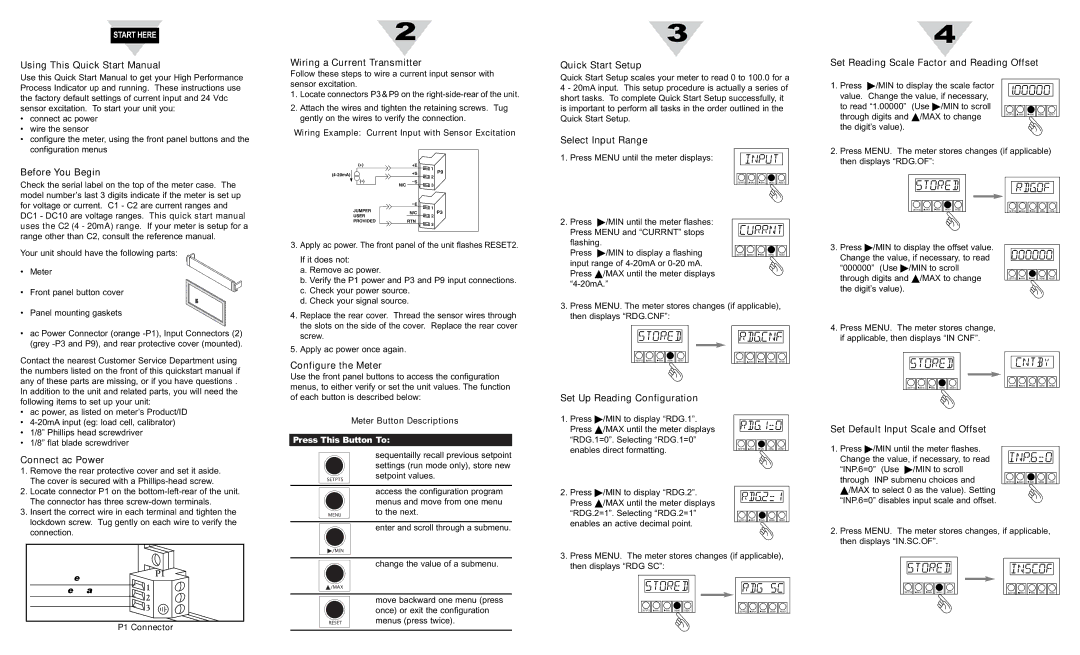

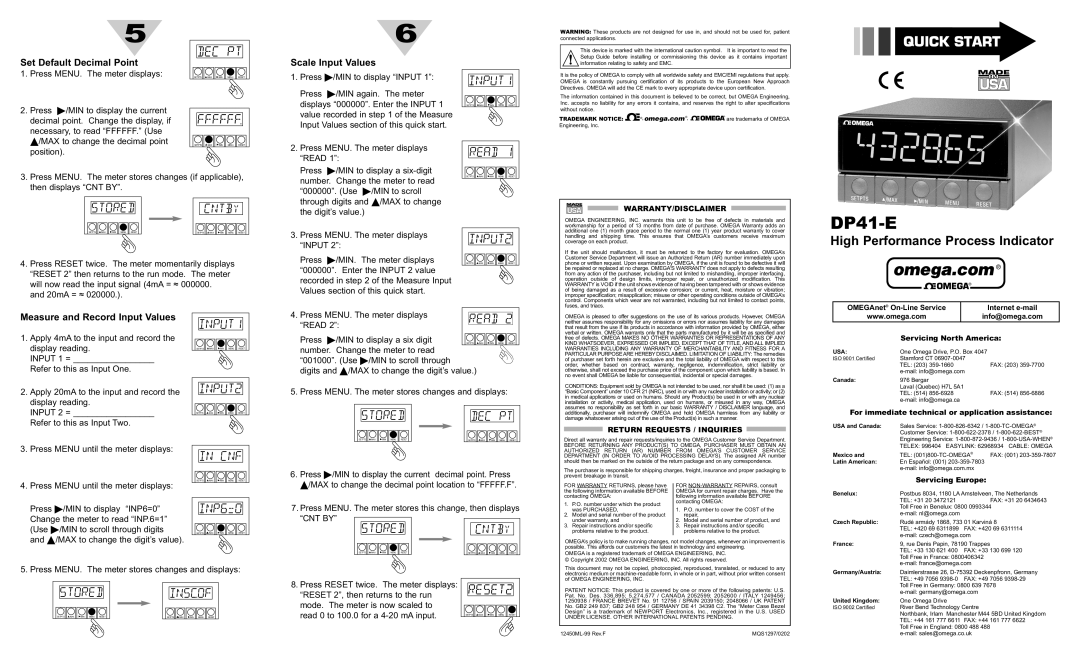

Set Default Decimal Point
1.Press MENU. The meter displays:
2.Press /MIN to display the current decimal point. Change the display, if necessary, to read “FFFFFF.” (Use /MAX to change the decimal point position).
Dec pt
SETPTS /MAX /MIN MENU RESET
FFFFFF.
SETPTS /MAX /MIN MENU RESET
6
Scale Input Values
1. Press /MIN to display “INPUT 1”:
Press /MIN again. The meter displays “000000”. Enter the INPUT 1 value recorded in step 1 of the Measure Input Values section of this quick start.
2. Press MENU. The meter displays “READ 1”:
WARNING: These products are not designed for use in, and should not be used for, patient connected applications.
This device is marked with the international caution symbol. It is important to read the Setup Guide before installing or commissioning this device as it contains important information relating to safety and EMC.
It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply. OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
TRADEMARK NOTICE:
®,omega.com ®,
® are trademarks of OMEGA Engineering, Inc.
3.Press MENU. The meter stores changes (if applicable), then displays “CNT BY”.
stored | CNTBY |
SETPTS /MAX /MIN MENU RESET | SETPTS /MAX /MIN MENU RESET |
4.Press RESET twice. The meter momentarily displays “RESET 2” then returns to the run mode. The meter will now read the input signal (4mA = ≈ 000000. and 20mA = ≈ 020000.).
Measure and Record Input Values |
|
|
|
|
|
|
|
|
|
|
| INPUT1 |
|
| |||||
|
|
|
|
| |||||
1. Apply 4mA to the input and record the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
display reading. |
| SETPTS | /MAX | /MIN | MENU | RESET |
| ||
INPUT 1 = _________________
Refer to this as Input One.
Press /MIN to display a
3. Press MENU. The meter displays “INPUT 2”:
Press /MIN. The meter displays “000000”. Enter the INPUT 2 value recorded in step 2 of the Measure Input Values section of this quick start.
4. Press MENU. The meter displays “READ 2”:
Press /MIN to display a six digit
number. Change the meter to read “001000”. (Use /MIN to scroll through digits and /MAX to change the digit’s value.)
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA Warranty adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit should malfunction, it must be returned to the factory for evaluation. OMEGA’s Customer Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective it will be repaired or replaced at no charge. OMEGA'S WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of being damaged as a result of excessive corrosion; or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating conditions outside of OMEGA’s control. Components which wear are not warranted, including but not limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any damages that result from the use if its products in accordance with information provided by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by it will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF LIABILITY: The remedies of purchaser set forth herein are exclusive and the total liability of OMEGA with respect to this order, whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the component upon which liability is based. In no event shall OMEGA be liable for consequential, incidental or special damages.
DP41-E
High Performance Process Indicator
|
|
| ® |
|
|
| ® |
|
|
| |
OMEGAnet® |
| Internet | |
www.omega.com |
| info@omega.com | |
| Servicing North America: | ||
USA: | One Omega Drive, P.O. Box 4047 | ||
ISO 9001 Certified | Stamford CT |
| |
| TEL: (203) | FAX: (203) | |
|
| ||
Canada: | 976 Bergar |
| |
2.Apply 20mA to the input and record the display reading.
INPUT 2 = _________________
Refer to this as Input Two.
3.Press MENU until the meter displays:
4.Press MENU until the meter displays:
Press /MIN to display “INP6=0” Change the meter to read “INP.6=1” (Use /MIN to scroll through digits and /MAX to change the digit’s value).
INPUT2
SETPTS /MAX /MIN MENU RESET
IN CNF
SETPTS /MAX /MIN MENU RESET
INp6=0
SETPTS /MAX /MIN MENU RESET
5. Press MENU. The meter stores changes and displays:
stored | Dec pt |
SETPTS /MAX /MIN MENU RESET | SETPTS /MAX /MIN MENU RESET |
6.Press /MIN to display the current decimal point. Press /MAX to change the decimal point location to “FFFFF.F”.
7.Press MENU. The meter stores this change, then displays “CNT BY”
stored | CNTBY |
SETPTS /MAX /MIN MENU RESET | SETPTS /MAX /MIN MENU RESET |
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical applications or used on humans. Should any Product(s) be used in or with any nuclear installation or activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility as set forth in our basic WARRANTY / DISCLAIMER language, and additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner.
RETURN REQUESTS / INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent breakage in transit.
FOR WARRANTY RETURNS, please have | FOR | |||
the following information available BEFORE | OMEGA for current repair charges. Have the | |||
contacting OMEGA: | following information available BEFORE | |||
1. | P.O. number under which the product | contacting OMEGA: | ||
1. | P.O. number to cover the COST of the | |||
| was PURCHASED, | |||
2. | Model and serial number of the product |
| repair, | |
| under warranty, and | 2. | Model and serial number of product, and | |
3. | Repair instructions and/or specific | 3. | Repair instructions and/or specific | |
| problems relative to the product. |
| problems relative to the product. | |
|
|
|
| |
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC. © Copyright 2002 OMEGA ENGINEERING, INC. All rights reserved.
Laval (Quebec) H7L 5A1 |
|
TEL: (514) | FAX: (514) |
|
For immediate technical or application assistance:
USA and Canada: | Sales Service: | ||
| Customer Service: | ||
| Engineering Service: | ||
| TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA | ||
Mexico and | TEL: | FAX: (001) | |
Latin American: | En Español: (001) |
| |
|
| ||
| Servicing Europe: |
| |
Benelux: | Postbus 8034, 1180 LA Amstelveen, The Netherlands | ||
| TEL: +31 20 3472121 | FAX: +31 20 6434643 | |
| Toll Free in Benelux: 0800 0993344 |
| |
|
|
| |
Czech Republic: | Rudé armády 1868, 733 01 Karviná 8 | ||
| TEL: +420 69 6311899 | FAX: +420 69 63 11114 | |
|
| ||
France: | 9, rue Denis Papin, 78190 Trappes |
| |
| TEL: +33 130 621 400 | FAX: +33 130 699 120 | |
| Toll Free in France: 0800406342 |
| |
|
| ||
5. Press MENU. The meter stores changes and displays:
stored | IN.SC.OF |
SETPTS /MAX /MIN MENU RESET | SETPTS /MAX /MIN MENU RESET |
8. Press RESET twice. The meter displays: |
|
|
|
|
|
|
|
|
|
|
| REset2 |
|
| |||||
“RESET 2”, then returns to the run |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
mode. The meter is now scaled to |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
read 0 to 100.0 for a |
| SETPTS | /MAX | /MIN | MENU | RESET |
| ||
|
|
|
|
|
|
|
|
| |
