Omega Engineering instruction sheet Introduction, Features, PSP and PST Series

PSP and PST Series

Power Supplies

INSTRUCTION

M0252/0707

SHEET Shop online at: omega.com e-mail: info@omega.com

For latest product manuals: omegamanual.info

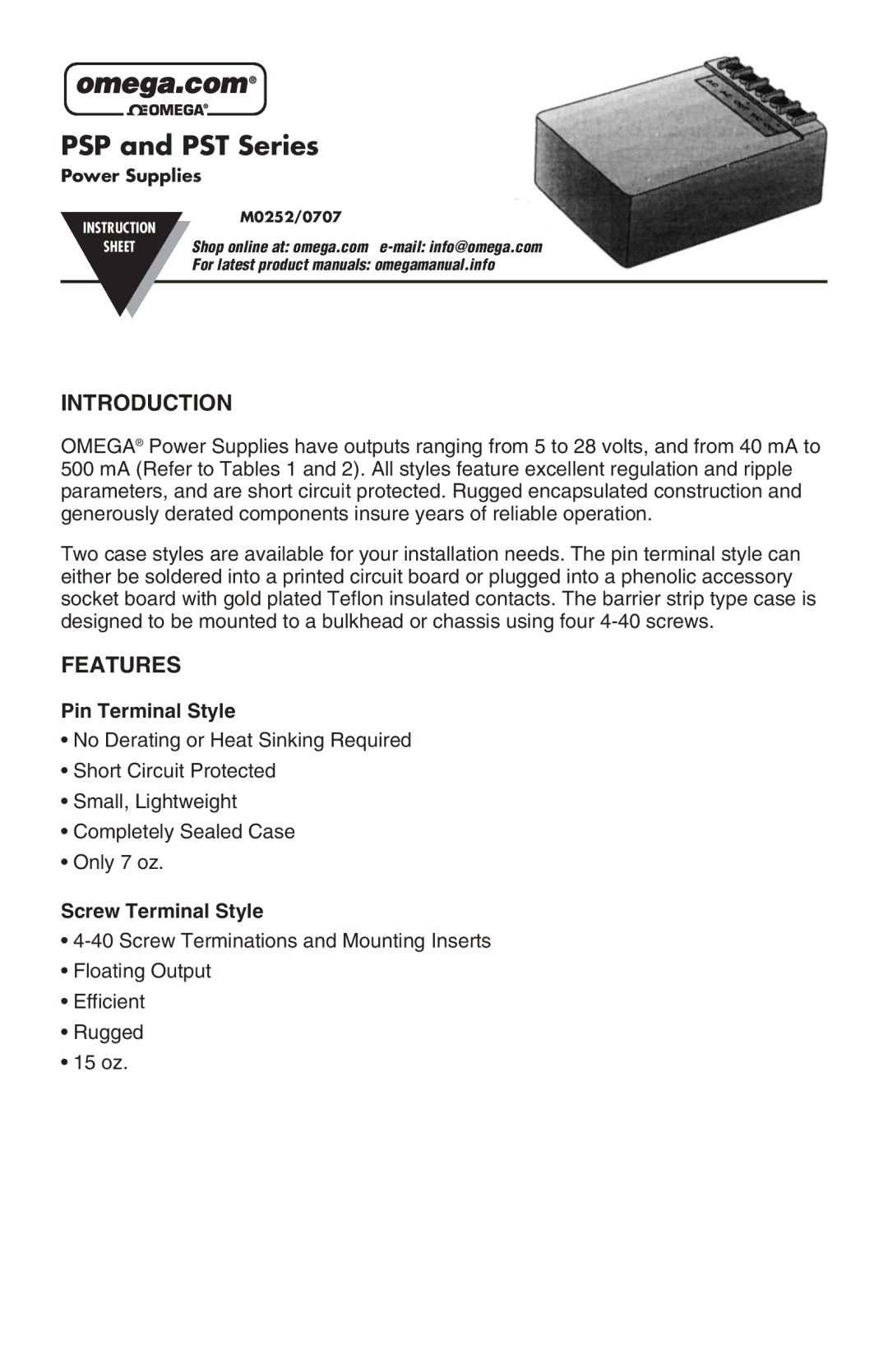

INTRODUCTION

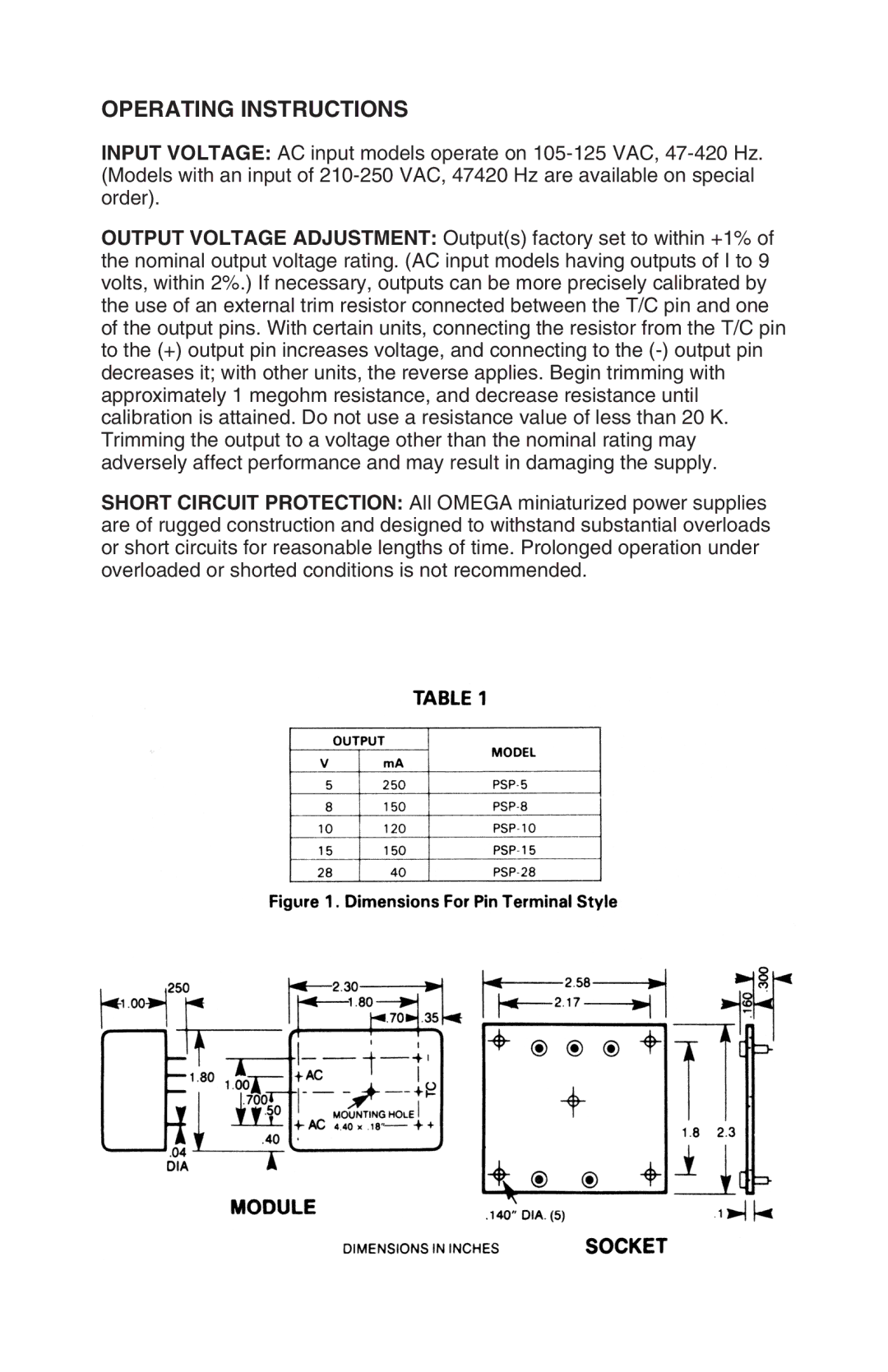

OMEGA® Power Supplies have outputs ranging from 5 to 28 volts, and from 40 mA to 500 mA (Refer to Tables 1 and 2). All styles feature excellent regulation and ripple parameters, and are short circuit protected. Rugged encapsulated construction and generously derated components insure years of reliable operation.

Two case styles are available for your installation needs. The pin terminal style can either be soldered into a printed circuit board or plugged into a phenolic accessory socket board with gold plated Teflon insulated contacts. The barrier strip type case is designed to be mounted to a bulkhead or chassis using four 4-40 screws.

FEATURES

Pin Terminal Style

•No Derating or Heat Sinking Required

•Short Circuit Protected

•Small, Lightweight

•Completely Sealed Case

•Only 7 oz.

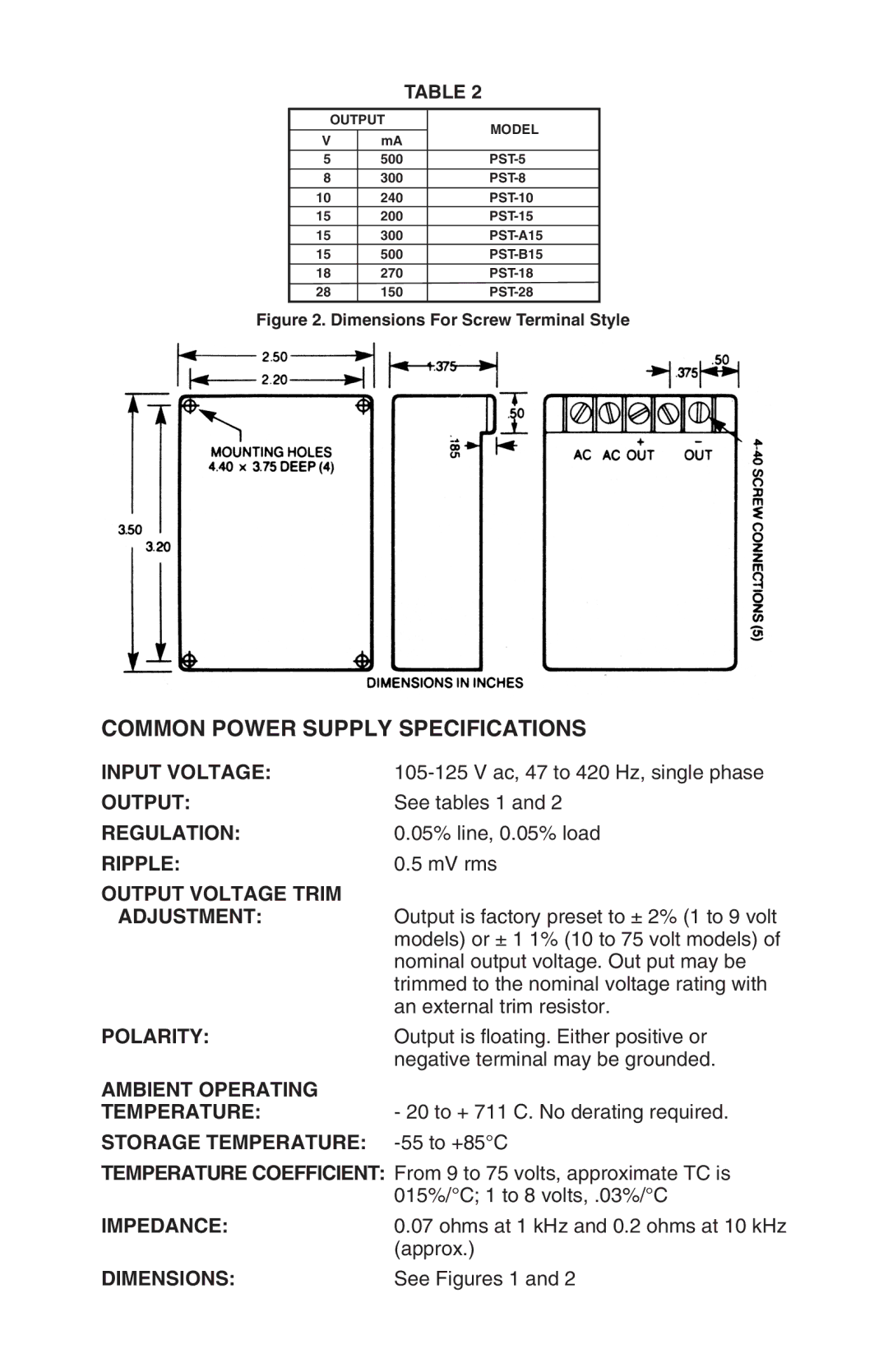

Screw Terminal Style

•4-40 Screw Terminations and Mounting Inserts

•Floating Output

•Efficient

•Rugged

•15 oz.
