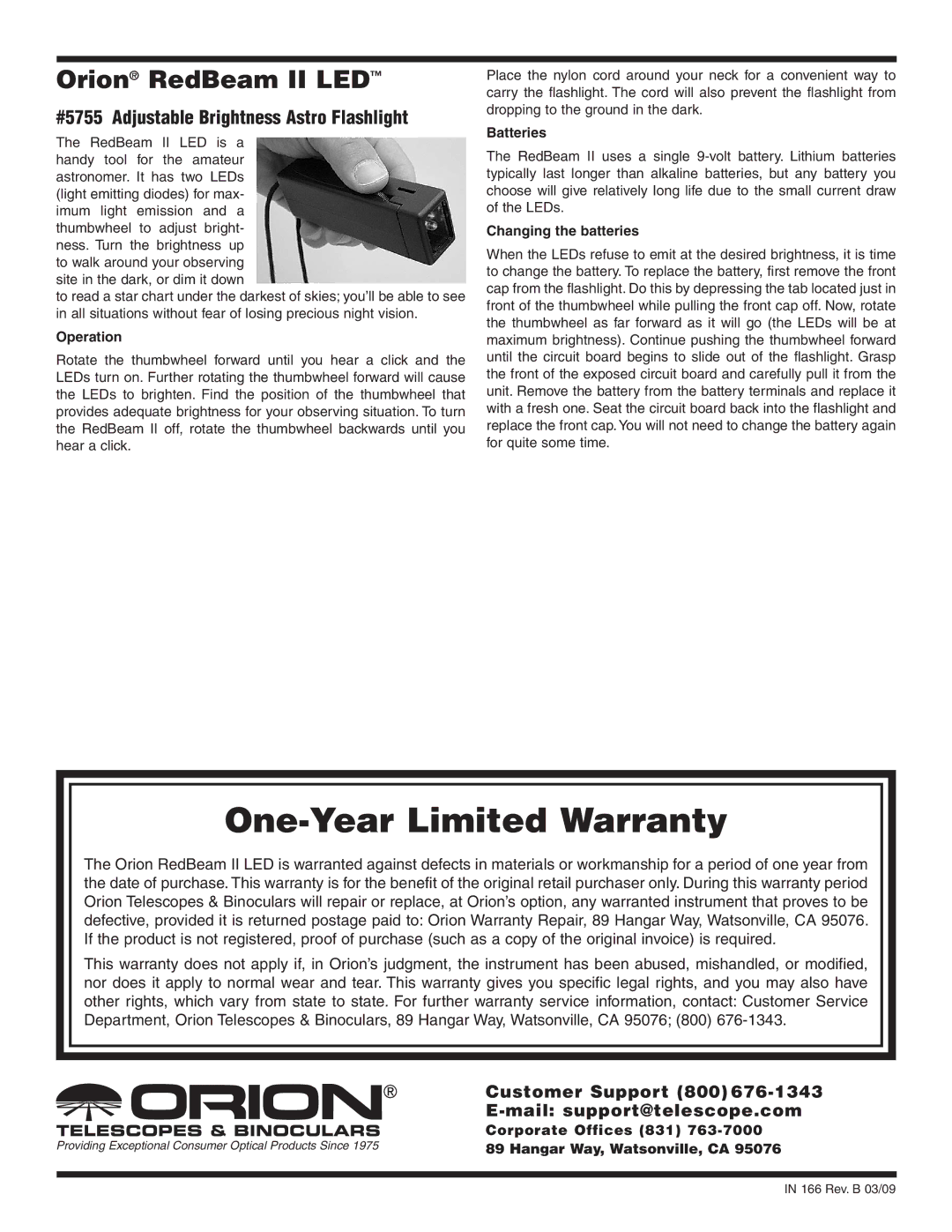

Orion® RedBeam II LED™
#5755 Adjustable Brightness Astro Flashlight
The RedBeam II LED is a handy tool for the amateur astronomer. It has two LEDs (light emitting diodes) for max- imum light emission and a thumbwheel to adjust bright- ness. Turn the brightness up to walk around your observing site in the dark, or dim it down
to read a star chart under the darkest of skies; you’ll be able to see in all situations without fear of losing precious night vision.
Operation
Rotate the thumbwheel forward until you hear a click and the LEDs turn on. Further rotating the thumbwheel forward will cause the LEDs to brighten. Find the position of the thumbwheel that provides adequate brightness for your observing situation. To turn the RedBeam II off, rotate the thumbwheel backwards until you hear a click.
Place the nylon cord around your neck for a convenient way to carry the flashlight. The cord will also prevent the flashlight from dropping to the ground in the dark.
Batteries
The RedBeam II uses a single
Changing the batteries
When the LEDs refuse to emit at the desired brightness, it is time to change the battery. To replace the battery, first remove the front cap from the flashlight. Do this by depressing the tab located just in front of the thumbwheel while pulling the front cap off. Now, rotate the thumbwheel as far forward as it will go (the LEDs will be at maximum brightness). Continue pushing the thumbwheel forward until the circuit board begins to slide out of the flashlight. Grasp the front of the exposed circuit board and carefully pull it from the unit. Remove the battery from the battery terminals and replace it with a fresh one. Seat the circuit board back into the flashlight and replace the front cap. You will not need to change the battery again for quite some time.
One-Year Limited Warranty
The Orion RedBeam II LED is warranted against defects in materials or workmanship for a period of one year from the date of purchase. This warranty is for the benefit of the original retail purchaser only. During this warranty period Orion Telescopes & Binoculars will repair or replace, at Orion’s option, any warranted instrument that proves to be defective, provided it is returned postage paid to: Orion Warranty Repair, 89 Hangar Way, Watsonville, CA 95076. If the product is not registered, proof of purchase (such as a copy of the original invoice) is required.
This warranty does not apply if, in Orion’s judgment, the instrument has been abused, mishandled, or modified, nor does it apply to normal wear and tear. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. For further warranty service information, contact: Customer Service Department, Orion Telescopes & Binoculars, 89 Hangar Way, Watsonville, CA 95076; (800)
Customer Support (800) 676-1343
|
| Corporate Offices (831) |
|
| |
Providing Exceptional Consumer Optical Products Since 1975 | 89 Hangar Way, Watsonville, CA 95076 | |
IN 166 Rev. B 03/09
