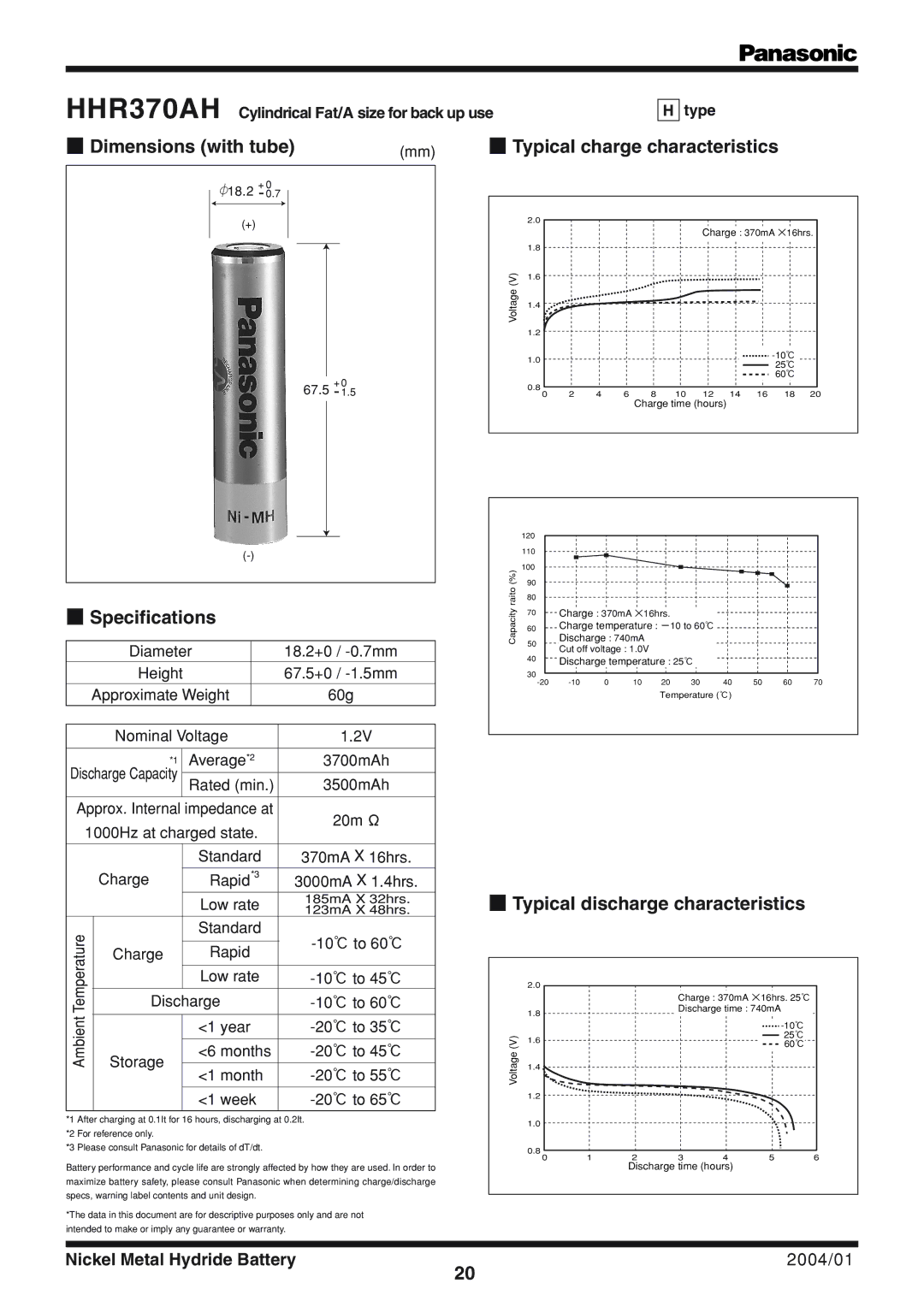

Image 1
HHR370AH Cylindrical Fat/A size for back up use

HHR370AH Cylindrical Fat/A size for back up use

H type

■ Dimensions (with tube)

(mm)

■ Typical charge characteristics

+ 0

18.2-0.7

(+)

+ 0

67.5 -1.5

(-)

Specifications





Diameter



18.2+0 / -0.7mm





Height





67.5+0 / -1.5mm



Approximate Weight



60g















Nominal Voltage

1.2V













*1

Average*2

3700mAh

Discharge Capacity







Rated (min.)

3500mAh















Approx. Internal impedance at

20m Ω



1000Hz at charged state.





















Standard

370mA X 16hrs.















Charge

Rapid*3

3000mA X 1.4hrs.



















Low rate

185mA X 32hrs.







123mA X 48hrs.

Temperature





Standard

-10to 60











Charge

Rapid

















Low rate

-10to 45



Discharge

-10to 60

Ambient













<1 year

-20to 35



Storage

<6 months

-20to 45











<1 month

-20to 55























<1 week

-20to 65

*1 After charging at 0.1It for 16 hours, discharging at 0.2It. *2 For reference only.

*3 Please consult Panasonic for details of dT/dt.

Battery performance and cycle life are strongly affected by how they are used. In order to maximize battery safety, please consult Panasonic when determining charge/discharge specs, warning label contents and unit design.

*The data in this document are for descriptive purposes only and are not intended to make or imply any guarantee or warranty.



2.0



































Charge : 370mA ×16hrs.



1.8





















(V)

1.6





















Voltage

1.4























1.2























1.0

















-10





















25













































60





0.8

2

4

6

8

10

12

14

16

18

20



0

Charge time (hours)



120





















110



















(%)

100



















90



















raito

80







































Capacity

70

Charge : 370mA ×16hrs.











60

Charge temperature : 10 to 60









50

Discharge : 740mA















Cut off voltage : 1.0V































40

Discharge temperature : 25











30





















-20

-10

0

10

20

30

40

50

60

70











Temperature ()







Typical discharge characteristics



2.0





















Charge : 370mA ×16hrs. 25





1.8





Discharge time : 740mA





























-10



(V)

1.6









25











60



Voltage

1.4





























1.2















1.0















0.8

1

2

3

4

5

6



0

Discharge time (hours)

Nickel Metal Hydride Battery

2004/01
