S P E C F I L E

Cable cover

ET-PCE2000

Description

This cable cover is to be used with home cinema projectors to hide connection cables.

Specifications
Dimensions (W x H x D):	460	x 130 x 150 mm
	(18-1/8˝ x 5-1/8˝ x 5-29/32˝)
Weight:	650	g (1.4 lbs)

Weights and dimensions shown are approximate. Specifications subject to change without notice.

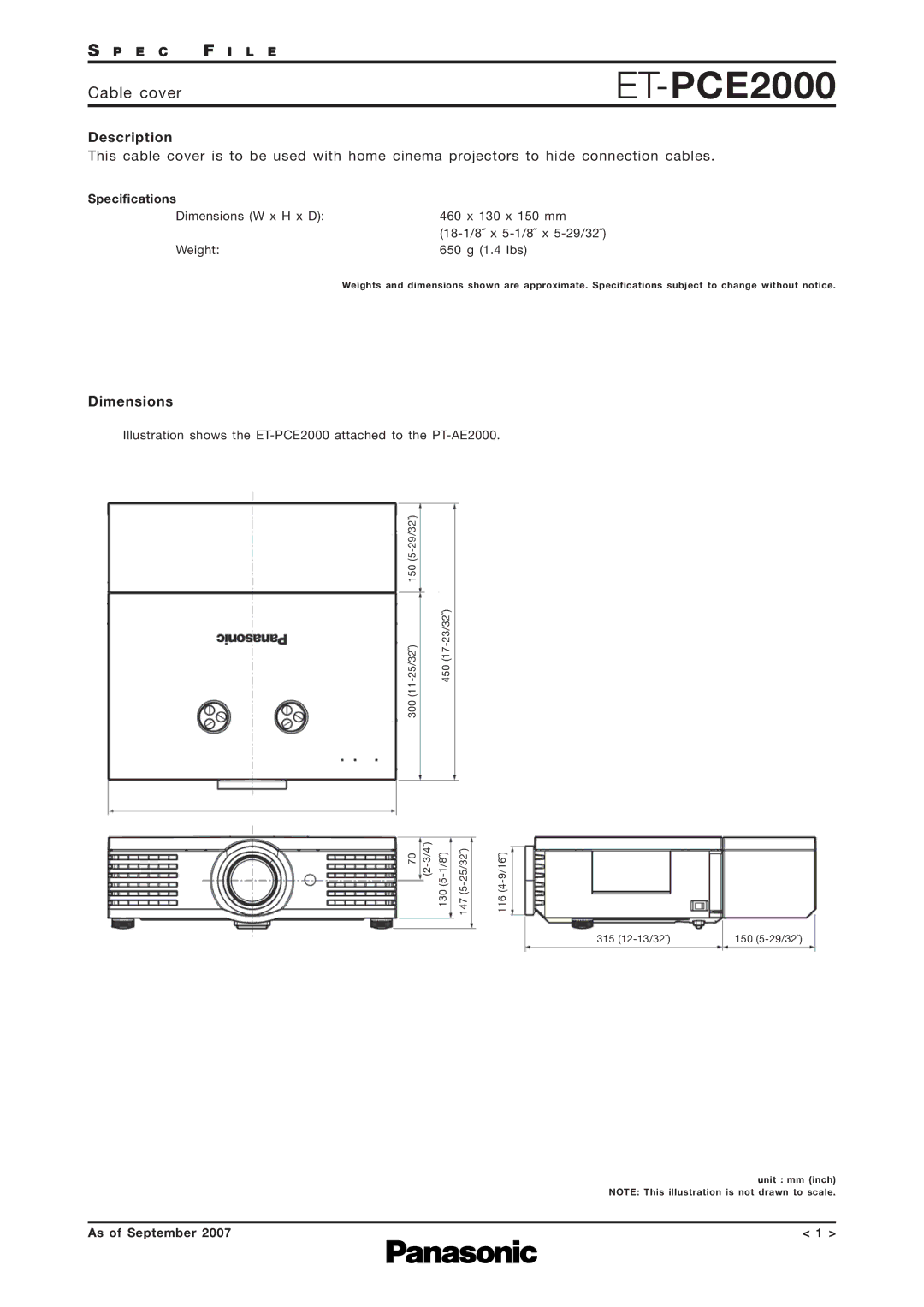

Dimensions

Illustration shows the ET-PCE2000 attached to the PT-AE2000.

150 (5-29/32˝)
(11-25/32˝)	450 (17-23/32˝)
300

70 (2-3/4˝) 130 (5-1/8˝) 147 (5-25/32˝) 116 (4-9/16˝)

315 (12-13/32˝) 150 (5-29/32˝)

unit : mm (inch)

NOTE: This illustration is not drawn to scale.

As of September 2007 < 1 >
