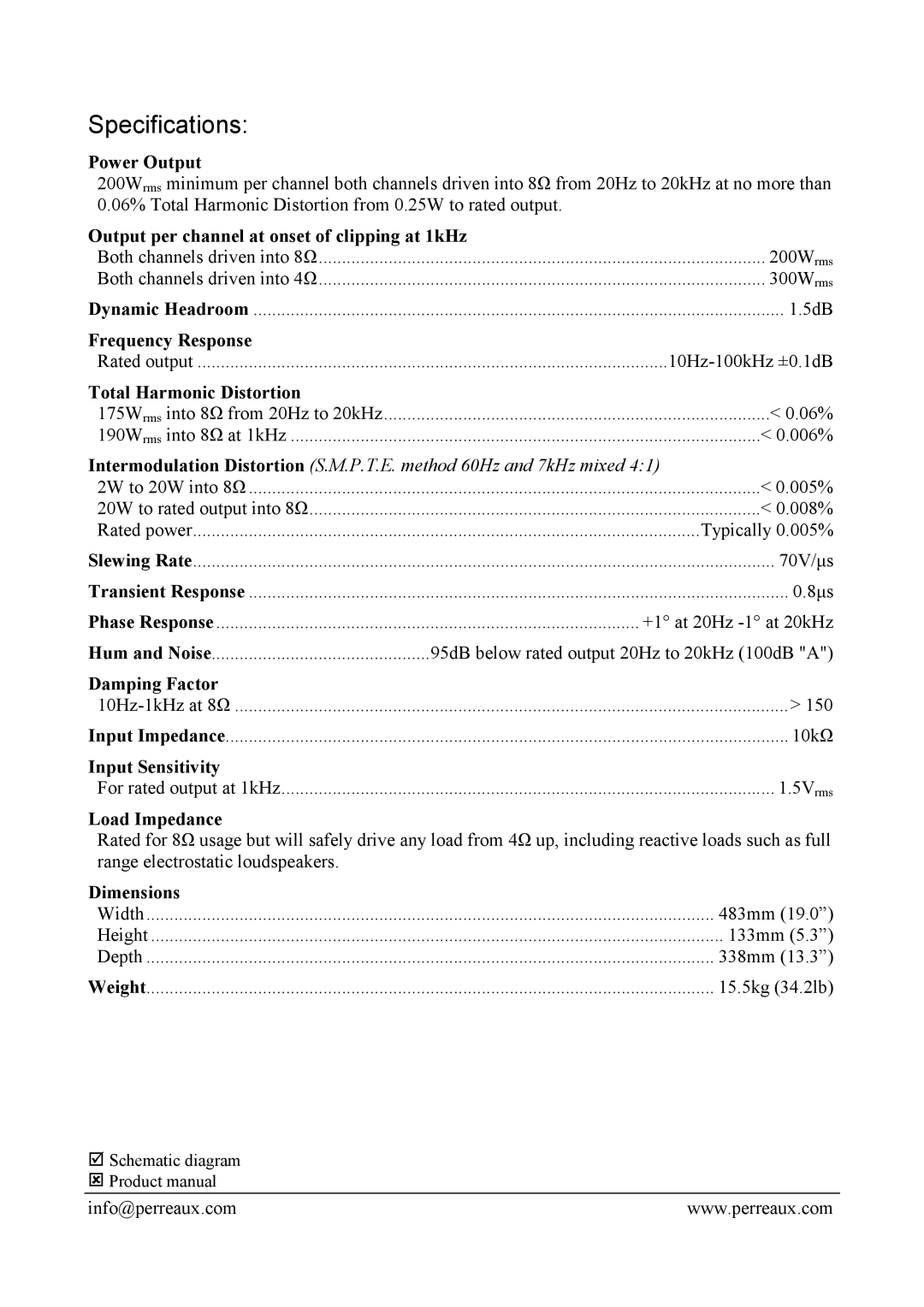

Specifications:
Power Output
200Wrms minimum per channel both channels driven into 8Ω from 20Hz to 20kHz at no more than 0.06% Total Harmonic Distortion from 0.25W to rated output.
Output per channel at onset of clipping at 1kHz
Both channels driven into 8Ω | 200Wrms |
Both channels driven into 4Ω | 300Wrms |
Dynamic Headroom | 1.5dB |
Frequency Response |
|
Rated output | |
Total Harmonic Distortion |
|
175Wrms into 8Ω from 20Hz to 20kHz | < 0.06% |
190Wrms into 8Ω at 1kHz | < 0.006% |
Intermodulation Distortion (S.M.P.T.E. method 60Hz and 7kHz mixed 4:1) | |
2W to 20W into 8Ω | < 0.005% |
20W to rated output into 8Ω | < 0.008% |
Rated power | Typically 0.005% |
Slewing Rate | 70V/μs |
Transient Response | 0.8μs |
Phase Response | +1° at 20Hz |
Hum and Noise | 95dB below rated output 20Hz to 20kHz (100dB "A") |
Damping Factor |
|
> 150 | |
Input Impedance | 10kΩ |
Input Sensitivity |
|
For rated output at 1kHz | 1.5Vrms |
Load Impedance
Rated for 8Ω usage but will safely drive any load from 4Ω up, including reactive loads such as full range electrostatic loudspeakers.
Dimensions |
|
Width | 483mm (19.0”) |
Height | 133mm (5.3”) |
Depth | 338mm (13.3”) |
Weight | 15.5kg (34.2lb) |
