Electrical Data (Subject to change without notice)

Warnings,Cautions and Operating Instructions

“WARNING:Theselampscan causeserious skinburn and eye inflammation

fromshort waveultravioletradiationif outer envelopeof the lampis brokenor

punctured.Donot usewhere peoplewill remain formore than a fewminutes unless

adequateshieldingor othersafety precautionsareused. Certainlamps thatwill

automaticallyextinguishwhenthe outerenvelopeis broken or puncturedare

commerciallyavailable." This lampcomplies withFDA radiationperformance

standard21CFR subchapterJ. (USA:21CFR1040.30Canada:SOR/DORS/80-381)

Ifthe outer bulb is brokenor punctured,turnoff at once and replace

thelamp to avoid possibleinjury from hazardousshort waveultraviolet

radiation.Donot scratch the outer bulbor subject it to pressureas this

couldcause the outerbulb to crack or shatter.Apartial vacuum in the

outerbulb may causeglass to fly if the envelopeis struck.

WARNING:Thearc-tubeof metal halidelamps are designedto operate under

highpressureand at temperaturesup to 1000ºC and can unexpectedlyrupturedue

tointernal or external factors such as a ballast failure or misapplication. If the

arc-tuberuptures for anyreason,the outer bulb maybreak and piecesof extremely

hotglass might bedischarged into thesurrounding environment.Ifsuch a rupture

wereto happen,THERE IS A RISKOFPERSONAL INJURY,PROPERTY

DAMAGE,BURNSANDFIRE.

Certainlamps thatwill retain allthe glass particlesshould innerarc-tube

ruptureoccurare commerciallyavailablefrom PhilipsLighting Company.

RELAMPFIXTURESATOR BEFORETHE END OF RATEDLIFE.

Allowinglampsto operate untilthey fail is notadvised and mayincrease

thepossibilityof inner arc tuberupture.

CAUTION:TO REDUCETHE RISK OFPERSONALINJURY,PROPERTY

DAMAGE,BURNSANDFIRE RESULTINGFROMANARC-TUBE RUPTURETHE

FOLLOWINGLAMPOPERATINGINSTRUCTIONSMUSTBE FOLLOWED.

Lamp Operating Instructions:

1)Turn off lampsat least once a week forat least 15 minutes in systemswhich are

operatingon a continuousbasis (24 hours/day-7days/week).FAILURETOTURN

OFFLAMPS FORTHE MINIMUM RECOMMENDEDTIME MAYINCREASE

THEPOSSIBILITY OF AN INNER ARC-TUBE RUPTURE.

2)RELAMP FIXTURESAT OR BEFORETHE END OF RATEDLIFE.Allowing

lampsto operate until theyfail is not advised and mayincrease the possibility

ofinner arc tube rupture.

3)Use only in an enclosedfixture capable of withstandingparticles of glasshaving

temperaturesup to 1000ºC.

4)Before lamp installation/replacement,shutpower offand allow lamp and fixture

tocool to avoid electricalshock and potentialburn hazards.

5)Use only auxiliary equipmentmeeting Philips and/orANSI standards.Use within

voltagelimits recommendedby ballast manufacturer.

A.Operate lamponly within specified limitsof operation.

B.For total supplyload refer to ballastmanufacturers electricaldata.

C.All Pulse Start mogulbased lamps requirea socket rated to withstand

a4000 volt pulse.

6)Periodically inspectthe outer envelope.Replace any lampsthat show scratches,

cracksor damage.

7)If a lamp bulb support is used,be sure to insulatethe support electricallyto

avoidpossible decompositionof the bulb glass.

8)Protect lamp base,socket and wiringagainst moisture,corrosive atmospheres

andexcessive heat.

9)Time should be allowedfor lamps to stabilize incolor when turned on for the

firsttime.This may requireseveral hours of operation,with morethan one start.

Lampcolor is also subjectto change under conditionsof excess vibration or

shock,and colorappearance may vary betweenindividual lamps.

10)Lamps may require2 to 4 minutes to re-lightif there is a power interruption.

11)Take carein handling and disposingof lamps. If anarc tube is broken,avoid skin

contactwith any of the contentsor fragments.

12)Use this lamp only in fixturesthat contain a PulseStart metal halide ballastand

arespecifically designedfor use with Pulse Startmetal halide lamps.

LampWatts(Nominal)..........................400

LampOperating Voltage (rms)(Nominal)3...........135

InitialLamp Voltage Range(rms)6..................120–150

LampOperating Current(Amps) (rms) (Nominal) . . . . 3.25

LampCurrent Crest Factor (Maximum). . . . . . . . . . . . 1.6

Warm-upTime to 90% of Output . . . . . . . . . . . . . . . . . 10 Minutes

Re-strikeTime for Hot Lamp . . . . . . . . . . . . . . . . . . . . . < 5 Minutes

BallastType...................................ANSIM155/M135/E

BallastOpen CircuitVoltage(Minimum) .. . . . . . . . . . . 254V Min.

PulsePeak Volts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000 Min., 4000 Max.

PulseWidth @ 90% Peak (micro sec) . . . . . . . . . . . . . . 1.3

PulseRepetition Rate(Minimum). . . . . . . . . . . . . . . . . . 1x/1 /2cycle

MinimumOperating Temperature. . . . . . . . . . . . . . . . . . -30ºC

AdvanceTransformer Ballast Number . . . . . . . . . . . . . . 71A6092

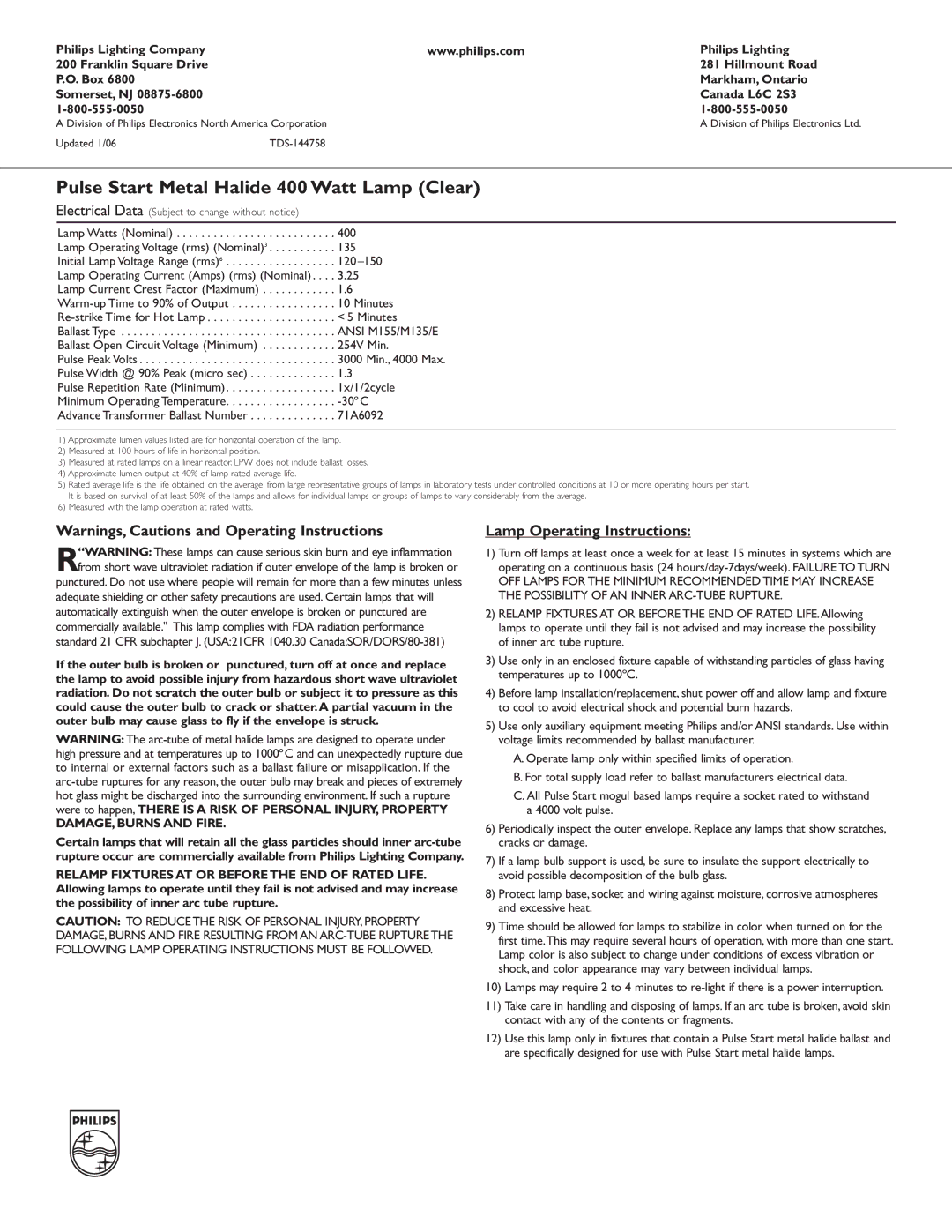

Pulse Start Metal Halide 400Watt Lamp (Clear)

1)Approximate lumen values listed are for horizontal operation of the lamp.

2)Measured at 100 hours of life in horizontal position.

3)Measured at rated lamps on a linear reactor. LPW does not include ballast losses.

4)Approximate lumen output at 40%oflamp ratedaveragelife .

5)Rated average life is the life obtained, on the average,from lar ge representativegroups of lamps in labor atory tests under controlled conditions at 10 or more operating hours per start.

Itis based on survival of at least 50% of the lamps and allows for individual lamps or groups of lamps to vary consider ablyfrom the average .

6)Measured with the lamp operation at rated watts.
