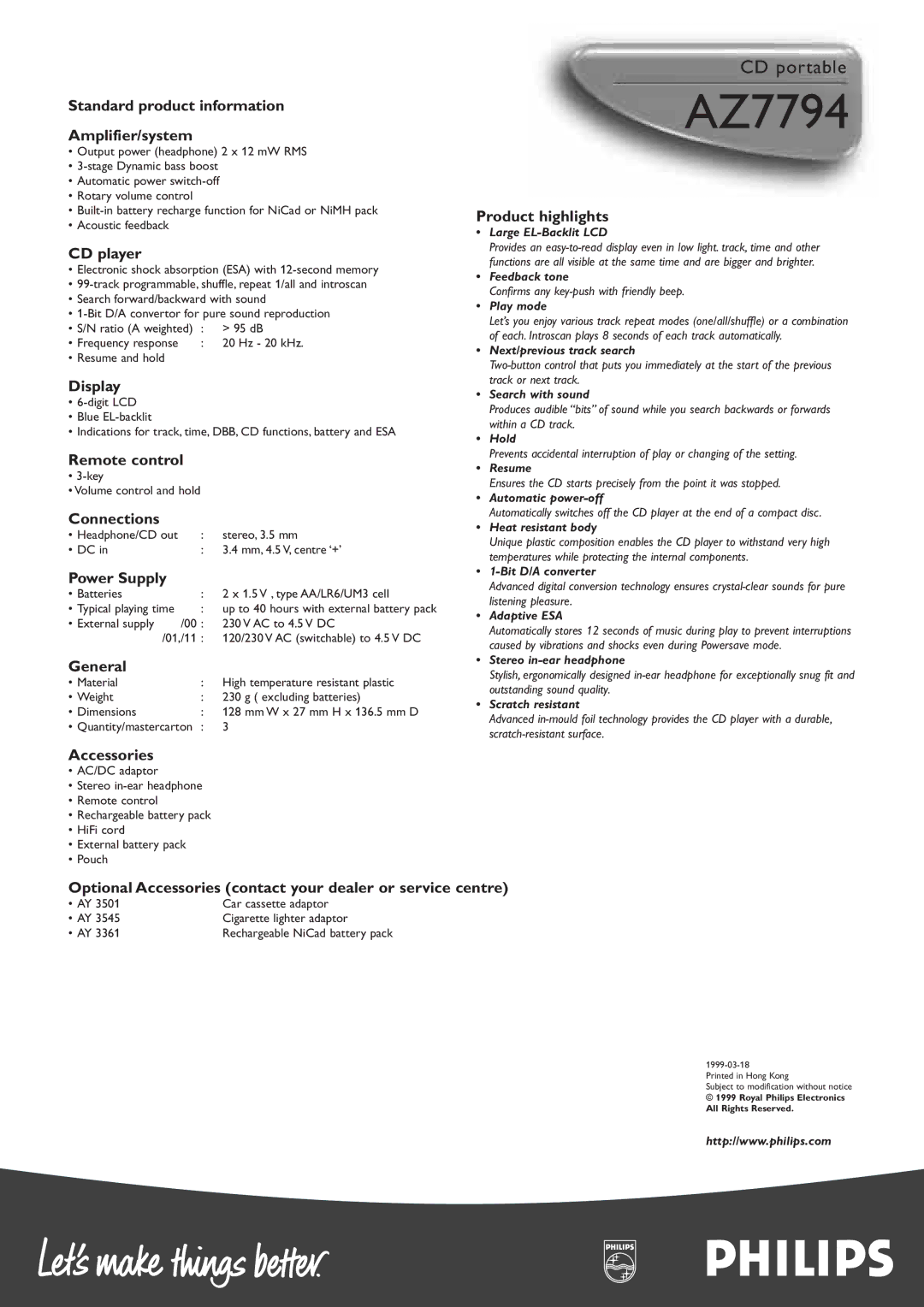

Standard product information

Amplifier/system

•Output power (headphone) 2 x 12 mW RMS

•3-stage Dynamic bass boost

•Automatic power switch-off

•Rotary volume control

•Built-in battery recharge function for NiCad or NiMH pack

•Acoustic feedback

CD player

•Electronic shock absorption (ESA) with 12-second memory

•99-track programmable, shuffle, repeat 1/all and introscan

•Search forward/backward with sound

•1-Bit D/A convertor for pure sound reproduction

•S/N ratio (A weighted) : > 95 dB

• Frequency response

: 20 Hz - 20 kHz.

• Resume and hold



Display

•6-digit LCD

•Blue EL-backlit

•Indications for track, time, DBB, CD functions, battery and ESA

Remote control

• 3-key

• Volume control and hold

Connections

• Headphone/CD out

:

stereo, 3.5 mm

• DC in

:

3.4 mm, 4.5 V, centre ‘+’

Power Supply

• Batteries

:

2 x 1.5 V , type AA/LR6/UM3 cell

• Typical playing time

:

up to 40 hours with external battery pack

• External supply

/00 :

230 V AC to 4.5 V DC

/01,/11 :

120/230 V AC (switchable) to 4.5 V DC

General

• Material

:

High temperature resistant plastic

• Weight

:

230 g ( excluding batteries)

• Dimensions

:

128 mm W x 27 mm H x 136.5 mm D

• Quantity/mastercarton

:

3

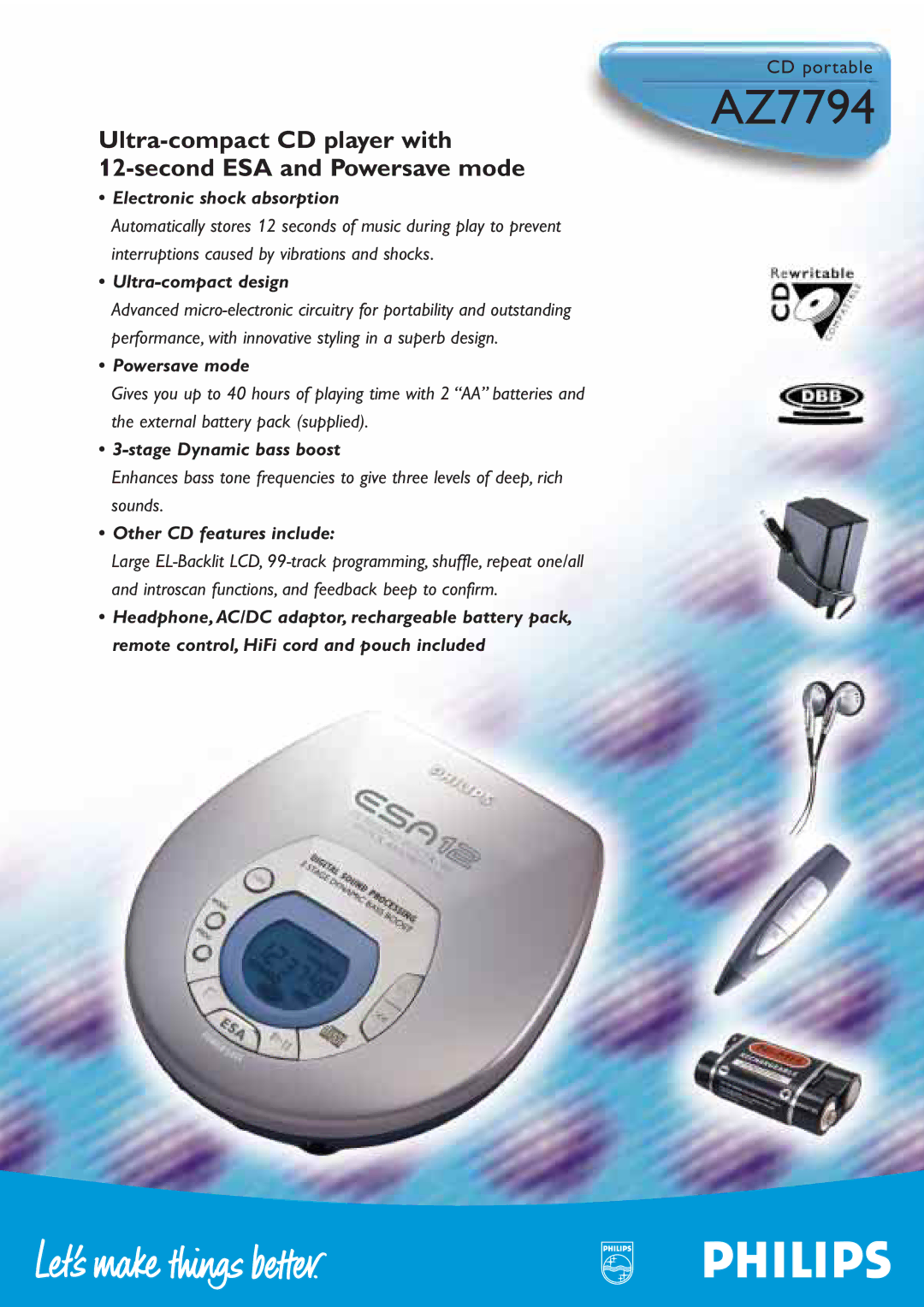

CD portable

AZ7794

Product highlights

•Large EL-Backlit LCD

Provides an easy-to-read display even in low light. track, time and other functions are all visible at the same time and are bigger and brighter.

•Feedback tone

Confirms any key-push with friendly beep.

•Play mode

Let’s you enjoy various track repeat modes (one/all/shuffle) or a combination of each. Introscan plays 8 seconds of each track automatically.

•Next/previous track search

Two-button control that puts you immediately at the start of the previous track or next track.

•Search with sound

Produces audible “bits” of sound while you search backwards or forwards within a CD track.

•Hold

Prevents accidental interruption of play or changing of the setting.

•Resume

Ensures the CD starts precisely from the point it was stopped.

•Automatic power-off

Automatically switches off the CD player at the end of a compact disc.

•Heat resistant body

Unique plastic composition enables the CD player to withstand very high temperatures while protecting the internal components.

•1-Bit D/A converter

Advanced digital conversion technology ensures crystal-clear sounds for pure listening pleasure.

•Adaptive ESA

Automatically stores 12 seconds of music during play to prevent interruptions caused by vibrations and shocks even during Powersave mode.

•Stereo in-ear headphone

Stylish, ergonomically designed in-ear headphone for exceptionally snug fit and outstanding sound quality.

•Scratch resistant

Advanced in-mould foil technology provides the CD player with a durable, scratch-resistant surface.

Accessories

•AC/DC adaptor

•Stereo in-ear headphone

•Remote control

•Rechargeable battery pack

•HiFi cord

•External battery pack

•Pouch

Optional Accessories (contact your dealer or service centre)

• AY 3501

Car cassette adaptor

• AY 3545

Cigarette lighter adaptor

• AY 3361

Rechargeable NiCad battery pack

1999-03-18

Printed in Hong Kong

Subject to modification without notice

© 1999 Royal Philips Electronics

All Rights Reserved.

http://www.philips.com
