Connect the supplied FM antenna to the FM ANTENNA jacks. For better reception connect an outdoor FM antenna (not supplied).

Adjust the antennas for optimal reception.

Hook Up

Guide

Use this simple and quick way to listen to your favorite CD, cassette, or radio station.

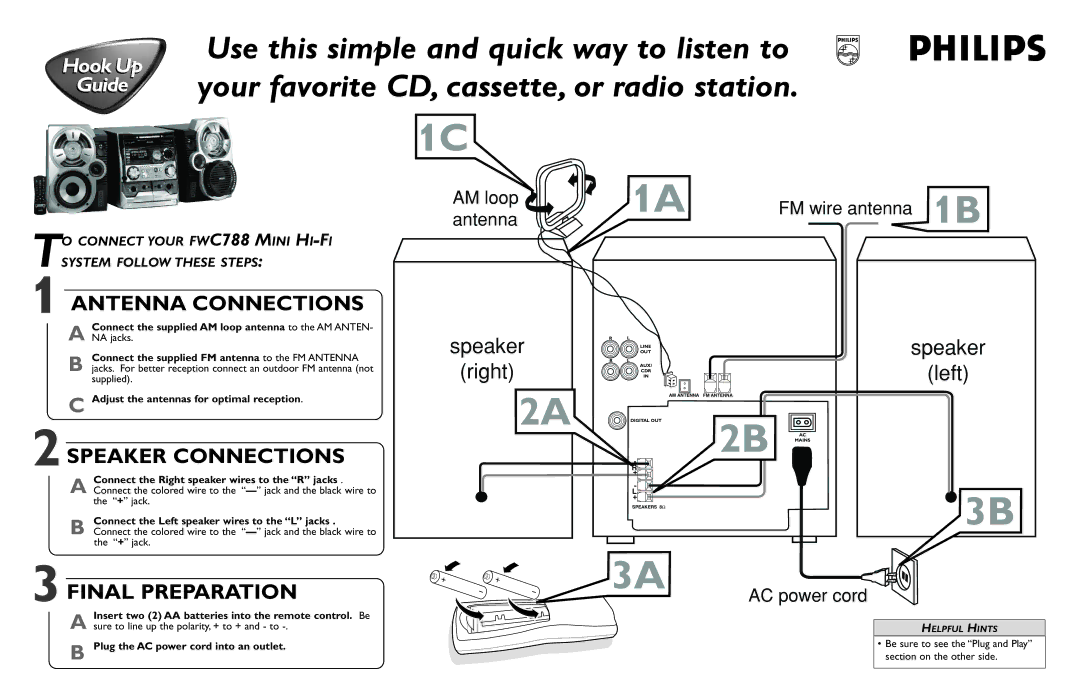

TO CONNECT YOUR FWC788 MINI HI-FI

SYSTEM FOLLOW THESE STEPS:

1 ANTENNA CONNECTIONS

Connect the supplied AM loop antenna to the AM ANTEN- A NA jacks.

B

C

2 SPEAKER CONNECTIONS

Connect the Right speaker wires to the “R” jacks .

A Connect the colored wire to the “—” jack and the black wire to the “+” jack.

Connect the Left speaker wires to the “L” jacks .

B Connect the colored wire to the “—” jack and the black wire to the “+” jack.

3 FINAL PREPARATION

Insert two (2) AA batteries into the remote control. Be A sure to line up the polarity, + to + and - to -.

1C

AM loop	1A	FM wire antenna 1B
antenna

speaker	R	L	speaker
		OUT
		LINE
(right)	R	L	(left)
		AUX/
		CDR
		IN
2A		AM ANTENNA FM ANTENNA
		DIGITAL OUT
		2B	AC
			MAINS
		-
		R
		+
		-
		L	3B
		+
		SPEAKERS 8Ω

3A

AC power cord

HELPFUL HINTS

B Plug the AC power cord into an outlet.

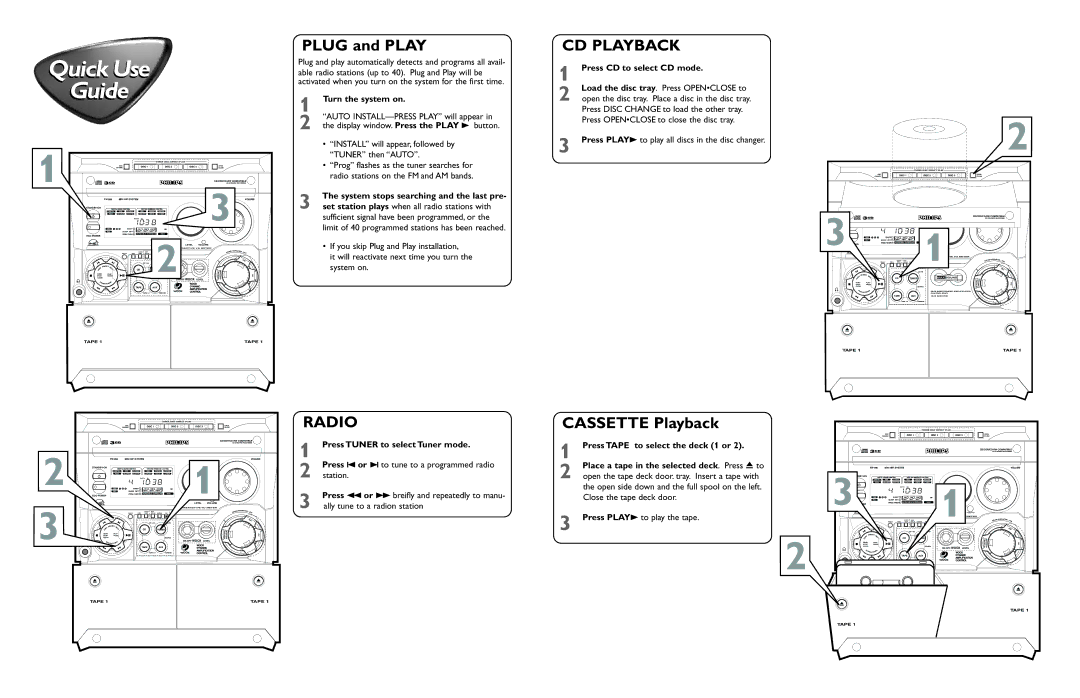

•Be sure to see the “Plug and Play” section on the other side.
