Connections
• Headphone/ line out
• DC in
Power supply
• Batteries
• Battery playing time
• Battery playing time

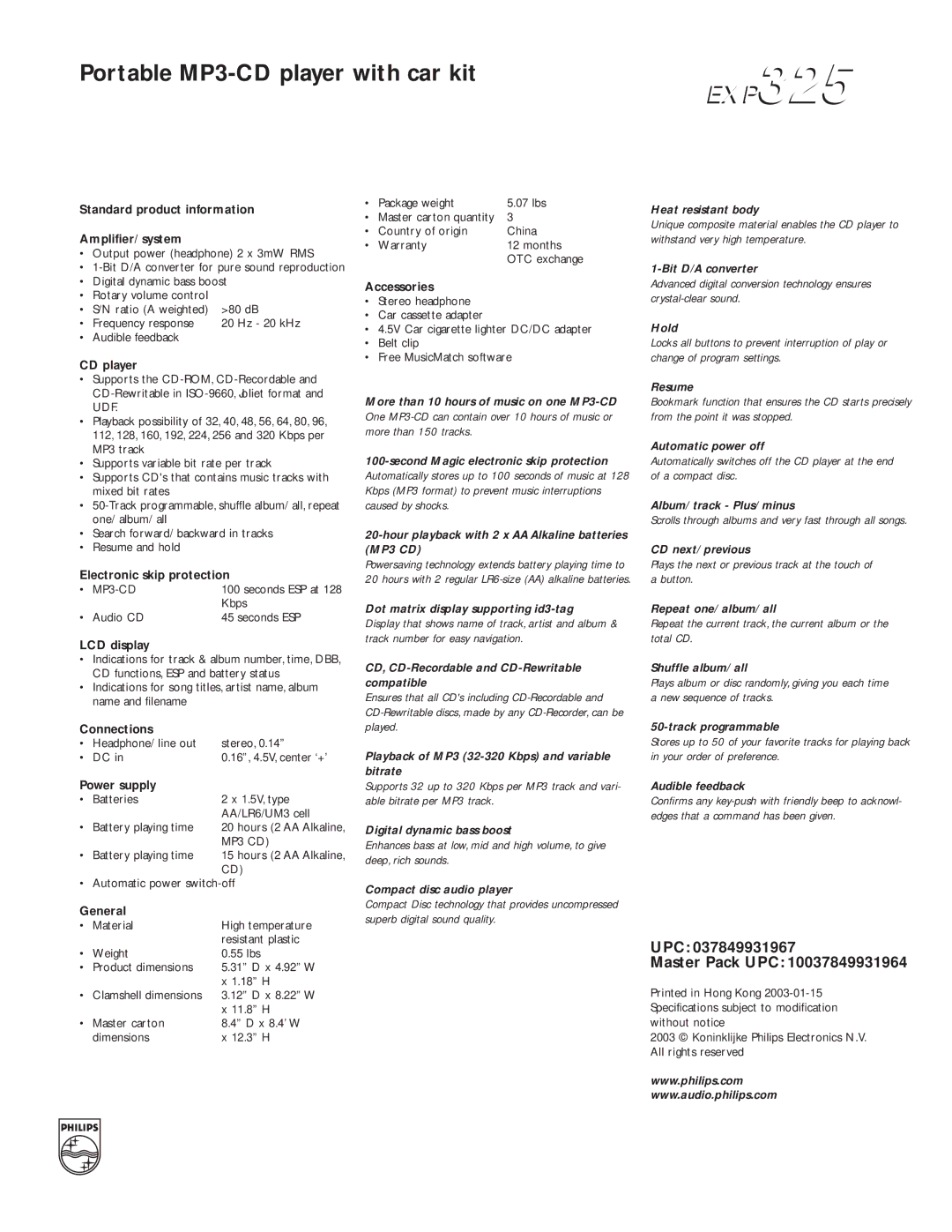

Portable MP3-CD player with car kit

EXP325

Standard product information

Amplifier/ system

Output power (headphone) 2 x 3mW RMS

1-Bit D/A converter for pure sound reproduction

Digital dynamic bass boost

Rotary volume control

S/N ratio (A weighted)

>80 dB

Frequency response

20 Hz - 20 kHz

Audible feedback



CD player

Supports the CD-ROM, CD-Recordable and CD-Rewritable in ISO-9660, Joliet format and UDF.

Playback possibility of 32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256 and 320 Kbps per MP3 track

Supports variable bit rate per track

Supports CD's that contains music tracks with mixed bit rates

50-Track programmable, shuffle album/ all, repeat one/ album/ all

Search forward/ backward in tracks

Resume and hold

Electronic skip protection

MP3-CD

100 seconds ESP at 128





Kbps

Audio CD

45 seconds ESP

LCD display

Indications for track & album number, time, DBB, CD functions, ESP and battery status

Indications for song titles, artist name, album name and filename

stereo, 0.14”

0.16”, 4.5V, center ‘+’

2 x 1.5V, type AA/LR6/UM3 cell

20 hours (2 AA Alkaline, MP3 CD)

15 hours (2 AA Alkaline, CD)

• Automatic power switch-off

General



Material

High temperature





resistant plastic

Weight

0.55 lbs

Product dimensions

5.31” D x 4.92” W





x 1.18” H

Clamshell dimensions

3.12” D x 8.22” W





x 11.8” H

Master carton

8.4” D x 8.4’ W



dimensions

x 12.3” H

Package weight

5.07 lbs

Master carton quantity

3

Country of origin

China

Warranty

12 months





OTC exchange

Accessories

Stereo headphone

Car cassette adapter

4.5V Car cigarette lighter DC/DC adapter

Belt clip

Free MusicMatch software

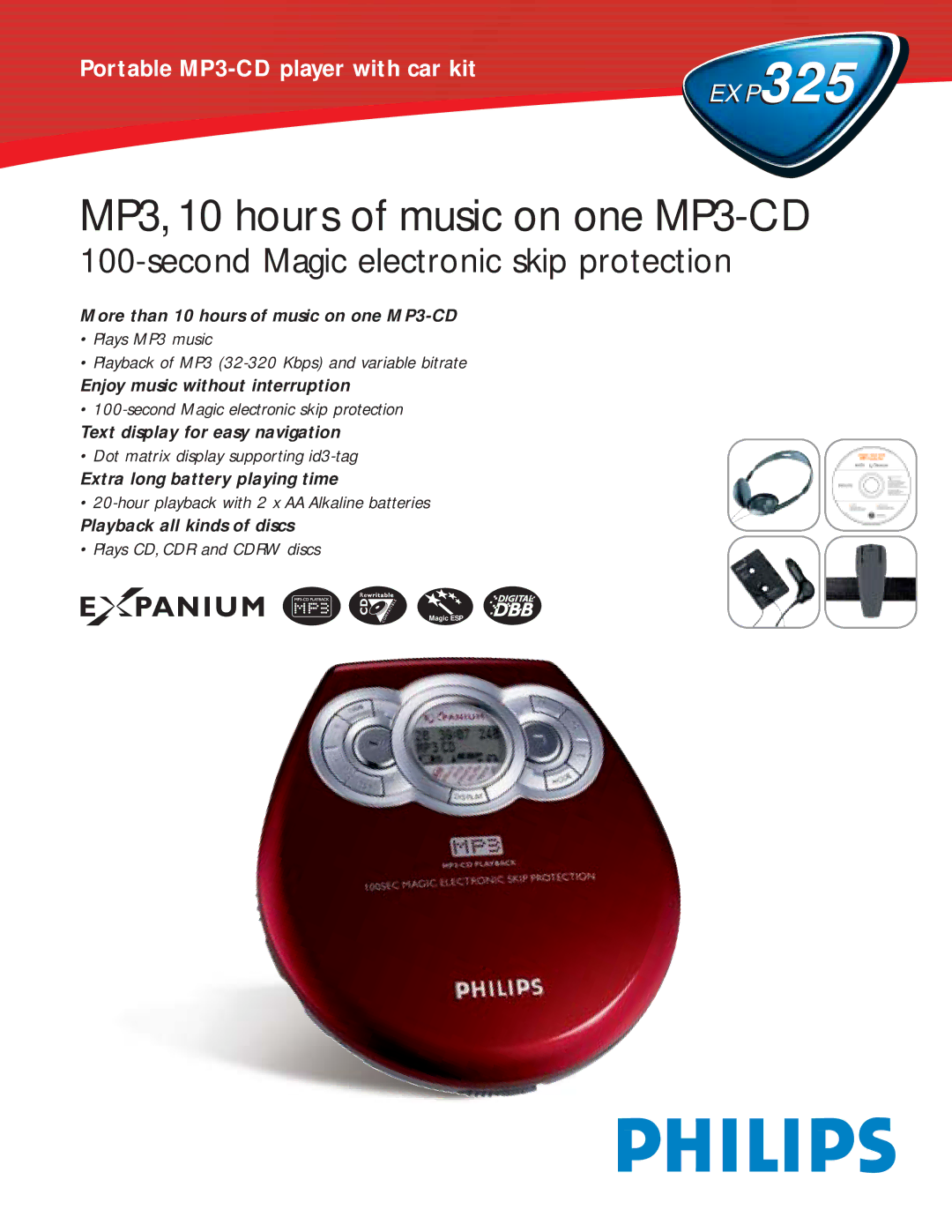

More than 10 hours of music on one MP3-CD One MP3-CD can contain over 10 hours of music or more than 150 tracks.

100-second Magic electronic skip protection Automatically stores up to 100 seconds of music at 128 Kbps (MP3 format) to prevent music interruptions caused by shocks.

20-hour playback with 2 x AA Alkaline batteries (MP3 CD)

Powersaving technology extends battery playing time to 20 hours with 2 regular LR6-size (AA) alkaline batteries.

Dot matrix display supporting id3-tag

Display that shows name of track, artist and album & track number for easy navigation.

CD, CD-Recordable and CD-Rewritable compatible

Ensures that all CD's including CD-Recordable and CD-Rewritable discs, made by any CD-Recorder, can be played.

Playback of MP3 (32-320 Kbps) and variable bitrate

Supports 32 up to 320 Kbps per MP3 track and vari- able bitrate per MP3 track.

Digital dynamic bass boost

Enhances bass at low, mid and high volume, to give deep, rich sounds.

Compact disc audio player

Compact Disc technology that provides uncompressed superb digital sound quality.

Heat resistant body

Unique composite material enables the CD player to withstand very high temperature.

1-Bit D/A converter

Advanced digital conversion technology ensures crystal-clear sound.

Hold

Locks all buttons to prevent interruption of play or change of program settings.

Resume

Bookmark function that ensures the CD starts precisely from the point it was stopped.

Automatic power off

Automatically switches off the CD player at the end of a compact disc.

Album/ track - Plus/ minus

Scrolls through albums and very fast through all songs.

CD next/ previous

Plays the next or previous track at the touch of a button.

Repeat one/ album/ all

Repeat the current track, the current album or the total CD.

Shuffle album/ all

Plays album or disc randomly, giving you each time a new sequence of tracks.

50-track programmable

Stores up to 50 of your favorite tracks for playing back in your order of preference.

Audible feedback

Confirms any key-push with friendly beep to acknowl- edges that a command has been given.

UPC: 037849931967

Master Pack UPC: 10037849931964

Printed in Hong Kong 2003-01-15 Specifications subject to modification without notice

2003 © Koninklijke Philips Electronics N.V. All rights reserved

www.philips.com

www.audio.philips.com
