DVD home theater system

HTS3571/98

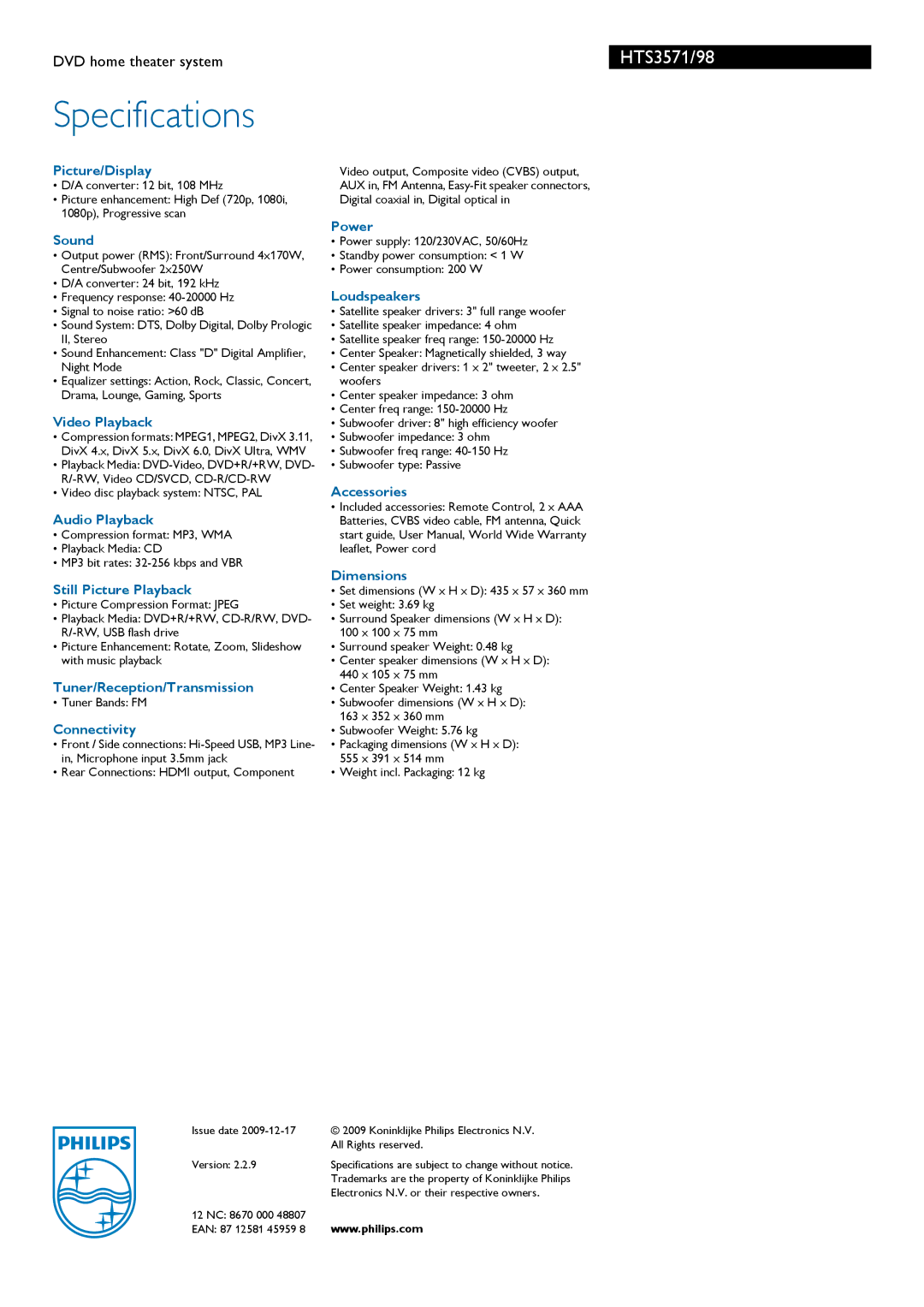

Specifications

Picture/Display

D/A converter: 12 bit, 108 MHz

Picture enhancement: High Def (720p, 1080i, 1080p), Progressive scan

Sound

Output power (RMS): Front/Surround 4x170W, Centre/Subwoofer 2x250W

D/A converter: 24 bit, 192 kHz

Frequency response: 40-20000 Hz

Signal to noise ratio: >60 dB

Sound System: DTS, Dolby Digital, Dolby Prologic II, Stereo

Sound Enhancement: Class "D" Digital Amplifier, Night Mode

Equalizer settings: Action, Rock, Classic, Concert, Drama, Lounge, Gaming, Sports

Video Playback

Compression formats: MPEG1, MPEG2, DivX 3.11, DivX 4.x, DivX 5.x, DivX 6.0, DivX Ultra, WMV

Playback Media: DVD-Video, DVD+R/+RW, DVD- R/-RW, Video CD/SVCD, CD-R/CD-RW

Video disc playback system: NTSC, PAL

Audio Playback

Compression format: MP3, WMA

Playback Media: CD

MP3 bit rates: 32-256 kbps and VBR

Still Picture Playback

Picture Compression Format: JPEG

Playback Media: DVD+R/+RW, CD-R/RW, DVD- R/-RW, USB flash drive

Picture Enhancement: Rotate, Zoom, Slideshow with music playback

Tuner/Reception/Transmission

• Tuner Bands: FM

Connectivity

Front / Side connections: Hi-Speed USB, MP3 Line- in, Microphone input 3.5mm jack

Rear Connections: HDMI output, Component

Issue date 2009-12-17

Version: 2.2.9

12 NC: 8670 000 48807

EAN: 87 12581 45959 8

Video output, Composite video (CVBS) output, AUX in, FM Antenna, Easy-Fit speaker connectors, Digital coaxial in, Digital optical in

Power

Power supply: 120/230VAC, 50/60Hz

Standby power consumption: < 1 W

Power consumption: 200 W

Loudspeakers

Satellite speaker drivers: 3" full range woofer

Satellite speaker impedance: 4 ohm

Satellite speaker freq range: 150-20000 Hz

Center Speaker: Magnetically shielded, 3 way

Center speaker drivers: 1 x 2" tweeter, 2 x 2.5" woofers

Center speaker impedance: 3 ohm

Center freq range: 150-20000 Hz

Subwoofer driver: 8" high efficiency woofer

Subwoofer impedance: 3 ohm

Subwoofer freq range: 40-150 Hz

Subwoofer type: Passive

Accessories

Included accessories: Remote Control, 2 x AAA Batteries, CVBS video cable, FM antenna, Quick start guide, User Manual, World Wide Warranty leaflet, Power cord

Dimensions

Set dimensions (W x H x D): 435 x 57 x 360 mm

Set weight: 3.69 kg

Surround Speaker dimensions (W x H x D): 100 x 100 x 75 mm

Surround speaker Weight: 0.48 kg

Center speaker dimensions (W x H x D): 440 x 105 x 75 mm

Center Speaker Weight: 1.43 kg

Subwoofer dimensions (W x H x D): 163 x 352 x 360 mm

Subwoofer Weight: 5.76 kg

Packaging dimensions (W x H x D): 555 x 391 x 514 mm

Weight incl. Packaging: 12 kg

© 2009 Koninklijke Philips Electronics N.V. All Rights reserved.

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

Page 3
Image 3
Philips HTS3571/98 manual Specifications

HTS3571/98, HTS3571 specifications

The Philips HTS3571/98 is an impressive home theater system designed to deliver an immersive audio-video experience for movie enthusiasts and music lovers alike. This model integrates cutting-edge technology and a sleek design, making it a versatile addition to any entertainment setup.

One of the main features of the HTS3571/98 is its powerful 5.1-channel surround sound system. Featuring five satellite speakers and a subwoofer, this configuration allows for a rich and dynamic audio experience. The subwoofer is designed to produce deep bass, enhancing the overall sound quality and bringing movies and music to life. The surround sound capability creates an enveloping audio environment, making viewers feel as though they are part of the action.

Another significant characteristic of the HTS3571 is its compatibility with various audio formats. It supports formats such as MP3, WMA, and AAC, allowing users to enjoy their favorite music from different sources. Additionally, the system comes equipped with a DVD player, which is capable of playing an array of discs, including DVDs, CDs, and even JPEG images. This versatility ensures that the HTS3571 can cater to all types of media consumption needs.

Connectivity is another highlight of the Philips HTS3571/98. The system provides multiple input options, including HDMI, composite video, and audio inputs, making it easy to connect to TVs, gaming consoles, and other devices. The HDMI output supports high-definition video and audio transmission, ensuring that users enjoy superior quality when watching movies or playing games.

The HTS3571 also features USB connectivity, allowing users to plug in USB drives to play their favorite music directly from the device. This functionality adds convenience, as users can easily switch between stored media and traditional disc playback without hassle.

Moreover, the system integrates Philips’ EasyLink technology, which uses HDMI-CEC to allow control of multiple devices through a single remote. This feature streamlines the user experience, reducing clutter and simplifying operation.

In summary, the Philips HTS3571/98 home theater system stands out with its 5.1-channel surround sound, compatibility with various media formats, versatile connectivity options, and user-friendly technology. Whether watching a film or enjoying music, this system offers a complete home entertainment solution that maximizes audio-visual enjoyment for all users.
