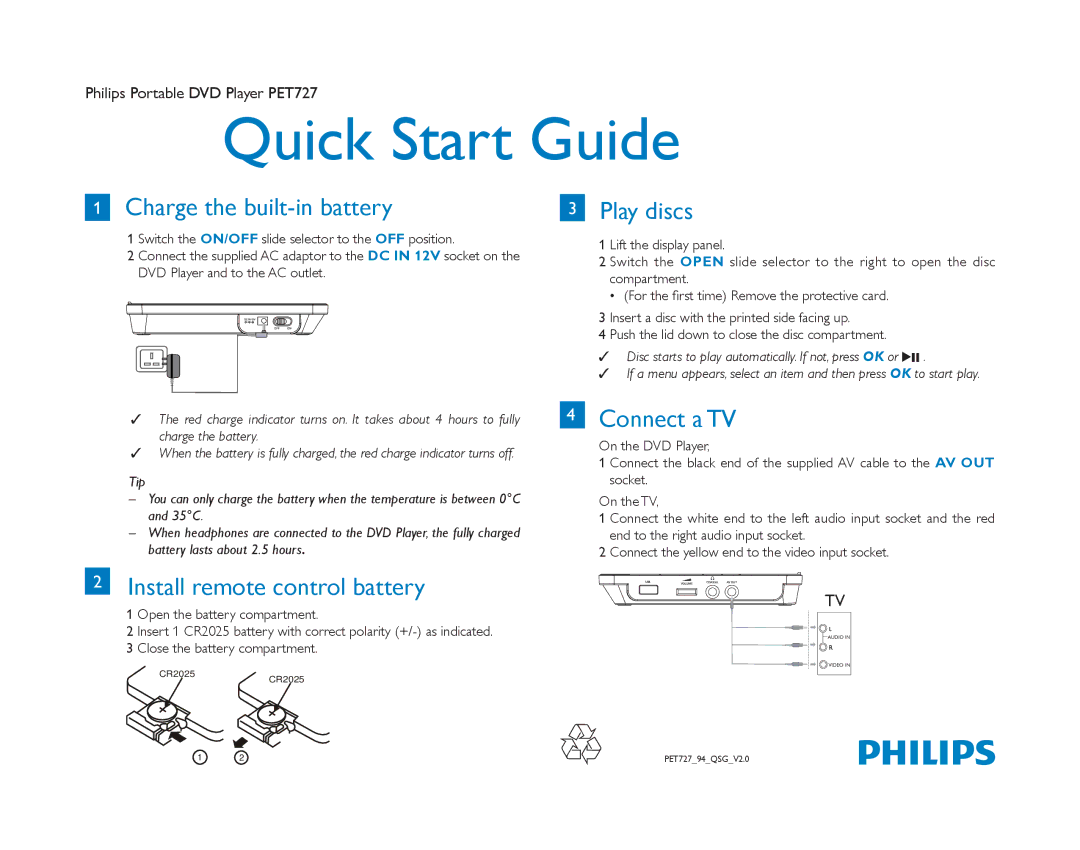

Philips Portable DVD Player PET727

Quick Start Guide

1

Charge the built-in battery

3

Play discs

1 Switch the ON/OFF slide selector to the OFF position.

2 Connect the supplied AC adaptor to the DC IN 12V socket on the DVD Player and to the AC outlet.

The red charge indicator turns on. It takes about 4 hours to fully charge the battery.

When the battery is fully charged, the red charge indicator turns off.

Tip

You can only charge the battery when the temperature is between 0°C and 35°C.

When headphones are connected to the DVD Player, the fully charged battery lasts about 2.5 hours.

4

1 Lift the display panel.

2 Switch the OPEN slide selector to the right to open the disc compartment.

• (For the first time) Remove the protective card.

3 Insert a disc with the printed side facing up.

4 Push the lid down to close the disc compartment.

Disc starts to play automatically. If not, press OK or 2; .

If a menu appears, select an item and then press OK to start play.

Connect a TV

On the DVD Player,

1 Connect the black end of the supplied AV cable to the AV OUT socket.

On the TV,

1 Connect the white end to the left audio input socket and the red end to the right audio input socket.

2 Connect the yellow end to the video input socket.

2

Install remote control battery

1 Open the battery compartment.

2 Insert 1 CR2025 battery with correct polarity (+/-) as indicated. 3 Close the battery compartment.

CR2025CR2025

TV

AUDIO IN

VIDEO IN

1

2

PET727_94_QSG_V2.0
