Philips SA2845/02 manual Specifications, Highlights

Flash audio player

4GB*

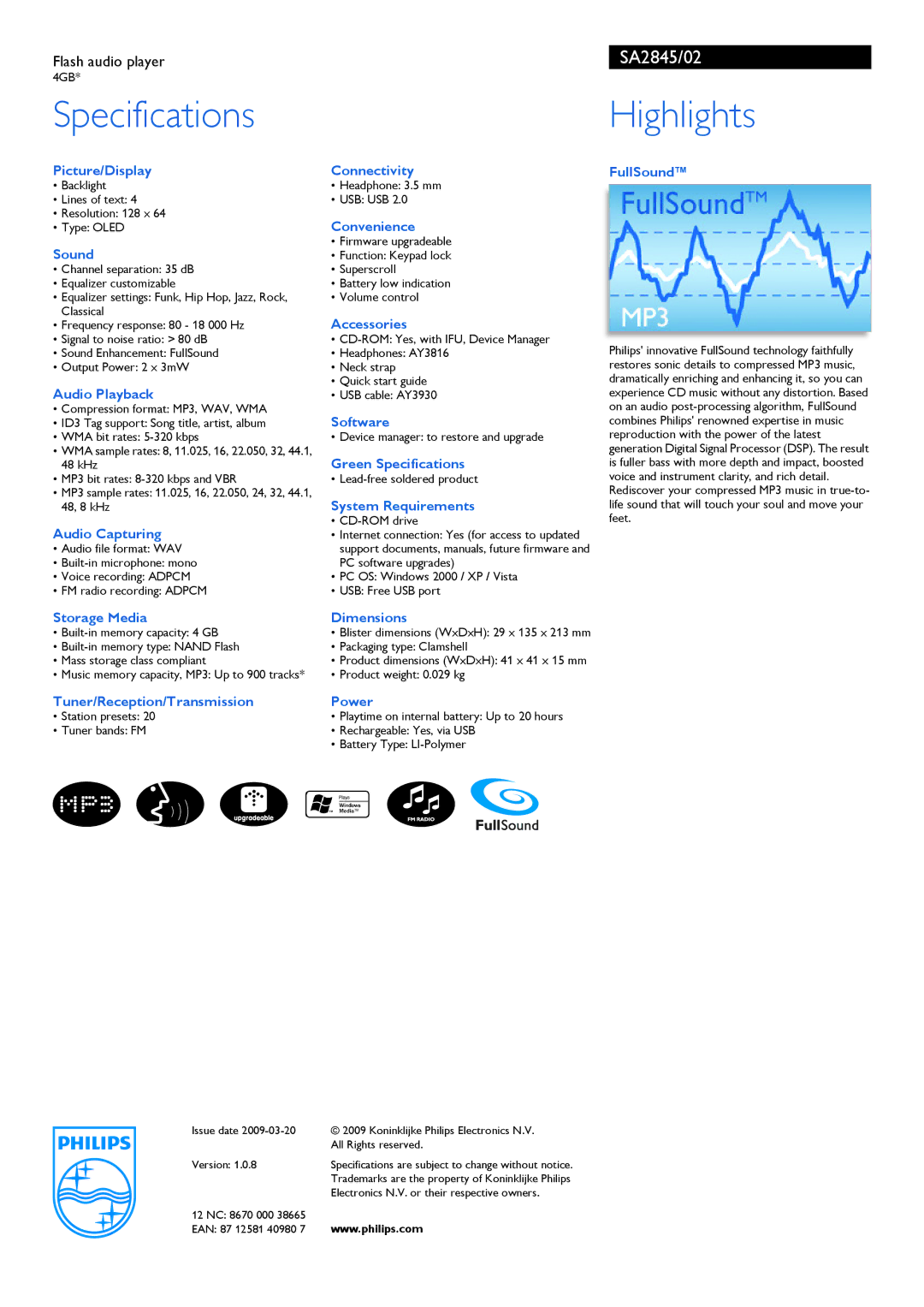

Specifications

Picture/Display

•Backlight

•Lines of text: 4

•Resolution: 128 x 64

•Type: OLED

Sound

•Channel separation: 35 dB

•Equalizer customizable

•Equalizer settings: Funk, Hip Hop, Jazz, Rock, Classical

•Frequency response: 80 - 18 000 Hz

•Signal to noise ratio: > 80 dB

•Sound Enhancement: FullSound

•Output Power: 2 x 3mW

Audio Playback

•Compression format: MP3, WAV, WMA

•ID3 Tag support: Song title, artist, album

•WMA bit rates: 5-320 kbps

•WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1, 48 kHz

•MP3 bit rates: 8-320 kbps and VBR

•MP3 sample rates: 11.025, 16, 22.050, 24, 32, 44.1, 48, 8 kHz

Audio Capturing

•Audio file format: WAV

•Built-in microphone: mono

•Voice recording: ADPCM

•FM radio recording: ADPCM

Connectivity

•Headphone: 3.5 mm

•USB: USB 2.0

Convenience

•Firmware upgradeable

•Function: Keypad lock

•Superscroll

•Battery low indication

•Volume control

Accessories

•CD-ROM: Yes, with IFU, Device Manager

•Headphones: AY3816

•Neck strap

•Quick start guide

•USB cable: AY3930

Software

• Device manager: to restore and upgrade

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

•Internet connection: Yes (for access to updated support documents, manuals, future firmware and PC software upgrades)

•PC OS: Windows 2000 / XP / Vista

•USB: Free USB port

SA2845/02

Highlights

FullSound™

Philips' innovative FullSound technology faithfully restores sonic details to compressed MP3 music, dramatically enriching and enhancing it, so you can experience CD music without any distortion. Based on an audio post-processing algorithm, FullSound combines Philips' renowned expertise in music reproduction with the power of the latest generation Digital Signal Processor (DSP). The result is fuller bass with more depth and impact, boosted voice and instrument clarity, and rich detail. Rediscover your compressed MP3 music in true-to- life sound that will touch your soul and move your feet.

Storage Media	Dimensions
• Built-in memory capacity: 4 GB	• Blister dimensions (WxDxH): 29 x 135 x 213 mm
• Built-in memory type: NAND Flash	• Packaging type: Clamshell
• Mass storage class compliant	• Product dimensions (WxDxH): 41 x 41 x 15 mm
• Music memory capacity, MP3: Up to 900 tracks*	• Product weight: 0.029 kg

Tuner/Reception/Transmission	Power
• Station presets: 20	• Playtime on internal battery: Up to 20 hours
• Tuner bands: FM	• Rechargeable: Yes, via USB
	• Battery Type: LI-Polymer

Issue date 2009-03-20	© 2009 Koninklijke Philips Electronics N.V.
	All Rights reserved.
Version: 1.0.8	Specifications are subject to change without notice.
	Trademarks are the property of Koninklijke Philips
	Electronics N.V. or their respective owners.
12 NC: 8670 000 38665	www.philips.com
EAN: 87 12581 40980 7
