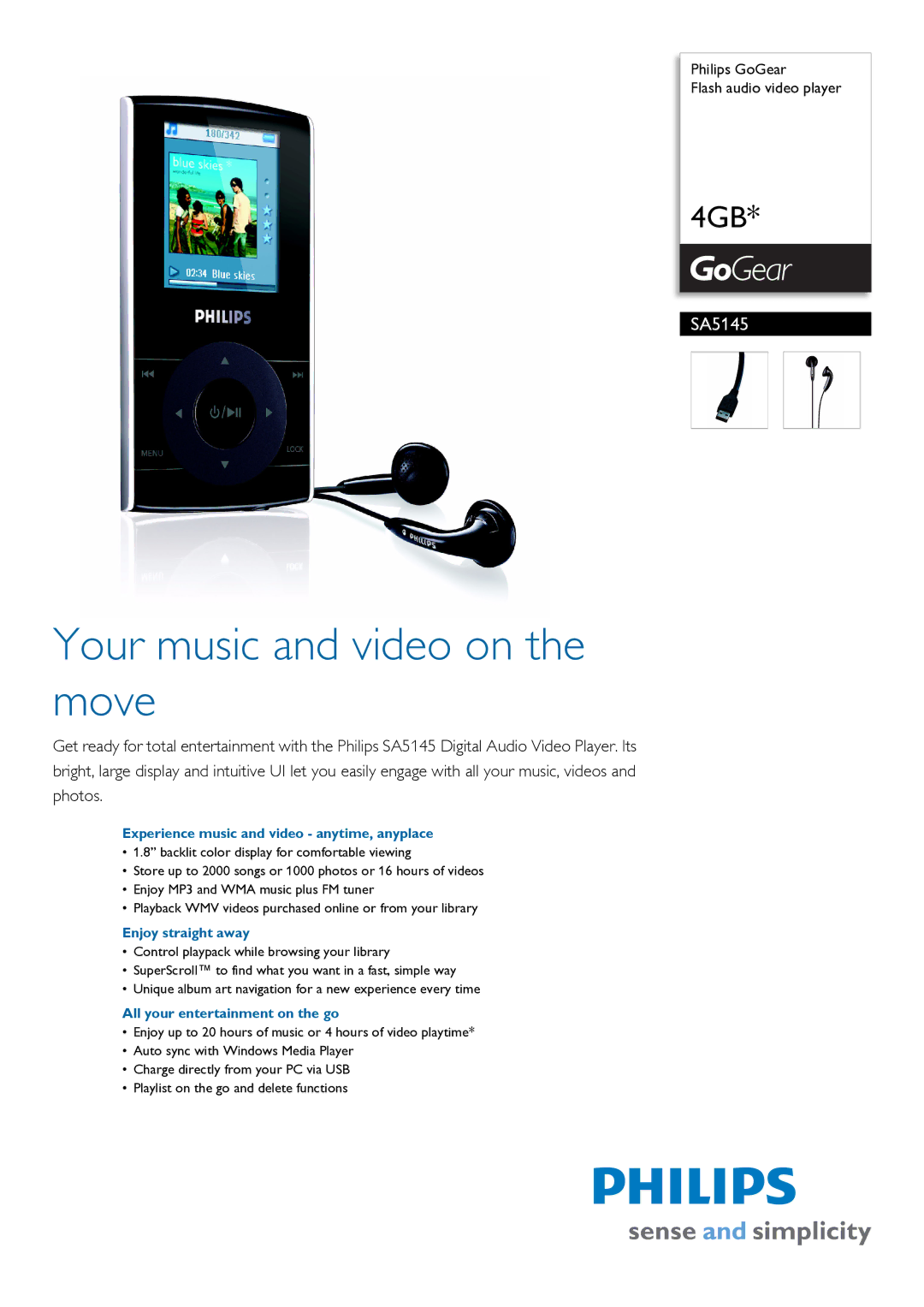

Philips SA5145/97 Picture/Display, Sound, Audio Playback, Video Playback, Still Picture Playback

Flash audio video player

4GB*

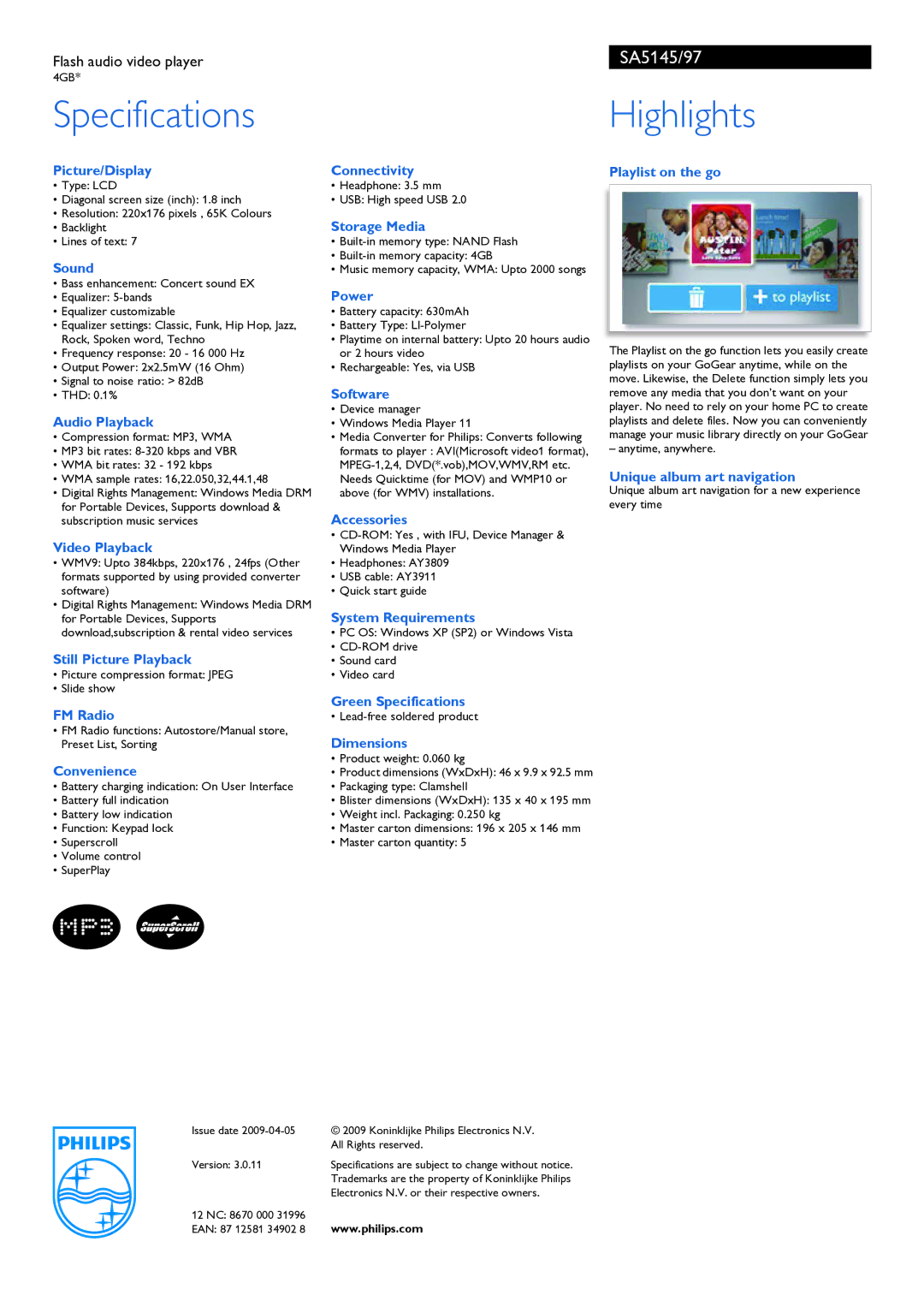

Specifications

SA5145/97

Highlights

Picture/Display

•Type: LCD

•Diagonal screen size (inch): 1.8 inch

•Resolution: 220x176 pixels , 65K Colours

•Backlight

•Lines of text: 7

Sound

•Bass enhancement: Concert sound EX

•Equalizer: 5-bands

•Equalizer customizable

•Equalizer settings: Classic, Funk, Hip Hop, Jazz, Rock, Spoken word, Techno

•Frequency response: 20 - 16 000 Hz

•Output Power: 2x2.5mW (16 Ohm)

•Signal to noise ratio: > 82dB

•THD: 0.1%

Audio Playback

•Compression format: MP3, WMA

•MP3 bit rates: 8-320 kbps and VBR

•WMA bit rates: 32 - 192 kbps

•WMA sample rates: 16,22.050,32,44.1,48

•Digital Rights Management: Windows Media DRM for Portable Devices, Supports download & subscription music services

Video Playback

•WMV9: Upto 384kbps, 220x176 , 24fps (Other formats supported by using provided converter software)

•Digital Rights Management: Windows Media DRM for Portable Devices, Supports download,subscription & rental video services

Still Picture Playback

•Picture compression format: JPEG

•Slide show

FM Radio

•FM Radio functions: Autostore/Manual store, Preset List, Sorting

Convenience

•Battery charging indication: On User Interface

•Battery full indication

•Battery low indication

•Function: Keypad lock

•Superscroll

•Volume control

•SuperPlay

Issue date 2009-04-05

Version: 3.0.11

12 NC: 8670 000 31996

EAN: 87 12581 34902 8

Connectivity

•Headphone: 3.5 mm

•USB: High speed USB 2.0

Storage Media

•Built-in memory type: NAND Flash

•Built-in memory capacity: 4GB

•Music memory capacity, WMA: Upto 2000 songs

Power

•Battery capacity: 630mAh

•Battery Type: LI-Polymer

•Playtime on internal battery: Upto 20 hours audio or 2 hours video

•Rechargeable: Yes, via USB

Software

•Device manager

•Windows Media Player 11

•Media Converter for Philips: Converts following

formats to player : AVI(Microsoft video1 format), MPEG-1,2,4, DVD(*.vob),MOV,WMV,RM etc. Needs Quicktime (for MOV) and WMP10 or above (for WMV) installations.

Accessories

•CD-ROM: Yes , with IFU, Device Manager & Windows Media Player

•Headphones: AY3809

•USB cable: AY3911

•Quick start guide

System Requirements

•PC OS: Windows XP (SP2) or Windows Vista

•CD-ROM drive

•Sound card

•Video card

Green Specifications

• Lead-free soldered product

Dimensions

•Product weight: 0.060 kg

•Product dimensions (WxDxH): 46 x 9.9 x 92.5 mm

•Packaging type: Clamshell

•Blister dimensions (WxDxH): 135 x 40 x 195 mm

•Weight incl. Packaging: 0.250 kg

•Master carton dimensions: 196 x 205 x 146 mm

•Master carton quantity: 5

© 2009 Koninklijke Philips Electronics N.V. All Rights reserved.

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

Playlist on the go

The Playlist on the go function lets you easily create playlists on your GoGear anytime, while on the move. Likewise, the Delete function simply lets you remove any media that you don’t want on your player. No need to rely on your home PC to create playlists and delete files. Now you can conveniently manage your music library directly on your GoGear

– anytime, anywhere.

Unique album art navigation

Unique album art navigation for a new experience every time
