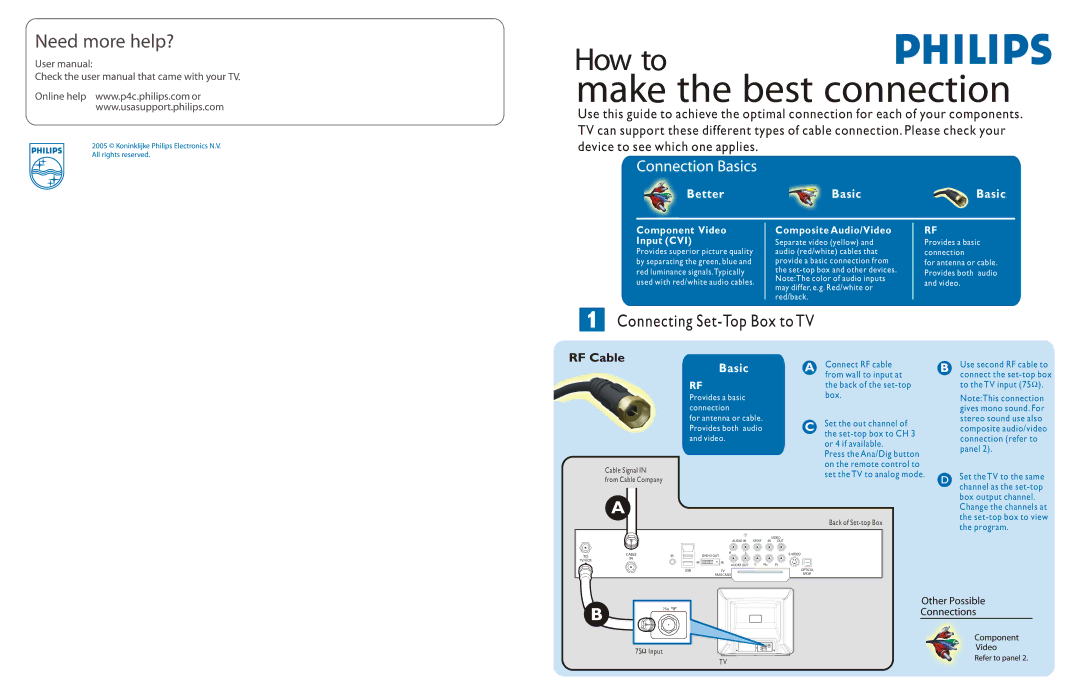

Philips Set-Top Box manual Better

2 Connecting Input Device to TV (eg. DVD player, Digital Recorder,VCR,Video Camera, Games Console)

Component Video Input

TV Jack Panel CompositeAudio/Video

TV Jack Panel

Better

Component Video Input (CVI)

Provides superior picture quality by separating the green, blue and red luminance signals.Typically used with red/white audio cables.

TV Front Jack Panel

TV

A B

Basic

Composite Audio/Video

Separate video (yellow) and audio (red/white) cables that provide a basic connection from the set-top box and other devices.

Note:The color of audio inputs may differ, e.g. Red/white or red/back.

TV

B A

A

Insert Component

B Connect red/white

Video connectors into their corresponding jacks on both DVD player/DVD recorder and TV (sometimes labeled Y, Pb and Pr).

audio cables to the

audio output jacks

on DVD player/DVD

recorder and audio

AV inputs on TV.

			A	Connect the video
				cable (yellow) from the
COMPONENT VIDEOS-VIDEO	VIDEO	AUDIO
YPb				video output on camera
OUT	OUT	OUT
Pr		OR		(or other device)to the
				video input (yellow)
Back of DVD player / Recorder				located on the front of TV.

BConnect audio cables (red/white) from audio

outputs on device to audio inputs (red/white) on the front of TV.

	L	R
VIDEO	AUDIO OUT		S-VIDEO

Video Camera

Video Camera Jack Panel

C

Turn on TV and DVD

D

Insert a pre-recorded

Turn on TV and the

C

player/DVD recorder. Press the SOURCE button on the remote control until CVI appears on TV screen.

DVD into DVD player/ DVD recorder and press PLAY to verify correct connection.

C	C
	device. Press the
	SOURCE button on
	the remote control
	until FRONT appears on
	TV screen.

D

device to verify correct

connection.

Remote	SOURCE Button
Control

,

Note: CVI and AV1 share the same audio channels and can t be used at the same time. If you connect them simultaneously, you can only hear sound coming from CVI signal.

Remote	SOURCE Button	Note: for	,mono devices, connect only white audio cable from
Control
		the device s audio output to white audio input on the front of TV.

OR

Composite Audio/Video

Basic

Composite Audio/Video

Separate video (yellow) and audio (red/white) cables that provide a basic connection from the set-top box and other devices.

Note:The color of audio inputs may differ, e.g. Red/white or red/back.

TV Jack Panel

TV

B A

Back of VCR

AConnect the video cable (yellow) to the

VIDEO AV input on back of TV and the corresponding video output on back

of VCR.

CTurn on the TV and VCR. Press the

SOURCE button on the remote control until AV1 appears on TV screen.

BConnect audio cables (red/white) to audio

AV inputs on back of TV and the corresponding audio outputs (L & R) on back of VCR.

DInsert pre-recorded videotape into VCR

and press PLAY to verify correct connection.

RL

VIDEO S-VIDEO ANT/CABLE

AUDIO OUT OUT OUT OUT

C

Remote	SOURCE Button
Control
