Savi®W710A

MultiSaviDevice® W720AWireless

Headset System

Multi-Device Wireless

Headset System

1 Headset

Customise and charge

1Attach charging cradle to base.

2Plug one end of power supply into power jack on back of the base and other end into working power outlet.

2 Desk phone Connect and call

1Choose desk phone setup A, B or C and connect cables.

A Desk phone (standard)

USE

BDesk phone + HL10 lifter (sold separately) See user guide at plantronics.com/accessories

USE

3 Mobile

Connect and call

1Press down and hold Bluetooth pairing button (4 seconds) on Savi base until indicator LED flashes red and blue.

2Place Bluetooth mobile phone into search mode. Select SAVI 7xx from the list of found devices.

4 Computer

Connect and call

1Connect USB cable.

2Load Plantronics software by visiting plantronics.com/software and click on download button.

3While wearing headset, short press base computer button.

Guide de démarrage rapide

Guía de inicio rápido

LYNSTART

Guia de Início Rápido

Kurzanleitung

Guía de inicio rápido

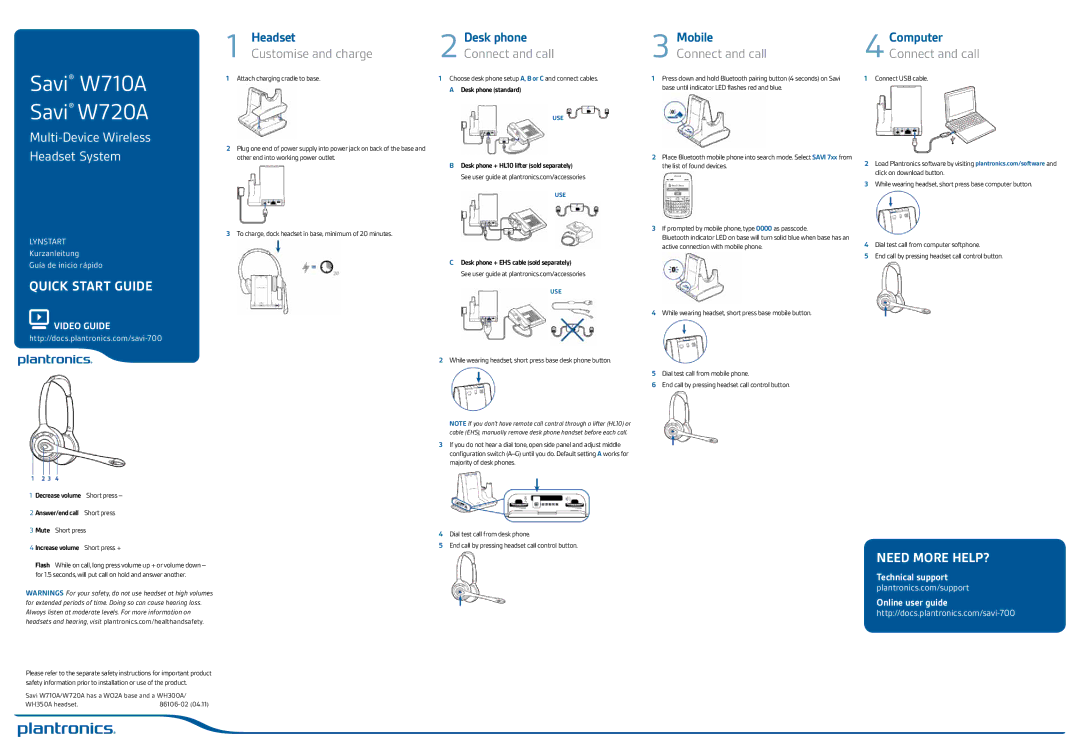

QUICK START GUIDE

quick start guide

VIDEO GUIDE

http://docs.plantronics.com/savi-700

VIDEO GUIDE

http://docs.plantronics.com/savi-700

3To charge, dock headset in base, minimum of 20 minutes.

CDesk phone + EHS cable (sold separately)

See user guide at plantronics.com/accessories

USE

2While wearing headset, short press base desk phone button.

REMARQUENOTE If you don’tIf youhavedon'tremotehave remotecall controlcall contthrolthrougha liftera lifter(HL10)(HL10)or orcablecable(EHS),(EHS),manuallyremovedeskphonehandset beforeeachcall. .

3If you do not hear a dial tone, open side panel and adjust middle configuration switch (A–G) until you do. Default setting A works for majority of desk phones.

3If prompted by mobile phone, type 0000 as passcode.

Bluetooth indicator LED on base will turn solid blue when base has an

active connection with mobile phone.

4

Dial test call from computer softphone.



5

End call by pressing headset call control button.

4While wearing headset, short press base mobile button.

5Dial test call from mobile phone.

6End call by pressing headset call control button.

1 Decrease volume

Short press –

2 Answer/end call

Short press

3 Mute Short press

4 Increase volume

Short press +

Flash While on call, long press volume up + or volume down – for 1.5 seconds, will put call on hold and answer another.

WARNINGS For your safety, do not use headset at high volumes for extended periods of time. Doing so can cause hearing loss. Always listen at moderate levels. For more information on headsets and hearing, visit plantronics.com/healthandsafety.

Please refer to the separate safety instructions for important product safety information prior to installation or use of the product.

Savii W710A/W720A710/W720 hashas aWO2WO2Abasebaseandand WH300A//WH350a

WH350A headset.

86106-02 (04.11)

headset.



4Dial test call from desk phone.

5End call by pressing headset call control button.

NEED MORE HELP?

Technical support

plantronics.com/support

Online user guide

http://docs.plantronics.com/savi-700

NEED MORE HELP?

Product support

plantronics.com/support

Online user guide

http://docs.plantronics.com/savi-700
