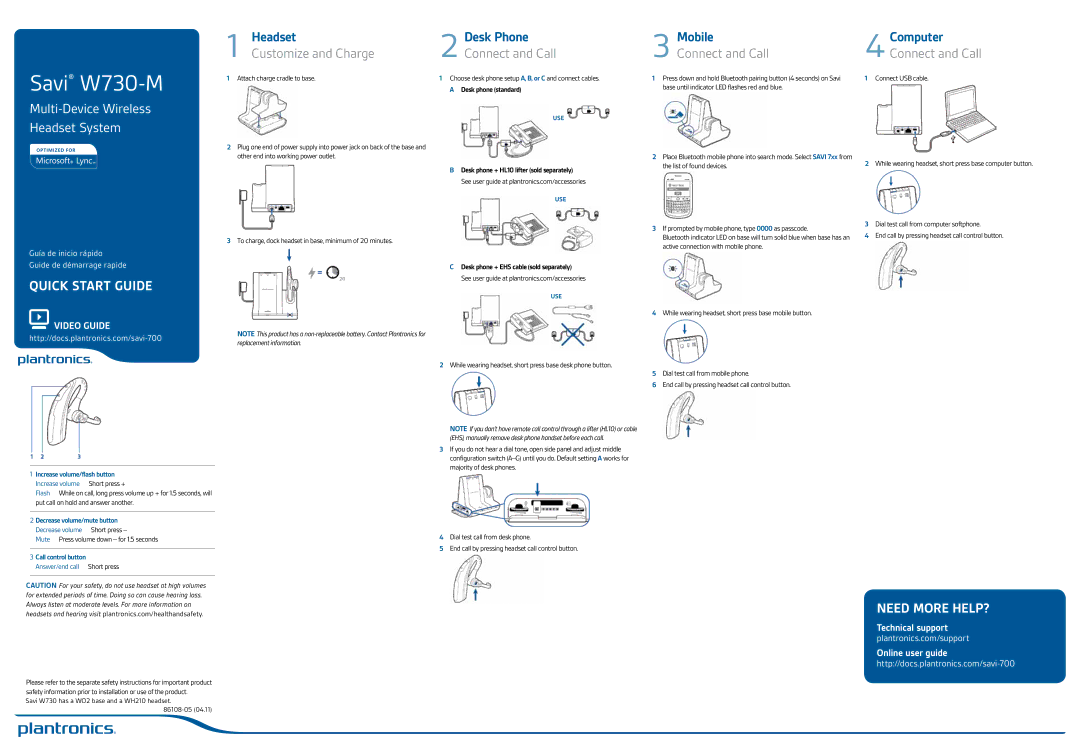

Savi® W730-M
Multi Device Wireless
Headset System
Guide de démarrage rapideGuía de inicio rápidoGuia de Início RápidoQUICK START GUIDE
VIDEO GUIDE
http://docs.plantronics.com/savi-7001Increase volume/flash button
Increase volume Short press +
Flash While on call, long press volume up + for 1.5 seconds, will
put call on hold and answer another.
2Decrease volume/mute button
Decrease volume Short press –
Mute Press volume down – for 1.5 seconds
3Call control button
Answer/end call Short press
CAUTION For your safety, do not use headset at high volumes
for extended periods of time. Doing so can cause hearing loss.
Always listen at moderate levels. For more information on
headsets and hearing visit plantronics.com/healthandsafety.
Please refer to the separate safety instructions for important product
safety information prior to installation or use of the product.
Savi W730 has a WO2 base and a WH210 headset.
1Headset
Customize and Charge
1Attach charge cradle to base.
2Plug one end of power supply into power jack on back of the base and
other end into working power outlet.
3To charge, dock headset in base, minimum of 20 minutes.
NOTE This product has a non-replaceable battery. Contact Plantronics for
replacement information.
2Desk Phone
Connect and Call
1Choose desk phone setup A, B, or C and connect cables.
ADesk phone (standard)
USE
BDesk phone + HL10 lifter (sold separately)
See user guide at plantronics.com/accessories
USE
CDesk phone + EHS cable (sold separately)
See user guide at plantronics.com/accessories
USE
2While wearing headset, short press base desk phone button.
NOTE If you don't have remote call control through a lifter (HL10) or cable
(EHS), manually remove desk phone handset before each call.
3If you do not hear a dial tone, open side panel and adjust middle
configuration switch (A–G) until you do. Default setting A works for
majority of desk phones.
4Dial test call from desk phone.
5End call by pressing headset call control button.
3Mobile
Connect and Call
1Press down and hold Bluetooth pairing button (4 seconds) on Savi
base until indicator LED flashes red and blue.
2Place Bluetooth mobile phone into search mode. Select SAVI 7xx from
the list of found devices.
3If prompted by mobile phone, type 0000 as passcode.
Bluetooth indicator LED on base will turn solid blue when base has an
active connection with mobile phone.
4While wearing headset, short press base mobile button.
5Dial test call from mobile phone.
6End call by pressing headset call control button.
4Computer
Connect and Call
1Connect USB cable.
2While wearing headset, short press base computer button.
3Dial test call from computer softphone.
4End call by pressing headset call control button.
NEED MORE HELP?
Product support
plantronics.com/support
Online user guide
http://docs.plantronics.com/savi-700
NEED MORE HELP?
Technical support
plantronics.com/support
Online user guide
http://docs.plantronics.com/savi-700
Savi W730 has a WO2 base and a WH210 headset.
86108-05 (04.11)
Guía de inicio rápido Guide de démarrage rapide
