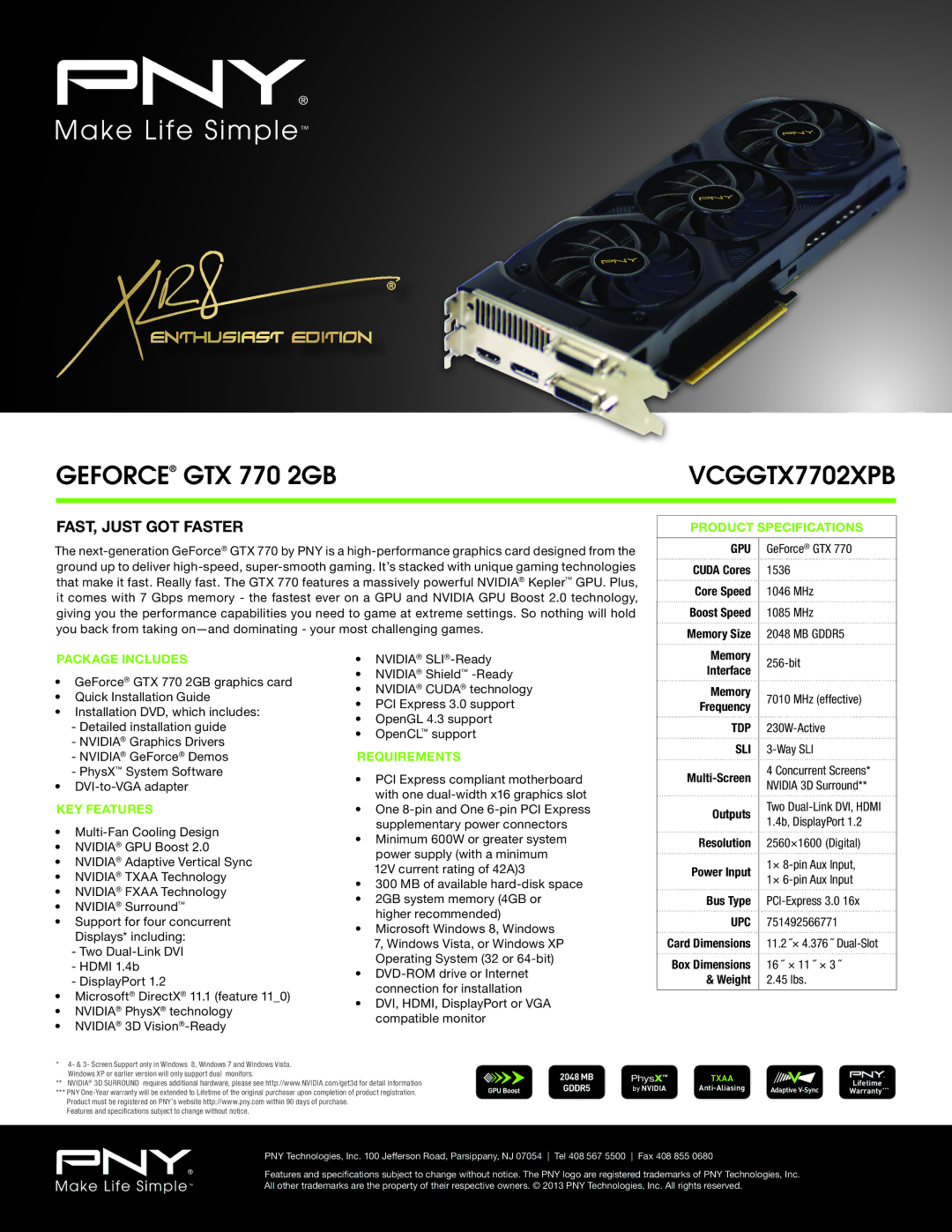

PNY VCGGTX7702XPB specifications Product Specifications, Package Includes, KEY Features

GEFORCE® GTX 770 2GB   VCGGTX7702XPB

FAST, JUST GOT FASTER

The next-generation GeForce® GTX 770 by PNY is a high-performance graphics card designed from the ground up to deliver high-speed, super-smooth gaming. It’s stacked with unique gaming technologies that make it fast. Really fast. The GTX 770 features a massively powerful NVIDIA® Kepler™ GPU. Plus, it comes with 7 Gbps memory - the fastest ever on a GPU and NVIDIA GPU Boost 2.0 technology, giving you the performance capabilities you need to game at extreme settings. So nothing will hold you back from taking on—and dominating - your most challenging games.

PRODUCT SPECIFICATIONS

GPU	GeForce® GTX 770
CUDA Cores
	1536
Core Speed	1046 MHz
Boost Speed	1085 MHz
Memory Size	2048 MB GDDR5

PACKAGE INCLUDES

•GeForce® GTX 770 2GB graphics card

•Quick Installation Guide

•Installation DVD, which includes:

-Detailed installation guide

-NVIDIA® Graphics Drivers

-NVIDIA® GeForce® Demos

-PhysX™ System Software

•DVI-to-VGA adapter

KEY FEATURES

•Multi-Fan Cooling Design

•NVIDIA® GPU Boost 2.0

•NVIDIA® Adaptive Vertical Sync

•NVIDIA® TXAA Technology

•NVIDIA® FXAA Technology

•NVIDIA® Surround™

•Support for four concurrent Displays* including:

-Two Dual-Link DVI

-HDMI 1.4b

-DisplayPort 1.2

•Microsoft® DirectX® 11.1 (feature 11_0)

•NVIDIA® PhysX® technology

•NVIDIA® 3D Vision®-Ready

•NVIDIA® SLI®-Ready

•NVIDIA® Shield™ -Ready

•NVIDIA® CUDA® technology

•PCI Express 3.0 support

•OpenGL 4.3 support

•OpenCL™ support

REQUIREMENTS

•PCI Express compliant motherboard with one dual-width x16 graphics slot

•One 8-pin and One 6-pin PCI Express supplementary power connectors

•Minimum 600W or greater system power supply (with a minimum 12V current rating of 42A)3

•300 MB of available hard-disk space

•2GB system memory (4GB or higher recommended)

•Microsoft Windows 8, Windows 7, Windows Vista, or Windows XP Operating System (32 or 64-bit)

•DVD-ROM drive or Internet connection for installation

•DVI, HDMI, DisplayPort or VGA compatible monitor

Memory	256-bit
Interface
Memory	7010 MHz (effective)
Frequency
TDP	230W-Active
SLI	3-Way SLI
Multi-Screen	4 Concurrent Screens*
	NVIDIA 3D Surround**
Outputs	Two Dual-Link DVI, HDMI
	1.4b, DisplayPort 1.2
Resolution	2560×1600 (Digital)
Power Input	1× 8-pin Aux Input,
	1× 6-pin Aux Input
Bus Type	PCI-­Express 3.0 16x
UPC
	751492566771
Card Dimensions	11.2 ˝× 4.376 ˝ Dual-Slot
Box Dimensions	16 ˝ × 11 ˝ × 3 ˝
& Weight	2.45 lbs.

*4- & 3- Screen Support only in Windows 8, Windows 7 and Windows Vista.

Windows XP or earlier version will only support dual monitors.		2048 MB	PhysX™	TXAA
** NVIDIA® 3D SURROUND requires additional hardware, please see http://www.NVIDIA.com/get3d for detail information						Lifetime
*** PNY One-Year warranty will be extended to Lifetime of the original purchaser upon completion of product registration.	GPU Boost	GDDR5	by NVIDIA	Anti-Aliasing	Adaptive V-Sync	Warranty***
Product must be registered on PNY’s website http://www.pny.com within 90 days of purchase.
Features and specifications subject to change without notice.

PNY Technologies, Inc. 100 Jefferson Road, Parsippany, NJ 07054	Tel 408 567 5500 Fax 408 855 0680
Features and specifications subject to change without notice. The	PNY logo are registered trademarks of PNY Technologies, Inc.

All other trademarks are the property of their respective owners. © 2013 PNY Technologies, Inc. All rights reserved.
