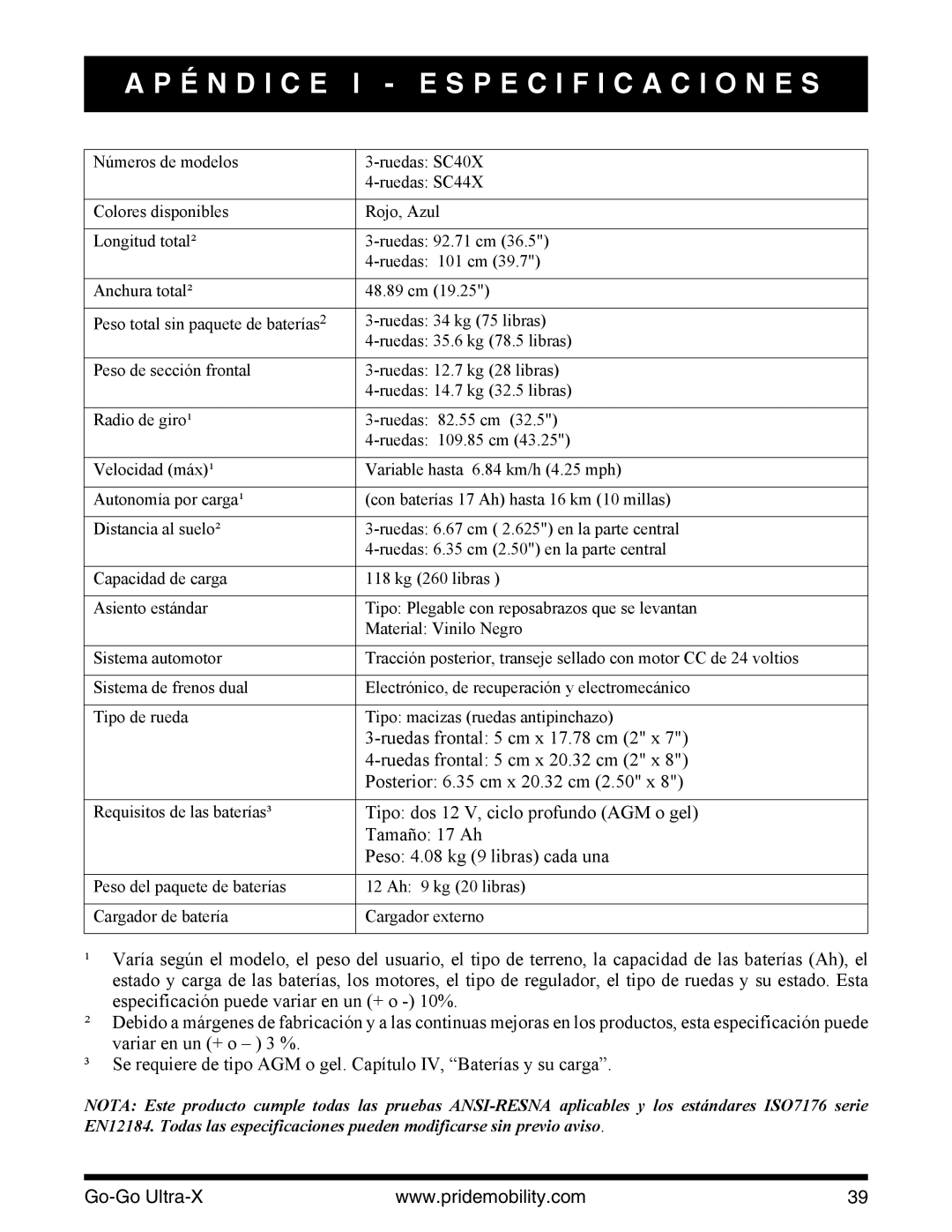

A P É N D I C E I - E S P E C I F I C A C I O N E S

Números de modelos

3-ruedas: SC40X



4-ruedas: SC44X





Colores disponibles

Rojo, Azul

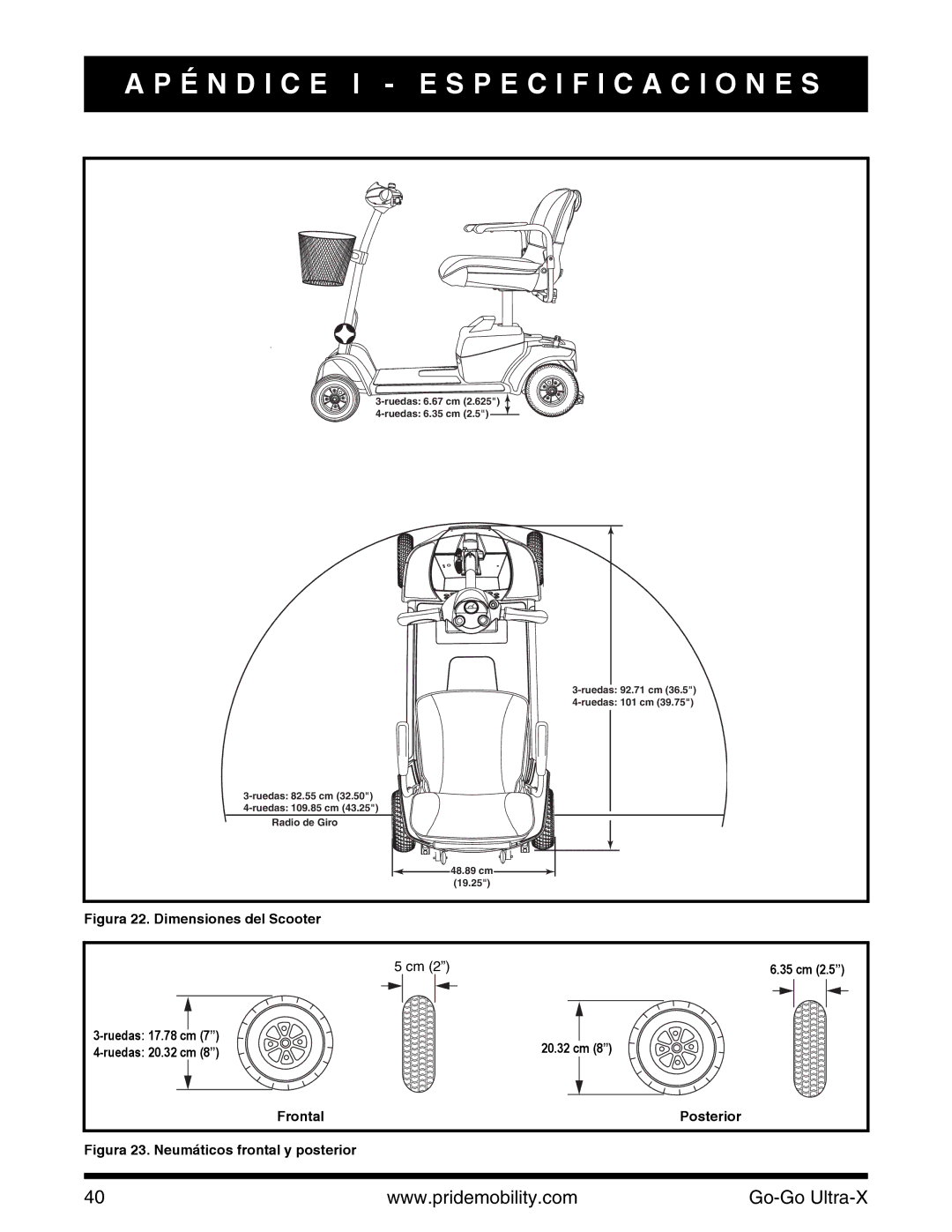

Longitud total²

3-ruedas: 92.71 cm (36.5")



4-ruedas:

101 cm (39.7")





Anchura total²

48.89 cm (19.25")





Peso total sin paquete de baterías2

3-ruedas: 34 kg (75 libras)



4-ruedas: 35.6 kg (78.5 libras)





Peso de sección frontal

3-ruedas: 12.7 kg (28 libras)



4-ruedas: 14.7 kg (32.5 libras)







Radio de giro¹

3-ruedas:

82.55 cm (32.5")



4-ruedas:

109.85 cm (43.25")





Velocidad (máx)¹

Variable hasta 6.84 km/h (4.25 mph)





Autonomía por carga¹

(con baterías 17 Ah) hasta 16 km (10 millas)





Distancia al suelo²

3-ruedas: 6.67 cm ( 2.625") en la parte central



4-ruedas: 6.35 cm (2.50") en la parte central





Capacidad de carga

118 kg (260 libras )





Asiento estándar

Tipo: Plegable con reposabrazos que se levantan



Material: Vinilo Negro





Sistema automotor

Tracción posterior, transeje sellado con motor CC de 24 voltios





Sistema de frenos dual

Electrónico, de recuperación y electromecánico





Tipo de rueda

Tipo: macizas (ruedas antipinchazo)



3-ruedas frontal: 5 cm x 17.78 cm (2" x 7")



4-ruedas frontal: 5 cm x 20.32 cm (2" x 8")



Posterior: 6.35 cm x 20.32 cm (2.50" x 8")





Requisitos de las baterías³

Tipo: dos 12 V, ciclo profundo (AGM o gel)



Tamaño: 17 Ah



Peso: 4.08 kg (9 libras) cada una





Peso del paquete de baterías

12 Ah: 9 kg (20 libras)





Cargador de batería

Cargador externo







¹Varía según el modelo, el peso del usuario, el tipo de terreno, la capacidad de las baterías (Ah), el estado y carga de las baterías, los motores, el tipo de regulador, el tipo de ruedas y su estado. Esta especificación puede variar en un (+ o -) 10%.

²Debido a márgenes de fabricación y a las continuas mejoras en los productos, esta especificación puede variar en un (+ o – ) 3 %.

³Se requiere de tipo AGM o gel. Capítulo IV, “Baterías y su carga”.

NOTA: Este producto cumple todas las pruebas ANSI-RESNA aplicables y los estándares ISO7176 serie EN12184. Todas las especificaciones pueden modificarse sin previo aviso.
