| For Product Information: |
| Visit us on the web: www.princetongraphics.com |
|
|

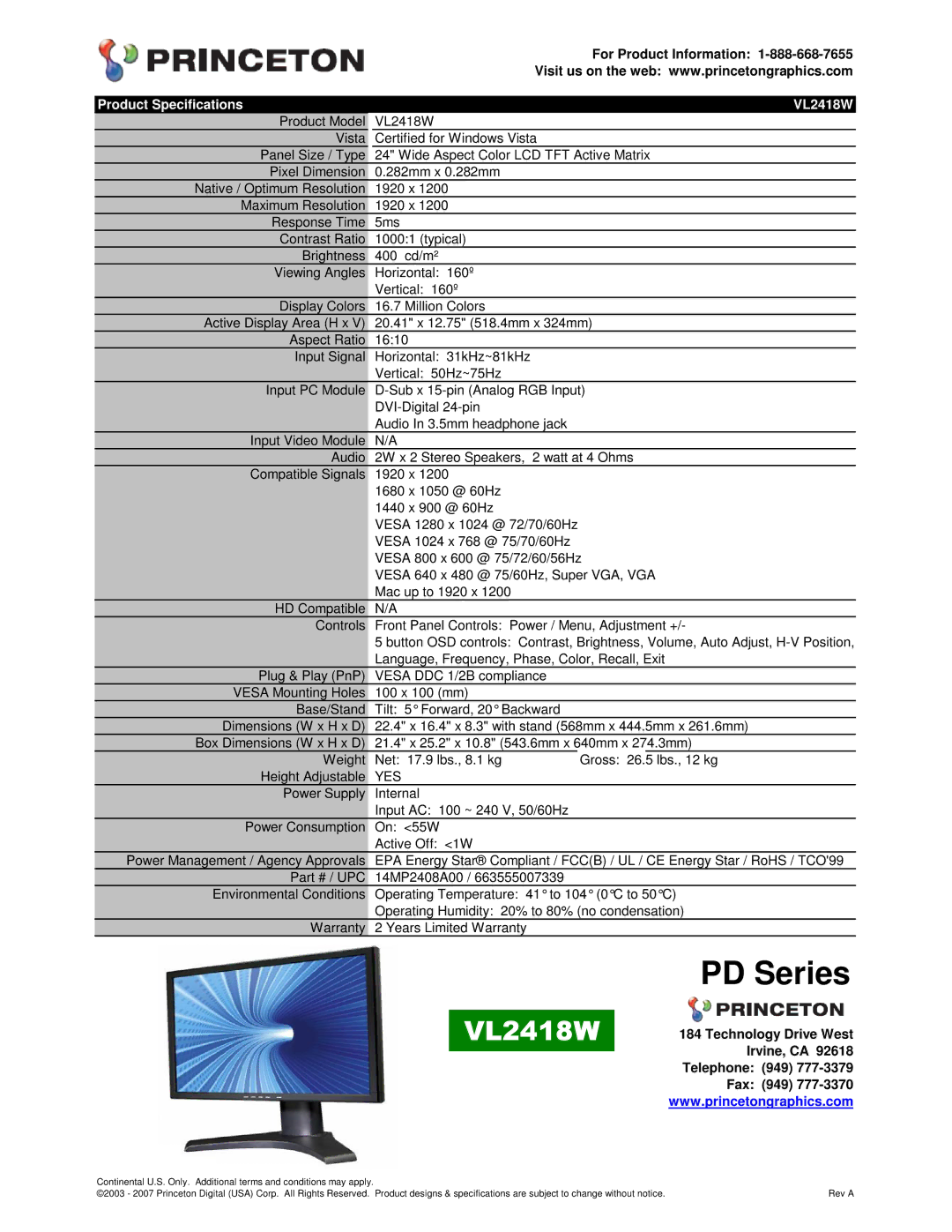

Product Specifications | VL2418W |
Product Model |
| VL2418W |
|
| |
Vista |
| Certified for Windows Vista |
|
| |
Panel Size / Type |
| 24" Wide Aspect Color LCD TFT Active Matrix | |||
Pixel Dimension |
| 0.282mm x 0.282mm |
|
| |
Native / Optimum Resolution |
| 1920 x 1200 |
|
| |
Maximum Resolution |
| 1920 x 1200 |
|
| |
Response Time |
| 5ms |
|
| |
Contrast Ratio |
| 1000:1 (typical) |
|
| |
Brightness |
| 400 cd/m² |
|
| |
Viewing Angles |
| Horizontal: 160º |
|
| |
|
| Vertical: 160º |
|
| |
Display Colors |
| 16.7 Million Colors |
|
| |
Active Display Area (H x V) |
| 20.41" x 12.75" (518.4mm x 324mm) | |||
Aspect Ratio | 16:10 |
|
|
| |
Input Signal |
| Horizontal: 31kHz~81kHz |
|
| |
|
| Vertical: 50Hz~75Hz |
|
| |
Input PC Module |
| ||||
|
|
|
| ||
|
| Audio In 3.5mm headphone jack |
|
| |
Input Video Module |
| N/A |
|
| |
Audio |
| 2W x 2 Stereo Speakers, 2 watt at 4 Ohms | |||
Compatible Signals |
| 1920 x 1200 |
|
| |
|
| 1680 x 1050 @ 60Hz |
|
| |
|
| 1440 x 900 @ 60Hz |
|
| |
|
| VESA 1280 x 1024 @ 72/70/60Hz |
|
| |
|
| VESA 1024 x 768 @ 75/70/60Hz |
|
| |
|
| VESA 800 x 600 @ 75/72/60/56Hz | |||
|
| VESA 640 x 480 @ 75/60Hz, Super VGA, VGA | |||
|
| Mac up to 1920 x 1200 |
|
| |
HD Compatible |
| N/A |
|
| |
Controls |
| Front Panel Controls: Power / Menu, Adjustment +/- | |||
|
| 5 button OSD controls: Contrast, Brightness, Volume, Auto Adjust, | |||
|
| Language, Frequency, Phase, Color, Recall, Exit | |||
Plug & Play (PnP) |
| VESA DDC 1/2B compliance |
|
| |
VESA Mounting Holes |
| 100 x 100 (mm) |
|
| |
Base/Stand |
| Tilt: 5°Forward, 20°Backward |
|
| |
Dimensions (W x H x D) |
| 22.4" x 16.4" x 8.3" with stand (568mm x 444.5mm x 261.6mm) | |||
Box Dimensions (W x H x D) |
| 21.4" x 25.2" x 10.8" (543.6mm x 640mm x 274.3mm) | |||
|
|
|
|
|
|
Weight |
| Net: 17.9 lbs., 8.1 kg | Gross: 26.5 lbs., 12 kg | ||
Height Adjustable |
| YES |
|
| |
Power Supply |
| Internal |
|
| |
|
| Input AC: 100 ~ 240 V, 50/60Hz |
|
| |
Power Consumption |
| On: <55W |
|
| |
|
| Active Off: <1W |
|
| |
Power Management / Agency Approvals |
| EPA Energy Star® Compliant / FCC(B) / UL / CE Energy Star / RoHS / TCO'99 | |||
Part # / UPC |
| 14MP2408A00 / 663555007339 |
|
| |
Environmental Conditions |
| Operating Temperature: 41°to 104°(0°C to 50°C) | |||
|
| Operating Humidity: 20% to 80% (no condensation) | |||
Warranty |
| 2 Years Limited Warranty |
|
| |
PD Series
184 Technology Drive West Irvine, CA 92618 Telephone: (949)
Continental U.S. Only. Additional terms and conditions may apply. |
|
©2003 - 2007 Princeton Digital (USA) Corp. All Rights Reserved. Product designs & specifications are subject to change without notice. | Rev A |
