Fireball ST

Mounting Guidelines

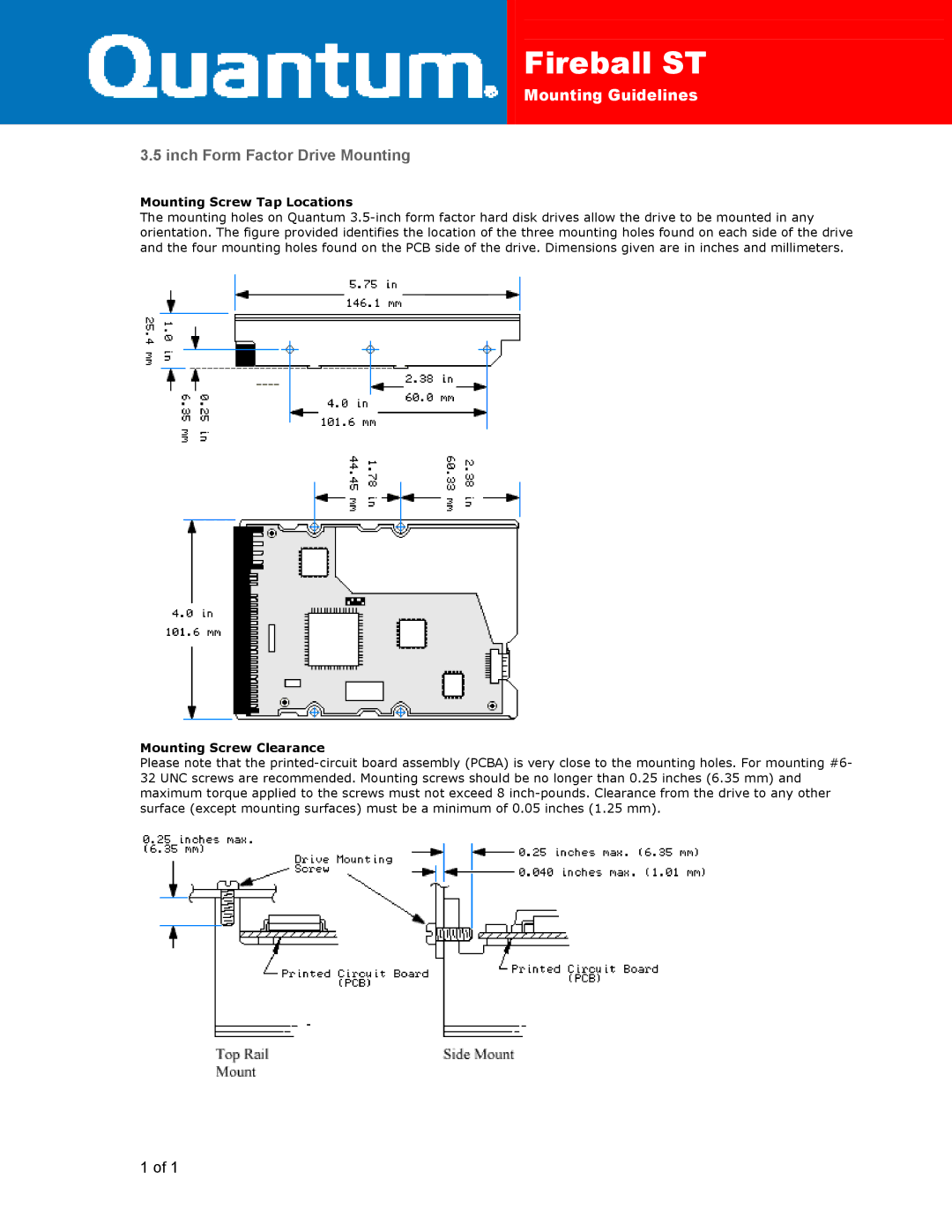

3.5 inch Form Factor Drive Mounting

Mounting Screw Tap Locations

The mounting holes on Quantum 3.5-inch form factor hard disk drives allow the drive to be mounted in any orientation. The figure provided identifies the location of the three mounting holes found on each side of the drive and the four mounting holes found on the PCB side of the drive. Dimensions given are in inches and millimeters.

Mounting Screw Clearance

Please note that the printed-circuit board assembly (PCBA) is very close to the mounting holes. For mounting #6- 32 UNC screws are recommended. Mounting screws should be no longer than 0.25 inches (6.35 mm) and maximum torque applied to the screws must not exceed 8 inch-pounds. Clearance from the drive to any other surface (except mounting surfaces) must be a minimum of 0.05 inches (1.25 mm).

1 of 1

Page 1
Image 1
Quantum Fireball ST dimensions Mounting Guidelines, Inch Form Factor Drive Mounting, Mounting Screw Tap Locations

Fireball ST specifications

The Quantum Fireball ST is a remarkable piece of technology that has garnered attention for its cutting-edge design and powerful performance capabilities. As part of the Quantum series, this storage device is known for its superior data management and retrieval speeds, making it an essential tool for both individuals and businesses that require rapid access to large volumes of data.

One of the main features of the Quantum Fireball ST is its advanced data storage technology. Equipped with a high-density magnetic recording surface, the Fireball ST offers an impressive storage capacity, allowing users to store thousands of files, multimedia content, and applications with ease. This technology not only maximizes the amount of data that can be stored but also enhances the reliability and durability of the device, ensuring that your important files are protected against data loss.

Another standout characteristic of the Quantum Fireball ST is its fast read and write speeds. Utilizing a combination of optimized rotational speed and enhanced data transfer technologies, the Fireball ST significantly decreases the time it takes to load applications and retrieve files. This makes it an ideal choice for gamers, designers, and professionals who depend on quick access to data for their workflows or leisure activities.

The Fireball ST also boasts superior error correction capabilities. With built-in algorithms designed to detect and correct errors during data read and write processes, users can be confident in the integrity of their stored information. This feature, coupled with a robust shock resistance design, ensures that the device can withstand everyday handling, reducing the risks of data corruption due to physical impacts.

In terms of connectivity, the Quantum Fireball ST is compatible with a variety of interface standards, allowing easy integration with different systems. With its backward compatibility, users can seamlessly connect the Fireball ST with older models without facing issues, making it a versatile choice.

Moreover, the Fireball ST has been designed with energy efficiency in mind. Consuming less power compared to its predecessors, it not only aids in reducing operational costs but also contributes to a lower carbon footprint, appealing to environmentally conscious users.

In summary, the Quantum Fireball ST stands out in the storage market with its combination of high capacity, fast speeds, robust error correction, versatility in connectivity, and energy efficiency. It is a powerful tool that meets the demands of contemporary data management, ensuring that users can store and access their data with confidence and ease.
