Regency I1200 Description, Side and Top facing is a maximum of 1-1/2thick, Dimension

Wood Inserts

I1200 Wood Insert

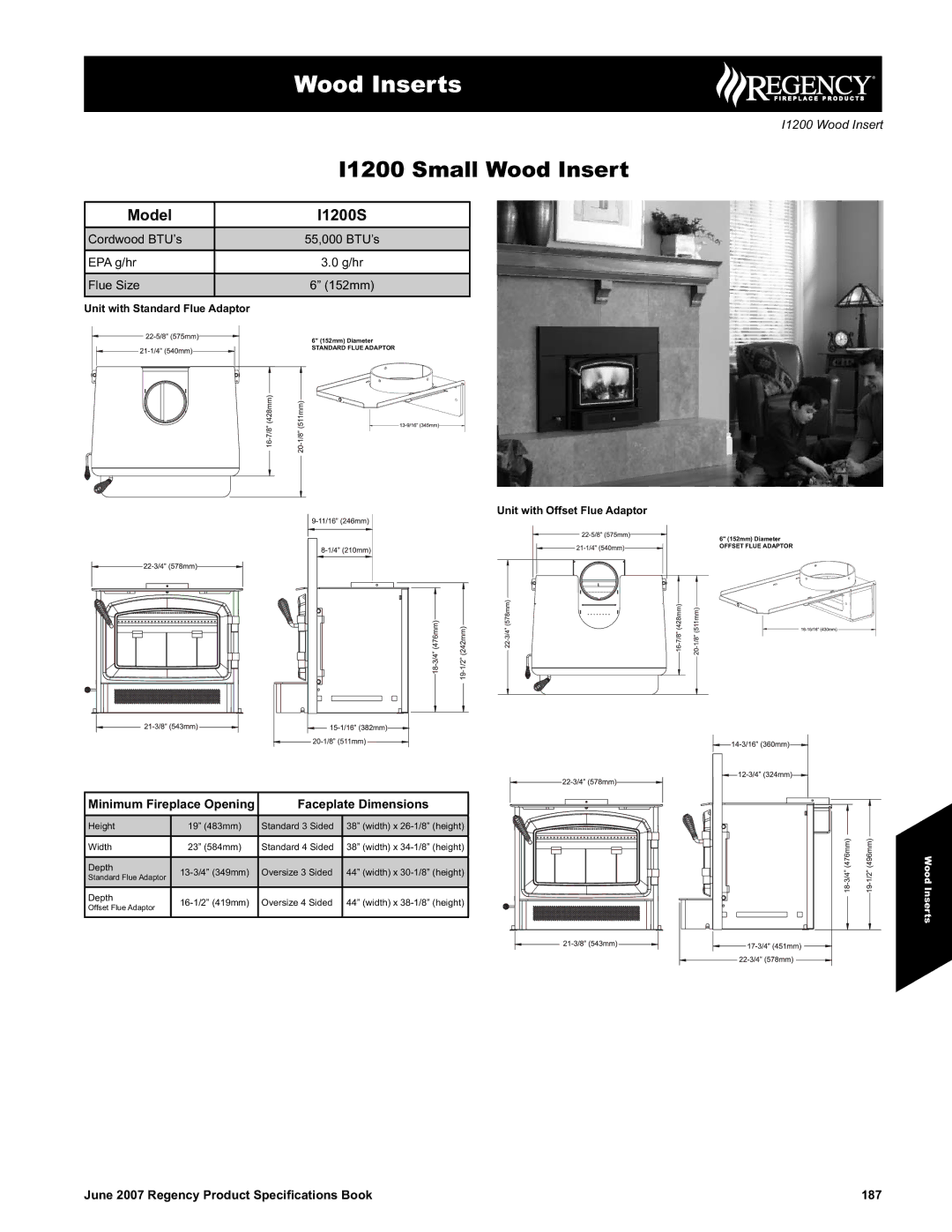

I1200 Small Wood Insert

Dimension	Description	I1200
A	Adjacent Side Wall (to side)	15” (381mm)
B	Mantle (to top)**	20” (508mm)
C	Top Facing (to top)	14” (356mm)
D	Side Facing (to side)	7-3/8” (187mm)
E	Minimum Hearth Extension*	16” (406mm)
F	Minimum Heath Thickness*	1-1/2” (38mm)
G	Minimum Hearth Side Extension	8” (203mm)

Side and Top facing is a maximum of 1-1/2" thick.

Floor protection must be non-combustible, insulating material with an

R value of 1.1 or greater.

*If the hearth extension is fl ush with the fl oor (F) it must extend 19-1/2" in front of the body face (E).

Note: Hearth Extension Width (G) is measured from edge of fuel door to side of hearth.

**Anon-combustiblemantelmaybeinstalledatalowerheightifthe framing is made of metal studs covered with a non-combustible board.

Wood Inserts

188 June 2007 Regency Product Specifications Book
