Firebox height is 21” at highest point.

Minimum Fireplace Opening

Height	21-1/2” (546mm)
Width	25” (635mm)
Depth	17” (432mm)

	Faceplate Dimensions
Standard		40” (wide) x 30” (height)
Oversize		48” (wide) x 33” (height)

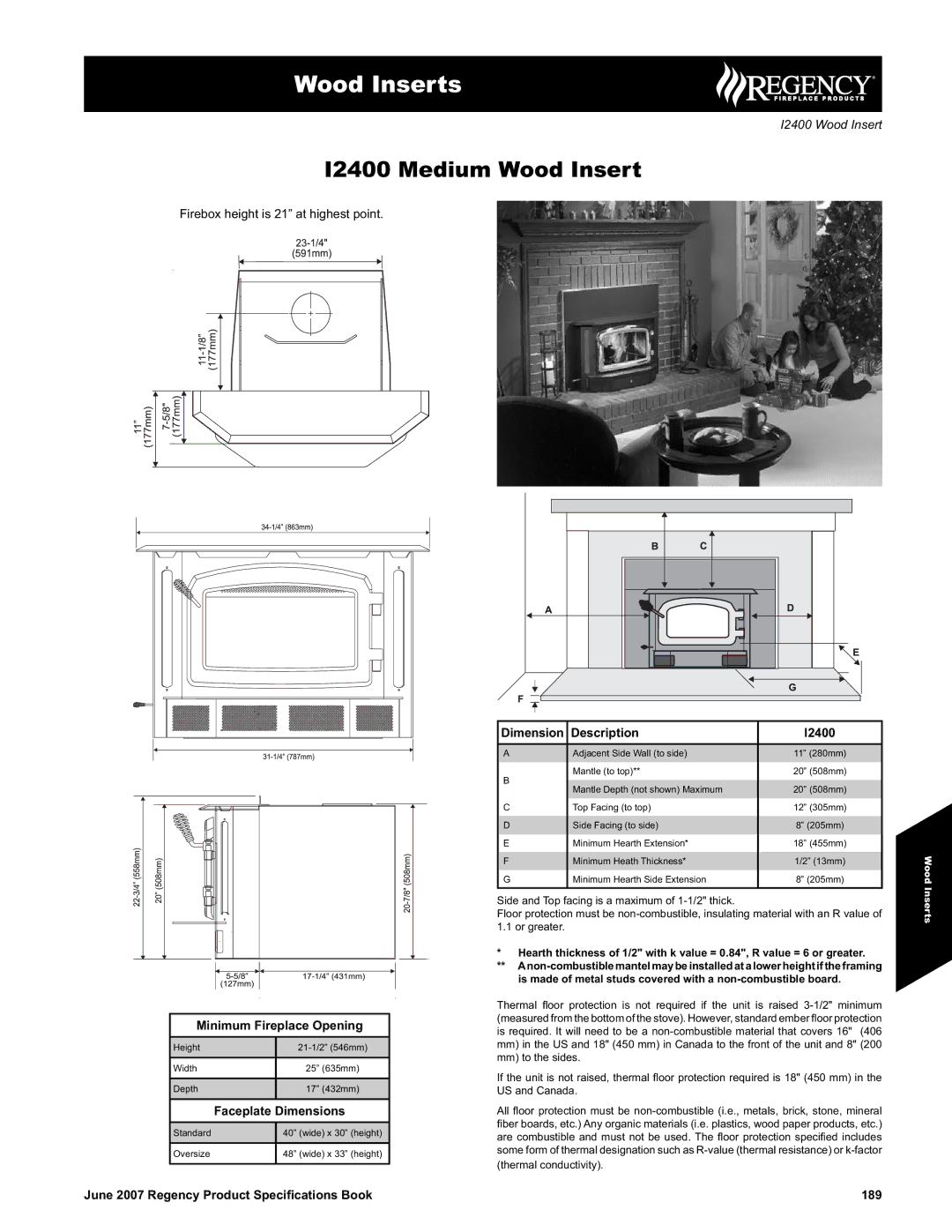

June 2007 Regency Product Specifications Book

Dimension	Description	I2400
A	Adjacent Side Wall (to side)	11” (280mm)
B	Mantle (to top)**	20” (508mm)
	Mantle Depth (not shown) Maximum	20” (508mm)
C	Top Facing (to top)	12” (305mm)
D	Side Facing (to side)	8” (205mm)
E	Minimum Hearth Extension*	18” (455mm)
F	Minimum Heath Thickness*	1/2” (13mm)
G	Minimum Hearth Side Extension	8” (205mm)

Side and Top facing is a maximum of 1-1/2" thick.

Floor protection must be non-combustible, insulating material with an R value of 1.1 or greater.

*Hearth thickness of 1/2" with k value = 0.84", R value = 6 or greater.

**Anon-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board.

Thermal fl oor protection is not required if the unit is raised 3-1/2" minimum (measured from the bottom of the stove). However, standard ember fl oor protection is required. It will need to be a non-combustible material that covers 16" (406

mm)in the US and 18" (450 mm) in Canada to the front of the unit and 8" (200

mm)to the sides.

If the unit is not raised, thermal fl oor protection required is 18" (450 mm) in the US and Canada.

All fl oor protection must be non-combustible (i.e., metals, brick, stone, mineral

fiber boards, etc.) Any organic materials (i.e. plastics, wood paper products, etc.) are combustible and must not be used. The fl oor protection specifi ed includes some form of thermal designation such as R-value (thermal resistance) or k-factor (thermal conductivity).
