Wood Inserts

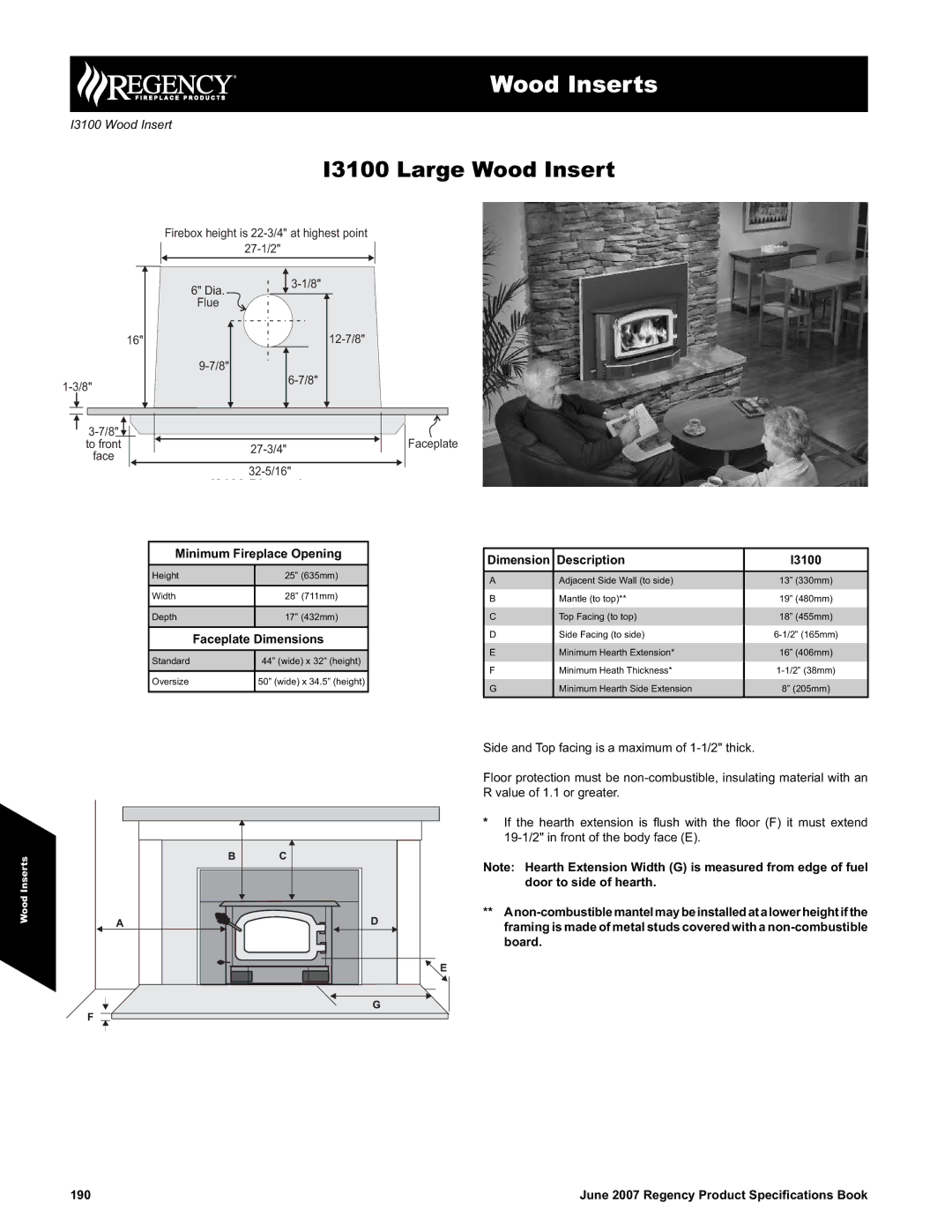

I3100 Wood Insert

I3100 Large Wood Insert

16"

1-3/8"

Firebox height is 22-3/4" at highest point 27-1/2"

6" Dia.	3-1/8"
Flue

12-7/8"

9-7/8"

6-7/8"

3-7/8"		Faceplate
to front	27-3/4"
face
	32-5/16"

Minimum Fireplace Opening

Height	25” (635mm)
Width	28” (711mm)
Depth	17” (432mm)

	Faceplate Dimensions
Standard		44” (wide) x 32” (height)
Oversize		50” (wide) x 34.5” (height)

Wood Inserts

190

Dimension	Description	I3100
A	Adjacent Side Wall (to side)	13” (330mm)
B	Mantle (to top)**	19” (480mm)
C	Top Facing (to top)	18” (455mm)
D	Side Facing (to side)	6-1/2” (165mm)
E	Minimum Hearth Extension*	16” (406mm)
F	Minimum Heath Thickness*	1-1/2” (38mm)
G	Minimum Hearth Side Extension	8” (205mm)

Side and Top facing is a maximum of 1-1/2" thick.

Floor protection must be non-combustible, insulating material with an R value of 1.1 or greater.

*If the hearth extension is fl ush with the fl oor (F) it must extend 19-1/2" in front of the body face (E).

Note: Hearth Extension Width (G) is measured from edge of fuel door to side of hearth.

**Anon-combustiblemantelmaybeinstalledatalowerheightifthe framing is made of metal studs covered with a non-combustible board.
