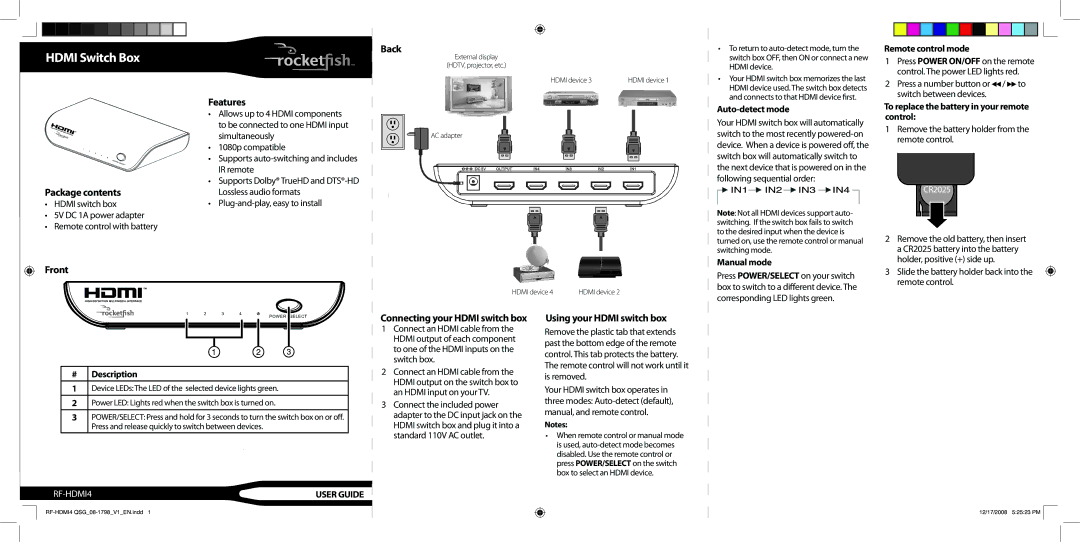

HDMI Switch Box

Back

External display

(HDTV, projector, etc.)

HDMI device 3

HDMI device 1

• To return to auto-detect mode, turn the

switch box OFF, then ON or connect a new

HDMI device.

• Your HDMI switch box memorizes the last

HDMI device used. The switch box detects

and connects to that HDMI device first.

Remote control mode

1Press POWER ON/OFF on the remote control. The power LED lights red.

2Press a number button or / to switch between devices.

Package contents

•HDMI switch box

•5V DC 1A power adapter

•Remote control with battery

Front

Features

•Allows up to 4 HDMI components to be connected to one HDMI input simultaneously

•1080p compatible

•Supports auto-switching and includes IR remote

•Supports Dolby® TrueHD and DTS®-HD Lossless audio formats

•Plug-and-play, easy to install

AC adapter

HDMI device 4 HDMI device 2

Auto-detect mode

Your HDMI switch box will automatically switch to the most recently powered-on device. When a device is powered off, the switch box will automatically switch to the next device that is powered on in the following sequential order:

Note: Not all HDMI devices support auto- switching. If the switch box fails to switch to the desired input when the device is turned on, use the remote control or manual switching mode.

Manual mode

Press POWER/SELECT on your switch box to switch to a different device. The corresponding LED lights green.

To replace the battery in your remote control:

1Remove the battery holder from the remote control.

2Remove the old battery, then insert a CR2025 battery into the battery holder, positive (+) side up.

3Slide the battery holder back into the remote control.

1

2

3

4







POWER / SELECT

Connecting your HDMI switch box Using your HDMI switch box

#Description

1Device LEDs: The LED of the selected device lights green.

2Power LED: Lights red when the switch box is turned on.

3POWER/SELECT: Press and hold for 3 seconds to turn the switch box on or off. Press and release quickly to switch between devices.

RF-HDMI4

USER GUIDE

RF-HDMI4 QSG_08-1798_V1_EN.indd

1

1Connect an HDMI cable from the HDMI output of each component to one of the HDMI inputs on the switch box.

2Connect an HDMI cable from the HDMI output on the switch box to an HDMI input on your TV.

3Connect the included power adapter to the DC input jack on the HDMI switch box and plug it into a standard 110V AC outlet.

Remove the plastic tab that extends past the bottom edge of the remote control. This tab protects the battery.

The remote control will not work until it is removed.

Your HDMI switch box operates in three modes: Auto-detect (default), manual, and remote control.

Notes:

•When remote control or manual mode is used, auto-detect mode becomes disabled. Use the remote control or press POWER/SELECT on the switch box to select an HDMI device.

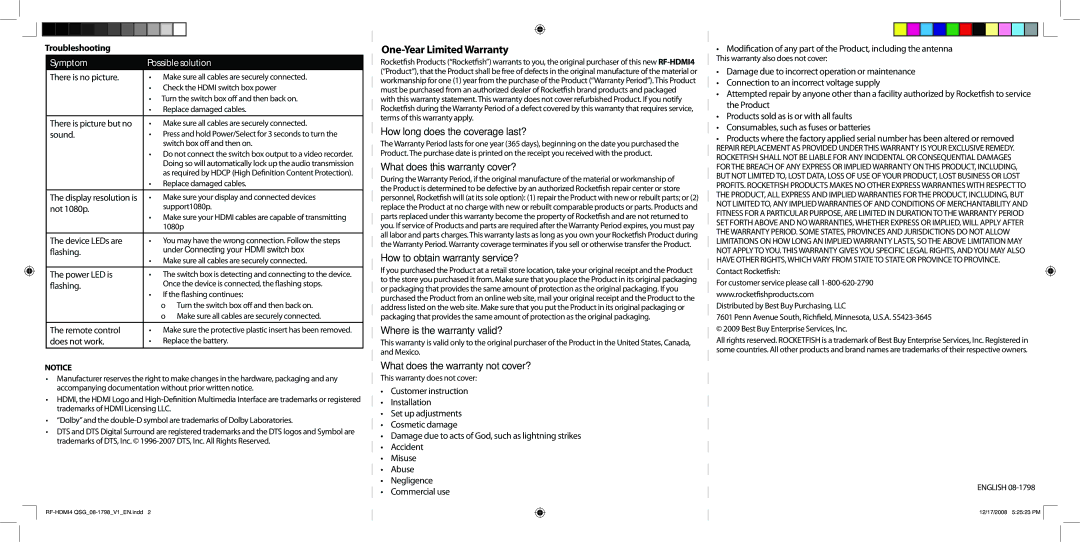

12/17/2008 5:25:23 PM
