M210S4

2008

Model: M210S4

Type: Marine 10" Subwoofer

Power Rating: 200 Watts

Impedance: 4 ohms

Freq. Response: 40 - 250 Hz

Features

True Marine Grade Compliance.

100% UV stable Centrex™ injection molded plastic p arts.

Injection molded mineral filled polypropylene cone body with UV inhibitors.

UV & Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround.

1" (25mm) bridge mounted component grade coated aluminum alloy tweeter.

18 AWG Corrosion resistant removable Stainless Steel grill cover insert.

Ultra-flexible fully insulated silicone lead wire.

Proprietary corrossion resistant spring loaded push terminals.

Moisture, tear and fatigue resistant aramid fiber spider.

Linear high excursion matched motor magnetics and suspension design.

Integrated Magnetic Shielding

Removable trim ring/grill options. Available Black & White color options.

An IB enclosure design represents an application where the compliance of the air volume within the enclosure is greater than the compliance of the speaker's suspension (Vas). An infrasonic filter is required for reliable performance in vented and infinite baffle designs.

Recommended Applications

Enclosure

Volume (Vb)

Tuning(Fb)

System

-3dB (F3)

Port Dia.

Port Length

Liters

cu.ft.

Hz

(Qtc)

Hz

in.

mm

in.

mm



Sealed:

21.2



0.75

60.3

0.77

60.6

-



-

-



-

Inf. Baffle:







57.5

0.63

58.0

-



-

-



-

Vented:

35.4



1.25

48.6

-

40.0

4



101.6

8.52



216.5

SPL & Excursion (@100 Watts) - Impedance (@1 Watt)

Vented Box SPL

Infinite Baffle SPL

Closed Box SPL

Closed Box Impedance

Vented Box Impedance

Closed Box Excursion

Vented Box Excursion

Infinite Baffle Impedance

Infinite Baffle Excursion



120.0



60







110.0



50







100.0



40





SPL (dB)

90.0



30

Impedance (ohms)

Excursion (mm)

80.0



20











70.0



10







60.0



0







10

100

1000





Frequency (Hz)

Technical Specifications









Voice Coil Diameter:

1.95



49.53

inches mm

Voice Coil Height:

0.98



24.9

inches mm

Voice Coil Layers:



4

layers

Magnetic Gap Height:

0.315



8.0

inches mm

Linear Excursion, pk-pk (Xmax):

0.665



16.9

inches mm

Maximum Excursion, pk-pk:

1.89



48.0

inches mm

Magnet Weight:

54.4



1.54

oz. kg

Woofer Displacement:

4.35



0.154

liters cubic ft.

Net Weight:

12.3



5.6

lbs. kg

Power Rating:

200



400

RMS Peak

Above specifications and dimensions comply with the CEA-2031 standard.

Thiele-Small Specifications

Fs (Hz): 45

Re (Ohms): 3.6

Le (mH): 0.3

Qts: 0.57

Qes: 0.64

Qms: 9.00

Cms (mm/N): 0.119

Vas (L): 20.2

Mms (g): 105

Mmd (g): 101

Rms (kg/s): 3.3

Airload (g): 3.7

No (%): 0.28

SPL (dB - 1W/1M): 86.0

BL (T*M): 13.1

*Xmax10 (mm): 10.0

Sd (cm2): 346

EBP: 70

Krm (mOhms): 0.7

Erm: 0.82

Kxm (mH): 4.1

Exm: 0.73

Rem (Ohms): 1.86

Vd(cm3): 346

*All parameters are derived using a laser velocity measurement method and verified with actual measured Mmd and Re. All dual voice coil models are wired in series. Xmax10 represents actual effective excursion at <10% THD.

Specifications subject to change without notice.















Rockford Corporation •

600 South Rockford Drive •

T empe, AZ •

85281







RFPB- M210S4 (Rev B)

Rockford Corporation

• 600 South Rockford Drive

• T empe, AZ

• 85281

4-Apr-08 DK

Page 1

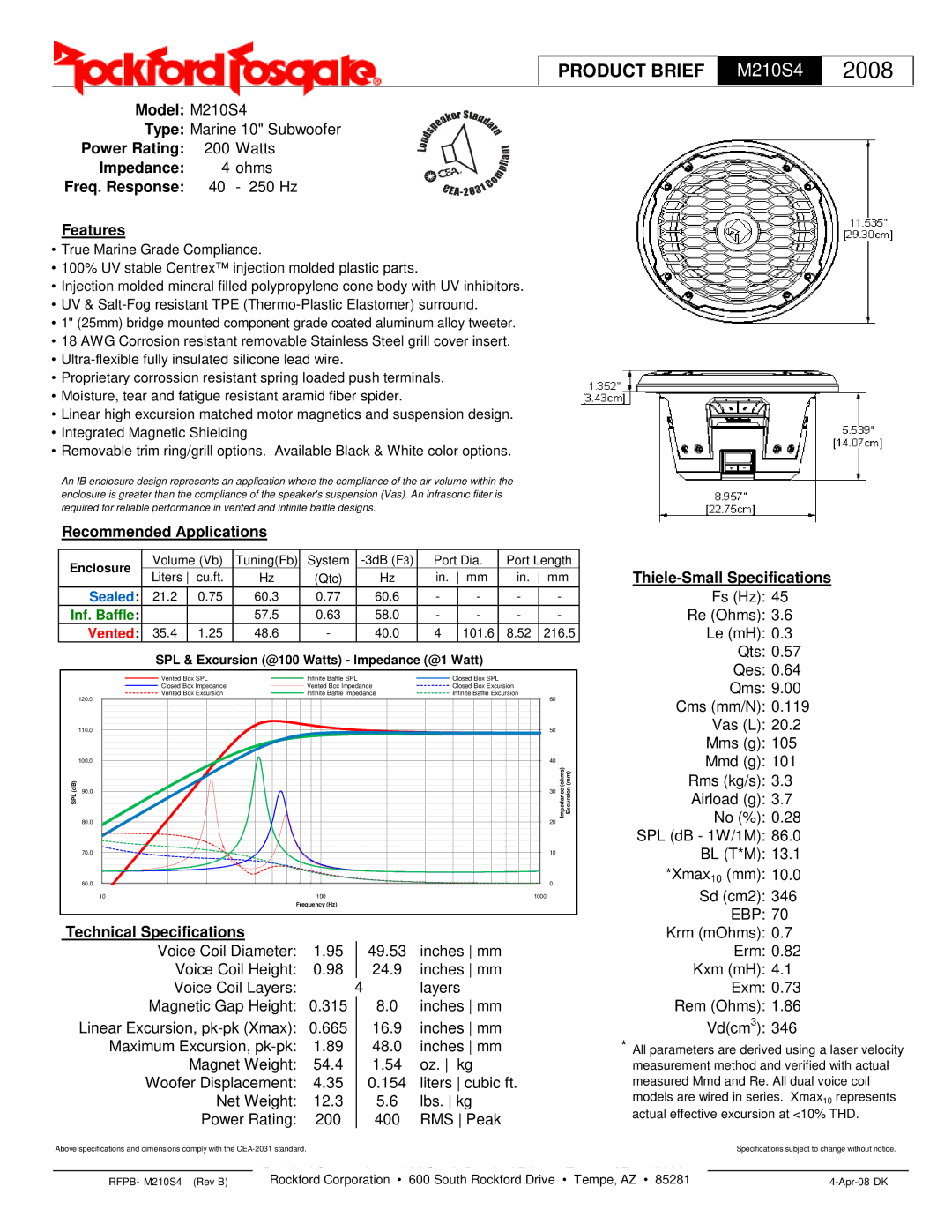

Image 1
