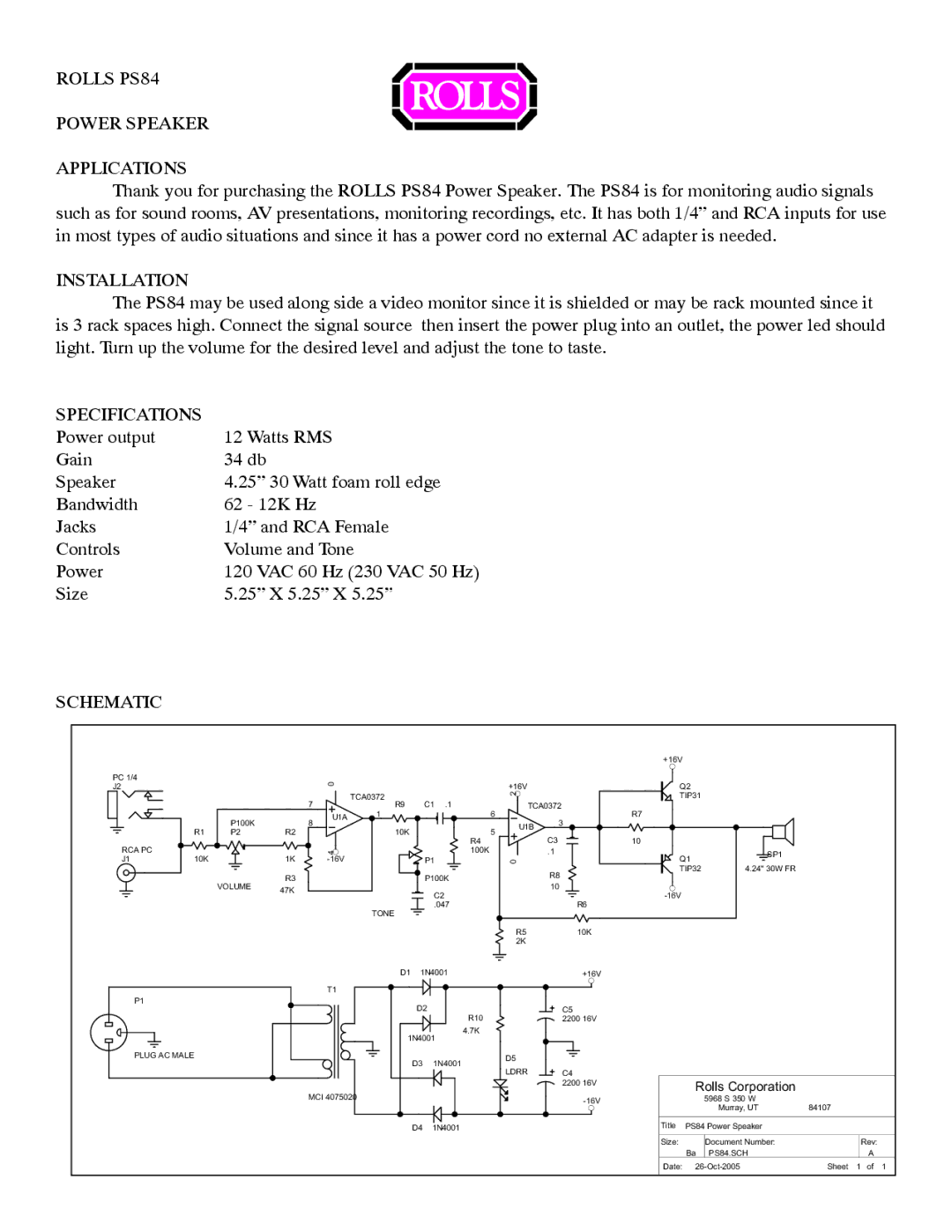

ROLLS PS84

POWER SPEAKER

APPLICATIONS

Thank you for purchasing the ROLLS PS84 Power Speaker. The PS84 is for monitoring audio signals such as for sound rooms, AV presentations, monitoring recordings, etc. It has both 1/4” and RCA inputs for use in most types of audio situations and since it has a power cord no external AC adapter is needed.

INSTALLATION

The PS84 may be used along side a video monitor since it is shielded or may be rack mounted since it is 3 rack spaces high. Connect the signal source then insert the power plug into an outlet, the power led should light. Turn up the volume for the desired level and adjust the tone to taste.

SPECIFICATIONS



Power output

12 Watts RMS

Gain

34 db

Speaker

4.25” 30 Watt foam roll edge

Bandwidth

62 - 12K Hz

Jacks

1/4” and RCA Female

Controls

Volume and Tone

Power

120 VAC 60 Hz (230 VAC 50 Hz)

Size

5.25” X 5.25” X 5.25”

SCHEMATIC

PC 1/4







0









J2





















7



TCA0372



C1

.1









R9







P100K

8

U1A

1





6





























R1

P2

R2



10K





5

RCA PC















R4







4







100K

J1

10K



1K

-16V





P1







VOLUME

R3







P100K





47K







C2











































TONE



.047



























D1

1N4001









T1









P1











D2















R10



























1N4001

4.7K













PLUG AC MALE











D3

1N4001



















MCI 4075020



















D4

1N4001

+16V





2







TCA0372

U1B

3







C3





.1

0









R8





10





R6

R5



10K

2K









+16V





C5





2200 16V

D5





LDRR



C4





2200 16V





-16V

+16V

Q2

TIP31

R7

10

Q1

SP1



4.24" 30W

FR

TIP32

-16V

Rolls Corporation



5968 S 350 W





Murray, UT

84107

Title

PS84 Power Speaker



Size:

Document Number:

Rev:



Ba PS84.SCH

A

Date:

26-Oct-2005

Sheet 1 of 1

Page 1
Image 1
Rolls specifications Rolls PS84 Power Speaker Applications, Installation, Specifications, Schematic, Rolls Corporation

PS84 specifications
