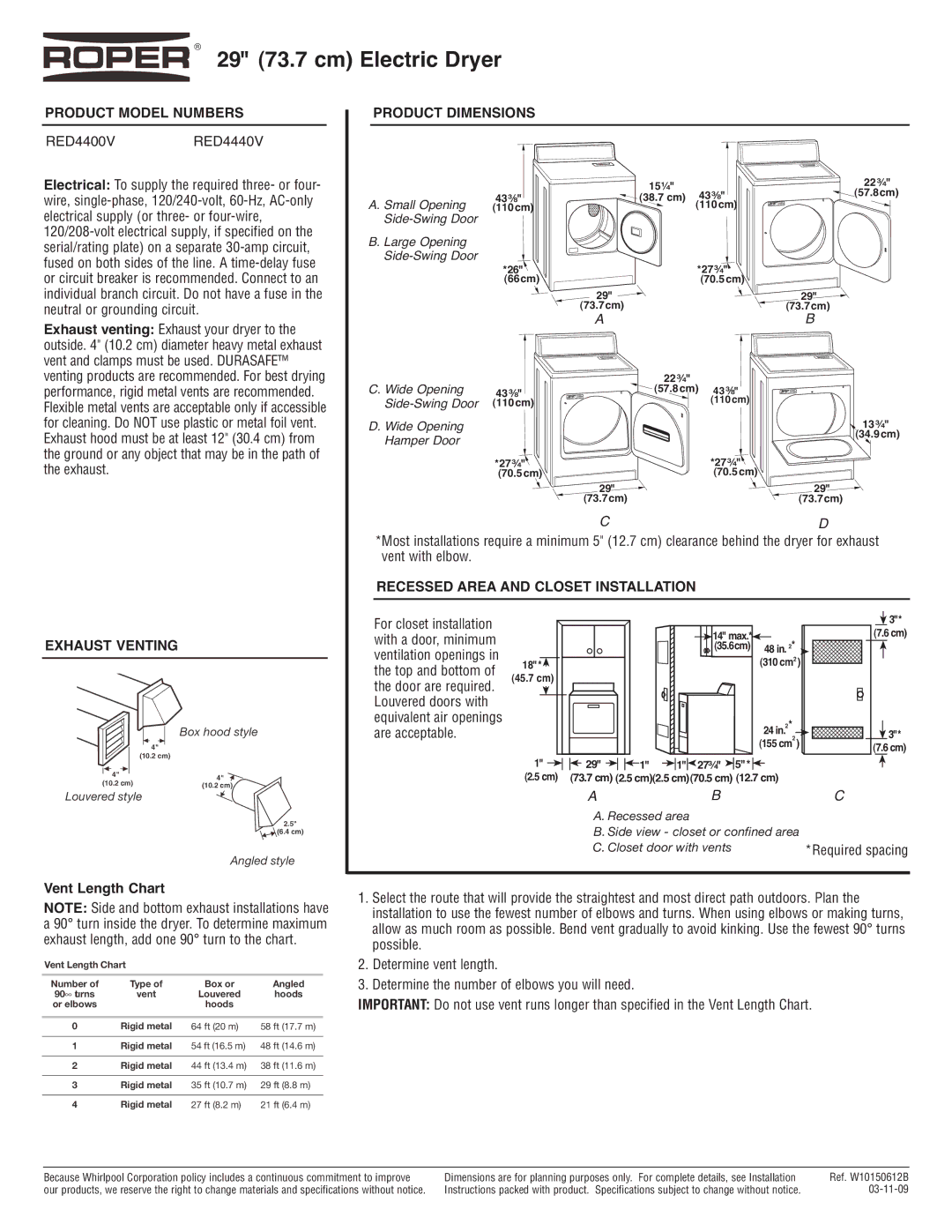

29" (73.7 cm) Electric Dryer
PRODUCT MODEL NUMBERS
RED4400V RED4440V
PRODUCT DIMENSIONS
Electrical: To supply the required three- or four- wire,
Exhaust venting: Exhaust your dryer to the outside. 4" (10.2 cm) diameter heavy metal exhaust vent and clamps must be used. DURASAFE™ venting products are recommended. For best drying performance, rigid metal vents are recommended. Flexible metal vents are acceptable only if accessible for cleaning. Do NOT use plastic or metal foil vent. Exhaust hood must be at least 12" (30.4 cm) from the ground or any object that may be in the path of the exhaust.
43³⁄₈"
A. Small Opening (110cm) Side-Swing Door
B. Large Opening
Side-Swing Door
*26"
(66cm)
C. Wide Opening | 43 ³⁄₈" |
|
| (110cm | ) |
D. Wide Opening
Hamper Door
*27³⁄₄"
(70.5cm)
15¹⁄₄"
(38.7 cm) 43³⁄₈"
(110cm)
*27³⁄₄"
(70.5cm)
29"
(73.7cm)
A
22³⁄₄"
(57.8cm) 43³⁄₈"
(110cm)
*27³⁄₄"
(70.5cm)
29"
(73.7cm)
22³⁄₄"
(57.8cm)
29"
(73.7cm)
B
13³⁄₄" (34.9cm)
29"
(73.7cm)
CD
*Most installations require a minimum 5" (12.7 cm) clearance behind the dryer for exhaust vent with elbow.
RECESSED AREA AND CLOSET INSTALLATION
EXHAUST VENTING
Box hood style
4"
(10.2 cm)
4" | 4" | |
(10.2 cm) | ||
(10.2 cm) | ||
|
Louvered style
2.5"
(6.4 cm)
Angled style
For closet installation with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent air openings are acceptable.
|
| 3"* |
14" max.* | 48 in. 2* | (7.6 cm) |
(35.6cm) |
| |
18"* | (310 cm2 ) |
|
(45.7 cm) |
|
|
| 24 in.2* | 3"* |
| (155 cm2 ) | |
|
| (7.6 cm) |
1" |
|
|
| 29" |
|
|
| 1" |
|
| 1" |
| 27³⁄₄" | 5"* |
|
|
|
|
|
|
|
| |||||||||||||||
(2.5 cm) |
| (73.7 cm) (2.5 cm)(2.5 cm)(70.5 cm) (12.7 cm) | ||||||||||||||||
|
|
|
| A |
|
|
|
|
|
| B |
|
|
| C | |||
|
|
|
| A. Recessed area |
|
|
|
|
|
| ||||||||
|
|
|
| B. Side view - closet or confined area | ||||||||||||||
|
|
|
| C. Closet door with vents |
|
|
| *Required spacing | ||||||||||
Vent Length Chart
NOTE: Side and bottom exhaust installations have a 90° turn inside the dryer. To determine maximum exhaust length, add one 90° turn to the chart.
Vent Length Chart
Number of | Type of | Box or | Angled |
90∞ turns | vent | Louvered | hoods |
or elbows |
| hoods |
|
|
|
|
|
0 | Rigid metal | 64 ft (20 m) | 58 ft (17.7 m) |
|
|
|
|
1 | Rigid metal | 54 ft (16.5 m) | 48 ft (14.6 m) |
|
|
|
|
2 | Rigid metal | 44 ft (13.4 m) | 38 ft (11.6 m) |
|
|
|
|
3 | Rigid metal | 35 ft (10.7 m) | 29 ft (8.8 m) |
|
|
|
|
4 | Rigid metal | 27 ft (8.2 m) | 21 ft (6.4 m) |
1.Select the route that will provide the straightest and most direct path outdoors. Plan the installation to use the fewest number of elbows and turns. When using elbows or making turns, allow as much room as possible. Bend vent gradually to avoid kinking. Use the fewest 90° turns possible.
2.Determine vent length.
3.Determine the number of elbows you will need.
IMPORTANT: Do not use vent runs longer than specified in the Vent Length Chart.
Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation | Ref. W10150612B |
Instructions packed with product. Specifications subject to change without notice. |
