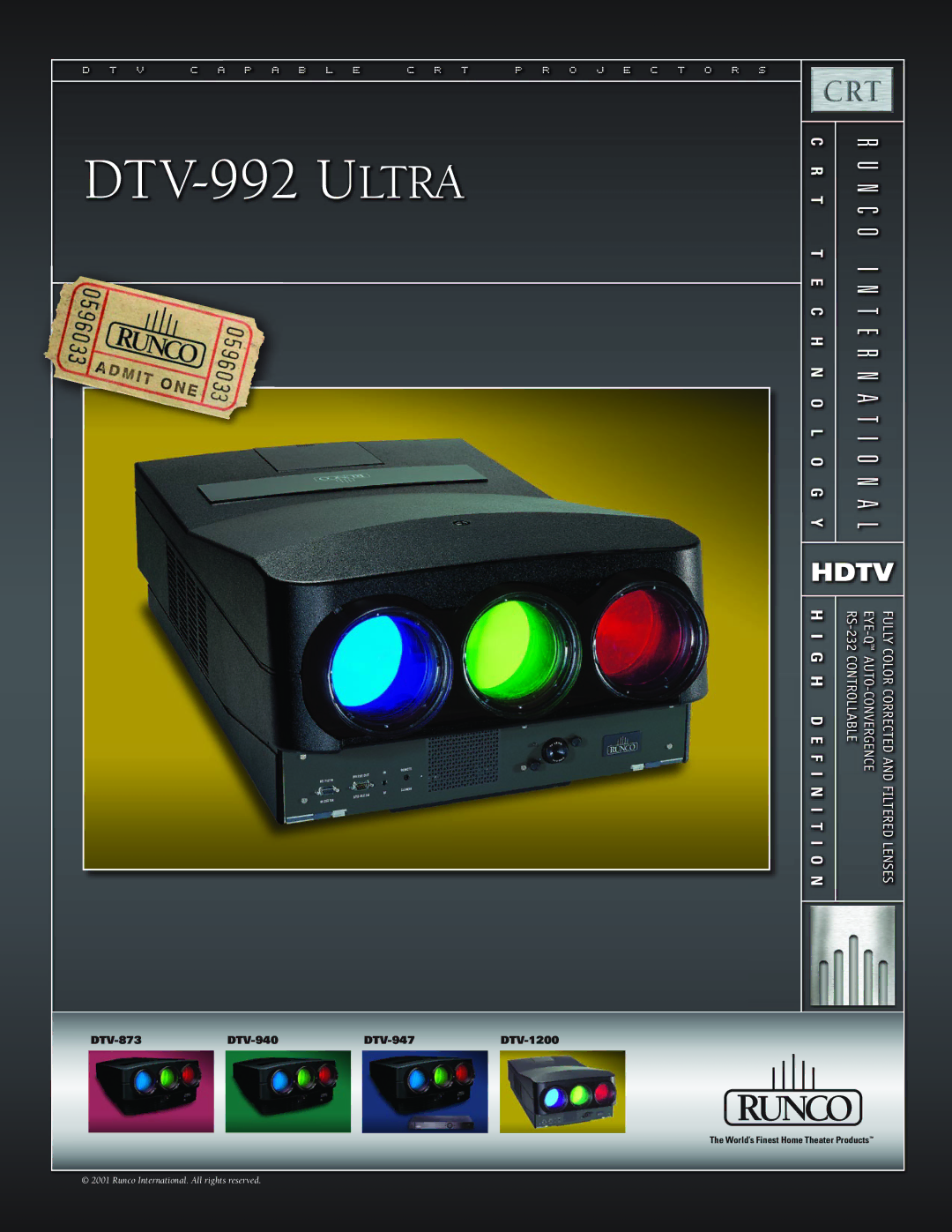

Runco DTV-992 ULTRA manual D T V C A P A B L E C R T P R O J E C T O R S, Runco International

D T V C A P A B L E C R T P R O J E C T O R S

he DTV-992 ULTRA has all the Tfeatures necessary for the true home theater experience. With its true 8-inch CRTs, fully color-cor- rected and filtered lenses, and accurate 25-point zone conver- gence system, this projector will precisely reproduce video from any

FEATURES
• 25 point zone convergence	• RS232 controllable
• 230 ANSI lumens	• Multiple Aspect Ratios
• Color corrected and filtered HD-8 lenses	• 110	KHz Horizontal scan rate
• Eye-Q™: The intelligent way to converge	• 120	MHz Bandwidth
• Impressive gamma correction	• Convergence on green for accurate linearity

source. Its scan rate capabilities and large CRTs make it the perfect choice for use with any High- Definition format, as well as any type of processor. Finally, this unit comes equipped with the Eye-Q™ auto-convergence system for easy touch-ups.

SPECIFICATIONS
Scan Frequency:	Horizontal: 15-110 KHz
	Vertical: 37–200 Hz
Optical Resolution:	10 line pairs/mm
Video Standards:	NTSC, PAL, SECAM, NTSC 4.43
Bandwidth:	75 MHz (120 MHz 992 Ultra)
CRTs:	8” High performance with
	Electromagnetic focus
Lenses:	Fully color corrected and filtered
	HD-8 lenses
Inputs:	Component/RGB
Color Balance:	3200K, 5400K, 6500K, 9300K,
	Custom
Light Output:	1250 lumens/230 ANSI lumens
Convergence Memories: 32
Picture Size:	5–20 ft. wide
Throw Distance:	1.33 x width (widescreens)
	1.40 x width (4:3 screens)

Configurations:	Front or rear, floor, or ceiling
	mount
Aspect Ratio:	Anamorphic, widescreen, 4:3
Contrast Ratio:	100:1
Convergence:	Dynamic geometry, 25 point zone
Power Requirements:	115 VAC, 50/60 Hz
Power Consumption:	500W
Cabinet Dimensions:	Width: 23.25 in./590.55 mm
	Depth: 43 in./1092.20 mm
	Height: 14.25 in./361.95 mm
	Weight: 156 lbs./70.76 mm
Safety Regulations:	Complies with: FCC Class B, CE,
	C-Tick
Storage:	10–122° F (-12–50°C)
Operating Environment:	32–104° F (0–40°C)
Humidity:	0–90%, non-condensing

Call factory for more specific information on export specifications.

Specifications are subject to change without notice.

Runco International®

2463 Tripaldi Way, Hayward CA 94545 Tel: 510-293-9154 • Fax: 510-293-0201 www.runco.com

9/1/01
