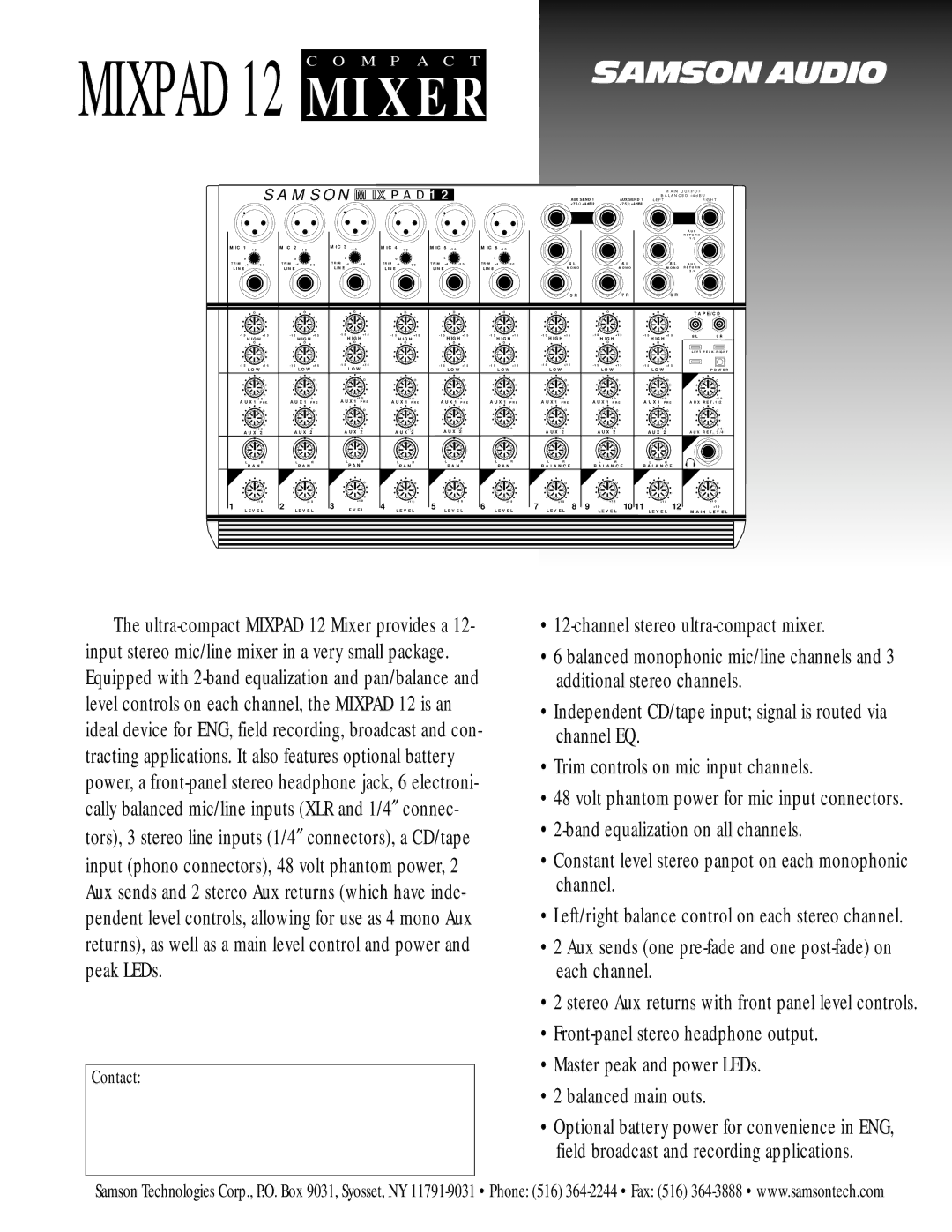

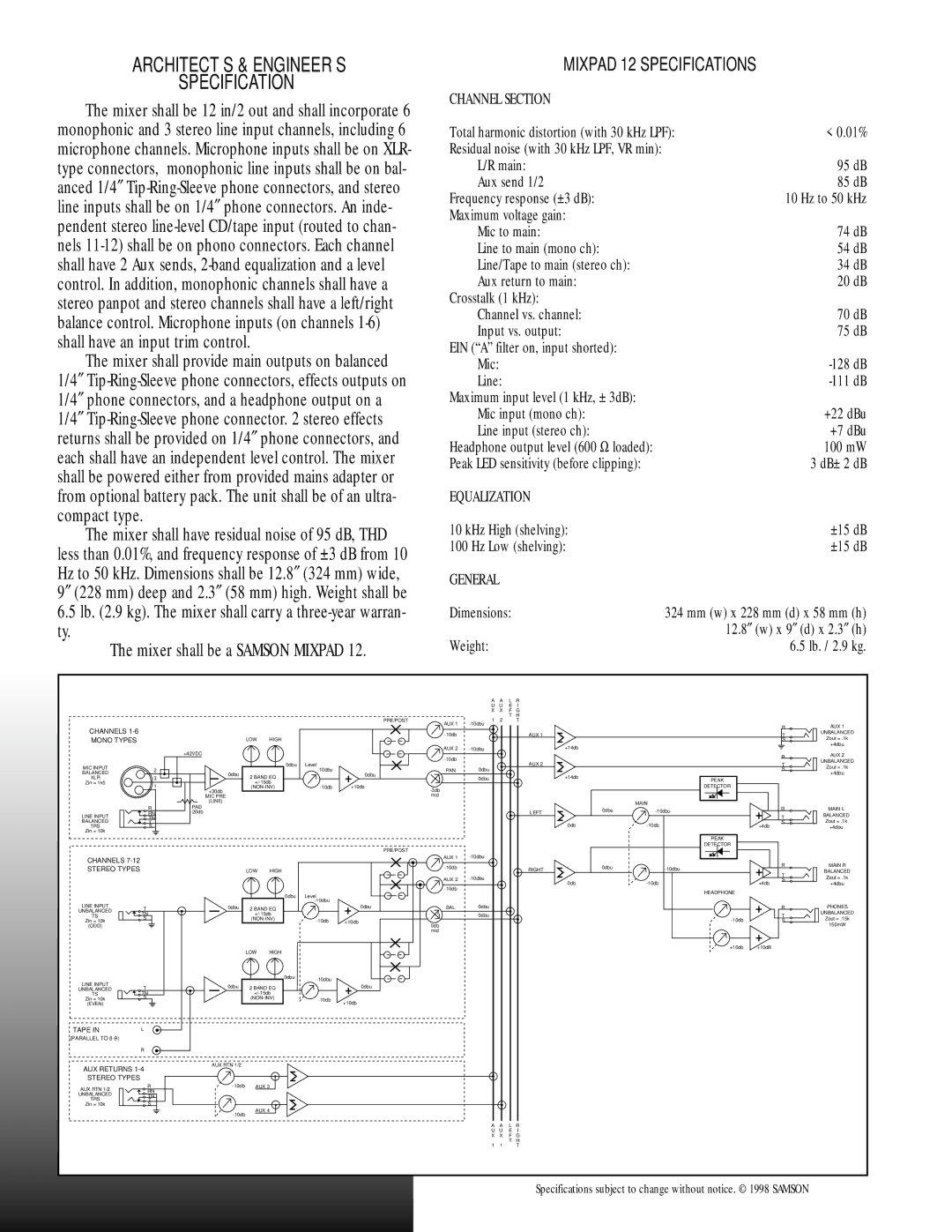

The ultra-compact MIXPAD 12 Mixer provides a 12- input stereo mic/line mixer in a very small package. Equipped with 2-band equalization and pan/balance and level controls on each channel, the MIXPAD 12 is an ideal device for ENG, field recording, broadcast and con- tracting applications. It also features optional battery power, a front-panel stereo headphone jack, 6 electroni- cally balanced mic/line inputs (XLR and 1/4″ connec- tors), 3 stereo line inputs (1/4″ connectors), a CD/tape input (phono connectors), 48 volt phantom power, 2 Aux sends and 2 stereo Aux returns (which have inde- pendent level controls, allowing for use as 4 mono Aux returns), as well as a main level control and power and peak LEDs.

Contact:

•12-channel stereo ultra-compact mixer.

•6 balanced monophonic mic/line channels and 3 additional stereo channels.

•Independent CD/tape input; signal is routed via channel EQ.

•Trim controls on mic input channels.

•48 volt phantom power for mic input connectors.

•2-band equalization on all channels.

•Constant level stereo panpot on each monophonic channel.

•Left/right balance control on each stereo channel.

•2 Aux sends (one pre-fade and one post-fade) on each channel.

•2 stereo Aux returns with front panel level controls.

•Front-panel stereo headphone output.

•Master peak and power LEDs.

•2 balanced main outs.

•Optional battery power for convenience in ENG, field broadcast and recording applications.
