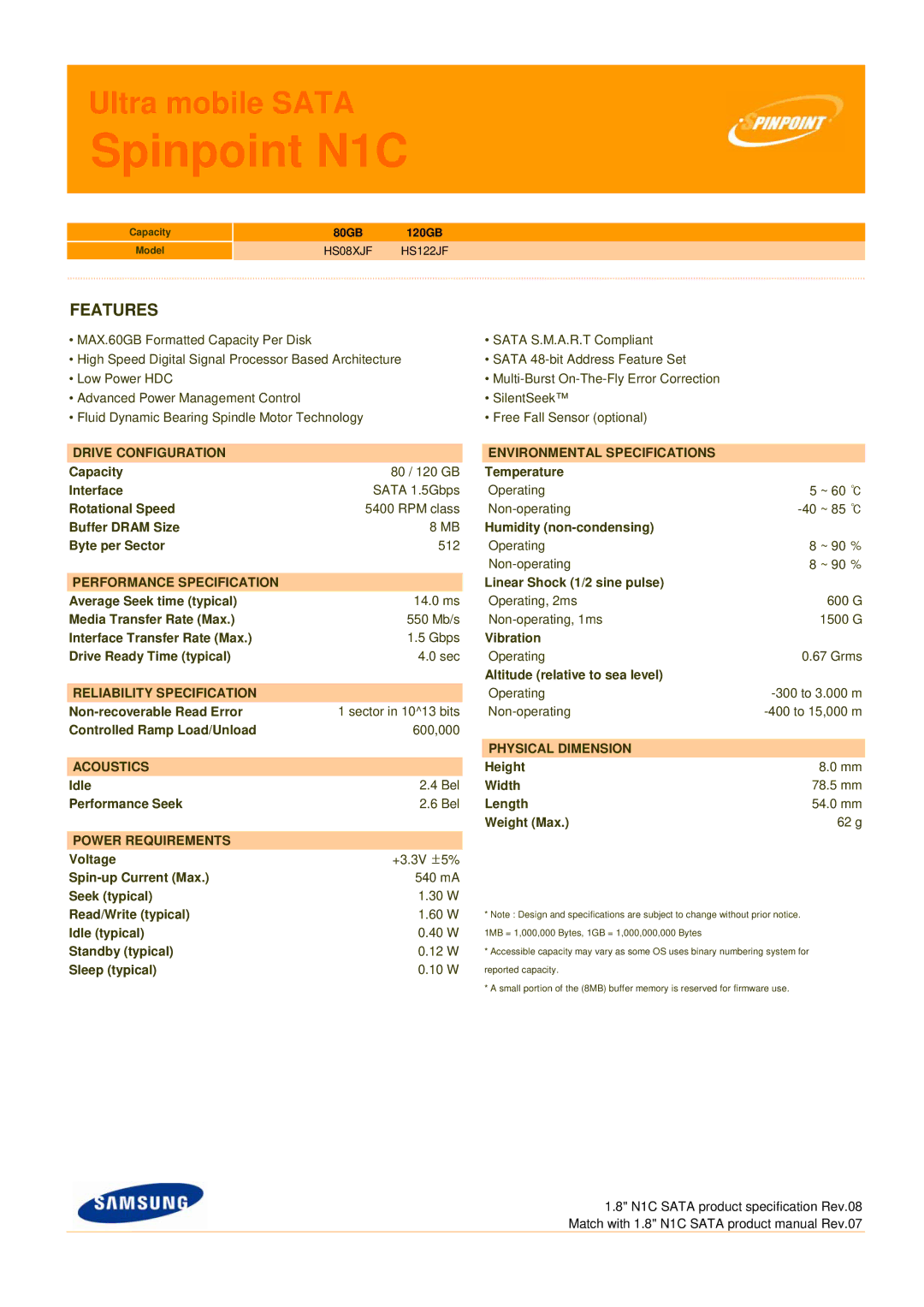

Ultra mobile SATA
Spinpoint N1C
Capacity | 80GB | 120GB |
Model | HS08XJF | HS122JF |
FEATURES
•MAX.60GB Formatted Capacity Per Disk
•High Speed Digital Signal Processor Based Architecture
•Low Power HDC
•Advanced Power Management Control
•Fluid Dynamic Bearing Spindle Motor Technology
DRIVE CONFIGURATION
Capacity | 80 / 120 GB |
Interface | SATA 1.5Gbps |
Rotational Speed | 5400 RPM class |
Buffer DRAM Size | 8 MB |
Byte per Sector | 512 |
|
|
PERFORMANCE SPECIFICATION |
|
Average Seek time (typical) | 14.0 ms |
Media Transfer Rate (Max.) | 550 Mb/s |
Interface Transfer Rate (Max.) | 1.5 Gbps |
Drive Ready Time (typical) | 4.0 sec |
|
|
RELIABILITY SPECIFICATION |
|
1 sector in 10^13 bits | |
Controlled Ramp Load/Unload | 600,000 |
|
|
ACOUSTICS |
|
Idle | 2.4 Bel |
Performance Seek | 2.6 Bel |
|
|
POWER REQUIREMENTS |
|
Voltage | +3.3V ±5% |
540 mA | |
Seek (typical) | 1.30 W |
Read/Write (typical) | 1.60 W |
Idle (typical) | 0.40 W |
Standby (typical) | 0.12 W |
Sleep (typical) | 0.10 W |
•SATA S.M.A.R.T Compliant
•SATA
•
•SilentSeek™
•Free Fall Sensor (optional)
ENVIRONMENTAL SPECIFICATIONS
Temperature |
|
|
Operating | 5 | ~ 60 ℃ |
~ 85 ℃ | ||
Humidity |
|
|
Operating | 8 | ~ 90 ％ |
8 | ~ 90 ％ | |
Linear Shock (1/2 sine pulse) |
|
|
Operating, 2ms |
| 600 G |
| 1500 G | |
Vibration |
|
|
Operating | 0.67 Grms | |
Altitude (relative to sea level) |
|
|
Operating | ||
|
|
|
PHYSICAL DIMENSION |
|
|
Height |
| 8.0 mm |
Width | 78.5 mm | |
Length | 54.0 mm | |
Weight (Max.) |
| 62 g |
*Note : Design and specifications are subject to change without prior notice. 1MB = 1,000,000 Bytes, 1GB = 1,000,000,000 Bytes
*Accessible capacity may vary as some OS uses binary numbering system for reported capacity.
*A small portion of the (8MB) buffer memory is reserved for firmware use.
1.8" N1C SATA product specification Rev.08 Match with 1.8" N1C SATA product manual Rev.07
