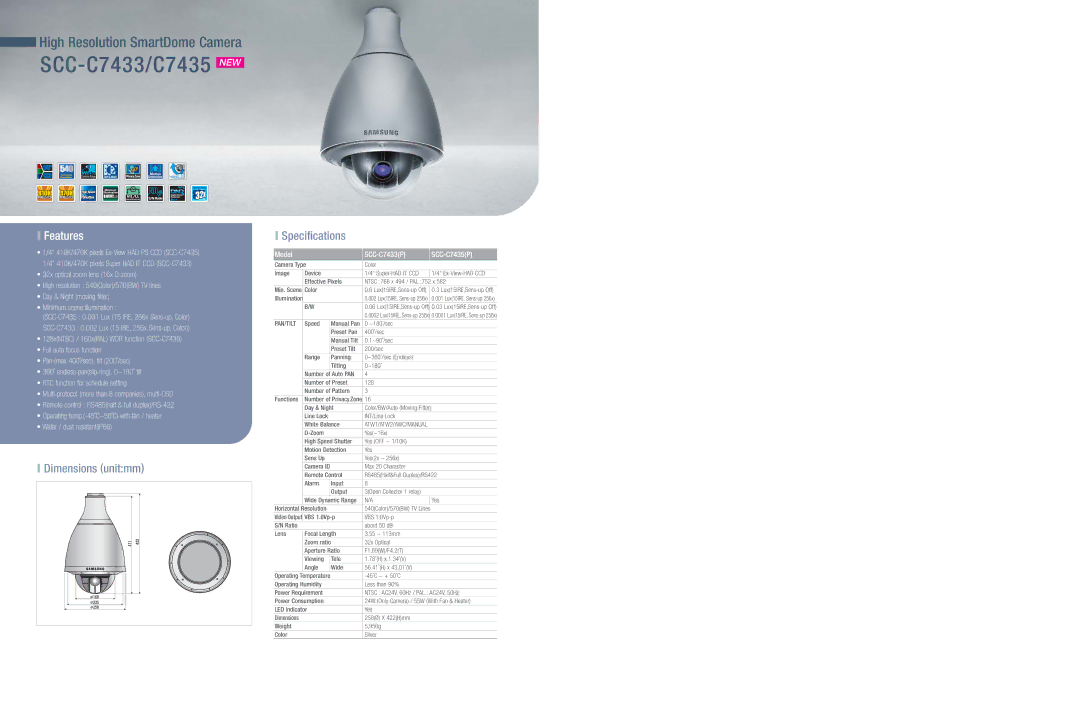

High Resolution SmartDome Camera

SCC-C7433/C7435 NEW

Features

1/4" 410K/470K pixels Ex-View HAD PS CCD (SCC-C7435) 1/4" 410K/470K pixels Super HAD IT CCD (SCC-C7433)

32x optical zoom lens (16x D-zoom)

High resolution : 540(Color)/570(BW) TV lines

Day & Night (moving filter)

Minimum scene illumination :

(SCC-C7435 : 0.001 Lux (15 IRE, 256x Sens-up, Color)

SCC-C7433 : 0.002 Lux (15 IRE, 256x Sens-up, Color))

128x(NTSC) / 160x(PAL) WDR function (SCC-C7435)

Full auto focus function

Pan (max 400˚/sec), tilt (200˚/sec)

360˚ endless pan(slip-ring), 0~180˚ tilt

RTC function for schedule setting

Multi-protocol (more than 8 companies), multi-OSD

Remote control : RS485(half & full duplex)/RS-422

Operating temp.(-45˚C~50˚C) with fan / heater

Water / dust resistant(IP66)

Dimensions (unit:mm)

Specifications



Model







SCC-C7433(P)

SCC-C7435(P)



Camera Type



Color






Device



1/4" Super-HAD IT CCD



1/4" Ex-View-HAD CCD









Effective Pixels

NTSC : 768 x 494 / PAL : 752 x 582



Min. Scene

Color



0.6 Lux(15IRE,Sens-up Off)



0.3 Lux(15IRE,Sens-up Off)



Illumination







0.002 Lux(15IRE, Sens-up 256x)



0.001 Lux(15IRE, Sens-up 256x)









B/W



0.06 Lux(15IRE,Sens-up Off)

0.03 Lux(15IRE,Sens-up Off)















0.0002 Lux(15IRE, Sens-up 256x)

0.0001 Lux(15IRE, Sens-up 256x)



PAN/TILT

Speed



Manual Pan

0 ~180˚/sec















Preset Pan

400˚/sec















Manual Tilt

0.1~90˚/sec















Preset Tilt

200/sec











Range



Panning

0~360˚/sec (Endless)















Tilting

0~180˚











Number of Auto PAN

4













Number of Preset

128













Number of Pattern

3







Functions

Number of Privacy Zone

16













Day & Night

Color/BW/Auto (Moving Filter)











Line Lock



INT/Line Lock











White Balance

ATW1/ATW2/AWC/MANUAL











D-Zoom



Yes(~16x)











High Speed Shutter

Yes (OFF ~ 1/10K)











Motion Detection

Yes











Sens Up



Yes(2x ~ 256x)











Camera ID



Max 20 Character











Remote Control

RS485(Half&Full Duplex)/RS422









Alarm



Input

8

















Output

3(Open Collector 1 relay)











Wide Dynamic Range

N/A



Yes



Horizontal Resolution



540(Color)/570(BW) TV Lines





Video Output



VBS 1.0Vp-p

VBS 1.0Vp-p





S/N Ratio







about 50 dB





Lens



Focal Length

3.55 ~ 113mm

















Zoom ratio



32x Optical











Aperture Ratio

F1.69(W)/F4.2(T)











Viewing



Tele

1.78˚(H) x 1.34˚(V)











Angle



Wide

56.41˚(H) x 43.01˚(V)





Operating Temperature



-45˚C ~ + 50˚C





Operating Humidity



Less than 90%





Power Requirement



NTSC : AC24V, 60Hz / PAL : AC24V, 50Hz



Power Consumption



24W (Only Camera) / 55W (With Fan & Heater)



LED Indicator



Yes





Dimensions







258(Ø) X 422(H)mm





Weight







5,950g





Color







Silver
