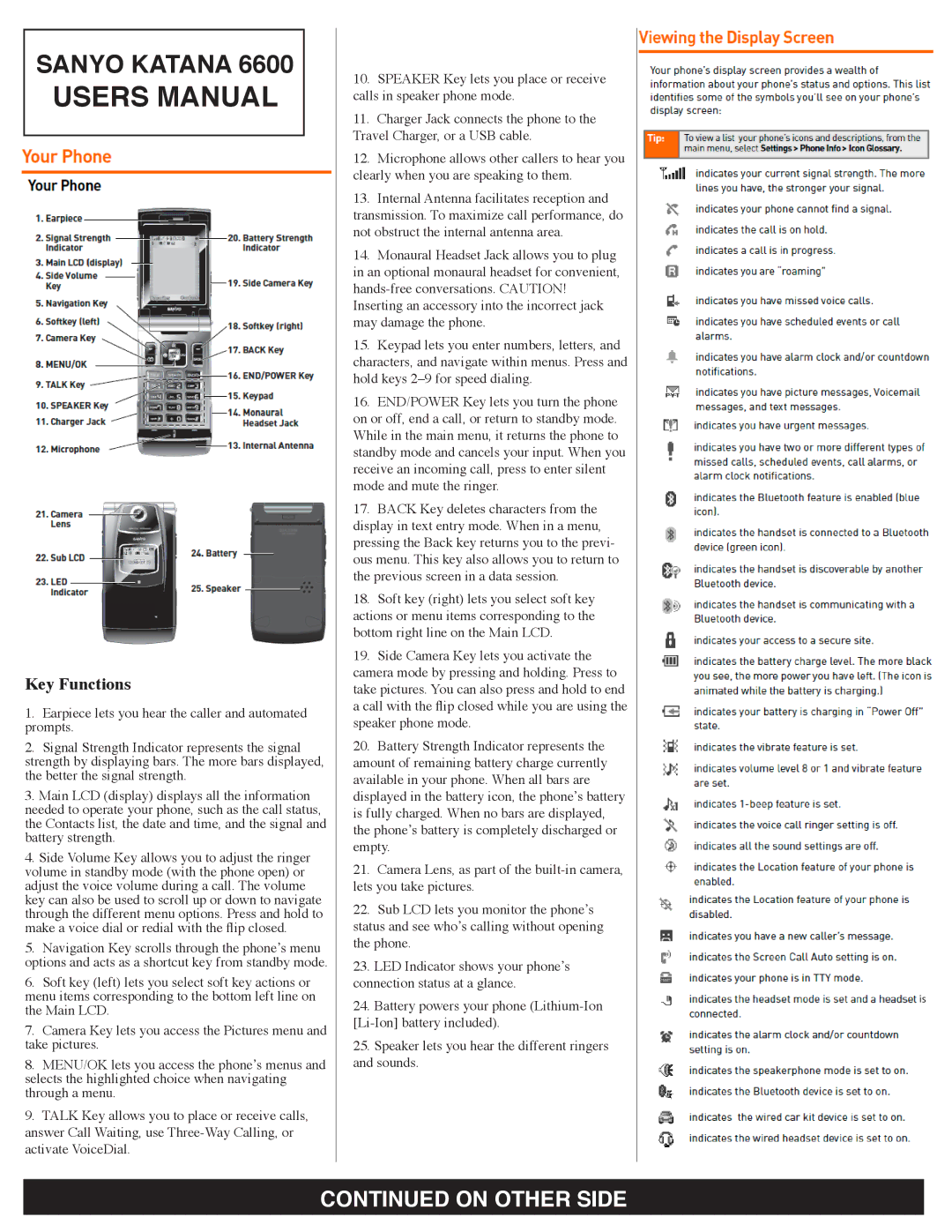

SANYO KATANA 6600
USERS MANUAL
Key Functions
1.Earpiece lets you hear the caller and automated prompts.
2.Signal Strength Indicator represents the signal strength by displaying bars. The more bars displayed, the better the signal strength.
3.Main LCD (display) displays all the information needed to operate your phone, such as the call status, the Contacts list, the date and time, and the signal and battery strength.
4.Side Volume Key allows you to adjust the ringer volume in standby mode (with the phone open) or adjust the voice volume during a call. The volume key can also be used to scroll up or down to navigate through the different menu options. Press and hold to make a voice dial or redial with the flip closed.
5.Navigation Key scrolls through the phone’s menu options and acts as a shortcut key from standby mode.
6.Soft key (left) lets you select soft key actions or menu items corresponding to the bottom left line on the Main LCD.
7.Camera Key lets you access the Pictures menu and take pictures.
8.MENU/OK lets you access the phone’s menus and selects the highlighted choice when navigating through a menu.
9.TALK Key allows you to place or receive calls, answer Call Waiting, use
10. SPEAKER Key lets you place or receive calls in speaker phone mode.
11. Charger Jack connects the phone to the Travel Charger, or a USB cable.
12. Microphone allows other callers to hear you clearly when you are speaking to them.
13. Internal Antenna facilitates reception and transmission. To maximize call performance, do not obstruct the internal antenna area.
14. Monaural Headset Jack allows you to plug in an optional monaural headset for convenient,
Inserting an accessory into the incorrect jack may damage the phone.
15. Keypad lets you enter numbers, letters, and characters, and navigate within menus. Press and hold keys
16. END/POWER Key lets you turn the phone on or off, end a call, or return to standby mode. While in the main menu, it returns the phone to standby mode and cancels your input. When you receive an incoming call, press to enter silent mode and mute the ringer.
17. BACK Key deletes characters from the display in text entry mode. When in a menu, pressing the Back key returns you to the previ- ous menu. This key also allows you to return to the previous screen in a data session.
18. Soft key (right) lets you select soft key actions or menu items corresponding to the bottom right line on the Main LCD.
19. Side Camera Key lets you activate the camera mode by pressing and holding. Press to take pictures. You can also press and hold to end a call with the flip closed while you are using the speaker phone mode.
20. Battery Strength Indicator represents the amount of remaining battery charge currently available in your phone. When all bars are displayed in the battery icon, the phone’s battery is fully charged. When no bars are displayed, the phone’s battery is completely discharged or empty.
21. Camera Lens, as part of the
22. Sub LCD lets you monitor the phone’s status and see who’s calling without opening the phone.
23. LED Indicator shows your phone’s connection status at a glance.
24. Battery powers your phone
25.Speaker lets you hear the different ringers and sounds.
