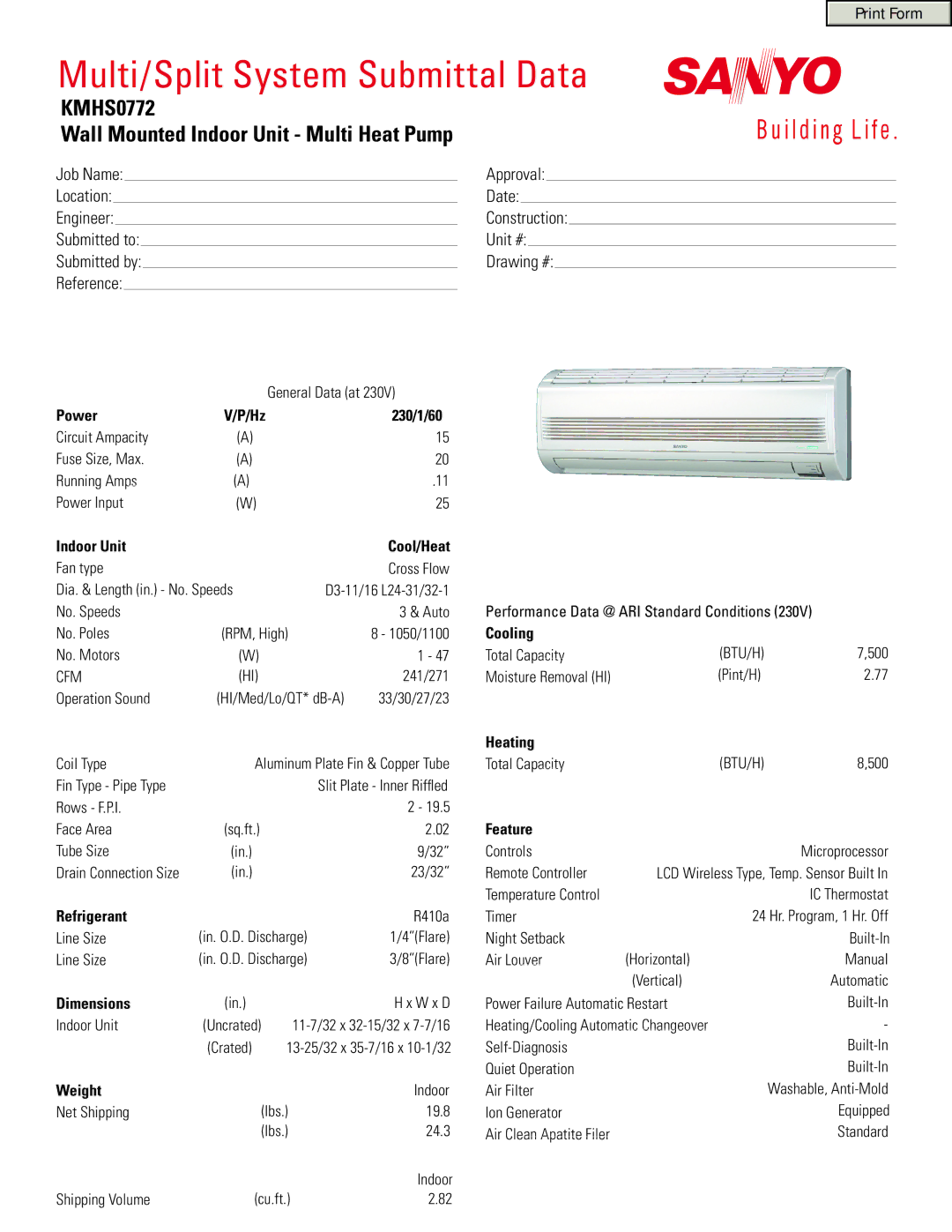

Multi/Split System Submittal Data

KMHS0772

Wall Mounted Indoor Unit - Multi Heat Pump

Job Name:	Approval:
Location:	Date:
Engineer:	Construction:
Submitted to:	Unit #:
Submitted by:	Drawing #:
Reference:

		General Data (at 230V)
Power	V/P/Hz	230/1/60
Circuit Ampacity	(A)	15
Fuse Size, Max.	(A)	20
Running Amps	(A)	.11
Power Input	(W)	25

Indoor Unit				Cool/Heat
Fan type				Cross Flow
Dia. & Length (in.) - No. Speeds			D3-11/16 L24-31/32-1
No. Speeds				3 & Auto
No. Poles	(RPM, High)			8 - 1050/1100
No. Motors	(W)			1 - 47
CFM	(HI)			241/271
Operation Sound	(HI/Med/Lo/QT* dB-A)			33/30/27/23
Coil Type	Aluminum Plate Fin & Copper Tube
Fin Type - Pipe Type			Slit Plate - Inner Riffed
Rows - F.P.I.				2 - 19.5
Face Area	(sq.ft.)			2.02
Tube Size	(in.)			9/32”
Drain Connection Size	(in.)			23/32”
Refrigerant				R410a
Line Size	(in. O.D. Discharge)			1/4”(Flare)
Line Size	(in. O.D. Discharge)			3/8”(Flare)

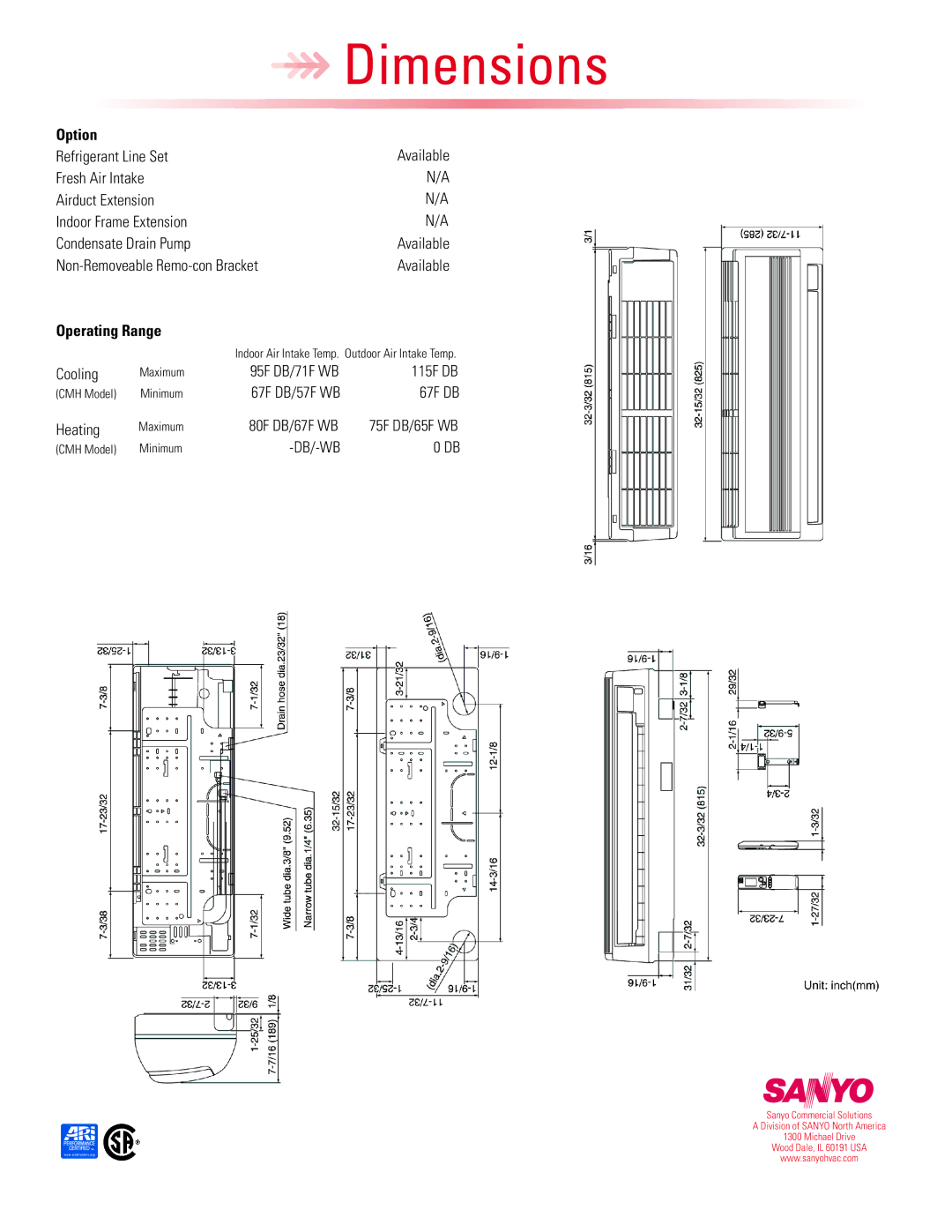

Dimensions	(in.)			H x W x D
Indoor Unit	(Uncrated)	11-7/32 x 32-15/32 x 7-7/16
	(Crated)	13-25/32 x 35-7/16 x 10-1/32
Weight				Indoor
Net Shipping		(lbs.)		19.8
		(lbs.)		24.3
				Indoor
Shipping Volume	(cu.ft.)			2.82

Performance Data @ ARI Standard Conditions (230V)

Cooling
Total Capacity		(BTU/H)	7,500
Moisture Removal (HI)		(Pint/H)	2.77
Heating
Total Capacity		(BTU/H)	8,500
Feature
Controls			Microprocessor
Remote Controller	LCD Wireless Type, Temp. Sensor Built In
Temperature Control			IC Thermostat
Timer		24 Hr. Program, 1 Hr. Off
Night Setback			Built-In
Air Louver	(Horizontal)		Manual
	(Vertical)		Automatic
Power Failure Automatic Restart			Built-In
Heating/Cooling Automatic Changeover			-
Self-Diagnosis			Built-In
Quiet Operation			Built-In
Air Filter			Washable, Anti-Mold
Ion Generator			Equipped
Air Clean Apatite Filer			Standard
