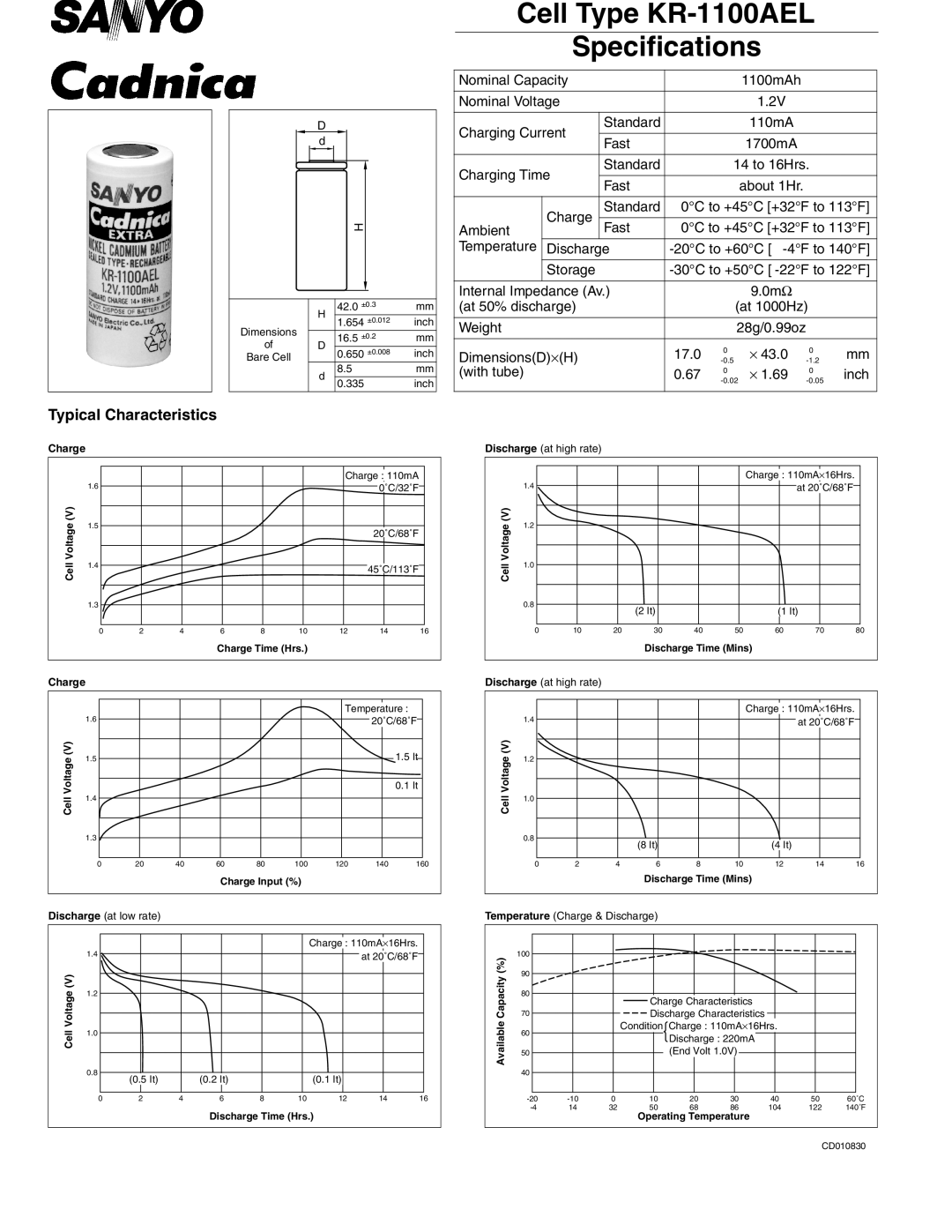

Sanyo specifications Cell Type KR-1100AEL Specifications

	D
	d
	H
	42.0 ±0.3		mm
	H	±0.012	inch
Dimensions	1.654
	16.5 ±0.2		mm
of
	D	±0.008	inch
Bare Cell	0.650
	8.5		mm
	d		inch
	0.335

Typical Characteristics

Cell Type KR-1100AEL

Specifications

Nominal Capacity					1100mAh
Nominal Voltage					1.2V
Charging Current		Standard			110mA
		Fast			1700mA
Charging Time		Standard		14 to 16Hrs.
		Fast			about 1Hr.
	Charge	Standard	0°C to +45°C [+32°F to 113°F]
Ambient		Fast	0°C to +45°C [+32°F to 113°F]
Temperature	Discharge		-20°C to +60°C [ -4°F to 140°F]
	Storage		-30°C to +50°C [ -22°F to 122°F]
Internal Impedance (Av.)					9.0mΩ
(at 50% discharge)				(at 1000Hz)
Weight				28g/0.99oz
Dimensions(D)×(H)			17.0	0	× 43.0	0	mm
				-0.5		-1.2
(with tube)			0.67	-0.02	× 1.69	-0.05	inch
				0		0

Charge

1.6

(V)
Voltage	1.5
Cell	1.4
	1.3

Charge : 110mA 0˚C/32˚F

20˚C/68˚F

45˚C/113˚F

Discharge (at high rate)

	1.4		Charge : 110mA×16Hrs.
(V)					at 20˚C/68˚F
	1.2
Voltage
	1.0
Cell
	0.8
		(2 It)		(1 It)

0 2 4 6 8 10 12 14 16

0 10 20 30 40 50 60 70 80

Charge

1.6

(V)	1.5
Voltage
	1.4
Cell
	1.3

Charge Time (Hrs.)

Temperature : 20˚C/68˚F

1.5 It

0.1 It

Discharge Time (Mins)

Discharge (at high rate)

	1.4		Charge : 110mA×16Hrs.
(V)					at 20˚C/68˚F
Voltage	1.2
Cell	1.0
	0.8
		(8 It)		(4 It)

0	20	40	60	80	100	120	140	160
			Charge Input (%)

Discharge (at low rate)

	1.4						Charge : 110mA×16Hrs.
(V)									at 20˚C/68˚F
Voltage	1.2
Cell	1.0
	0.8
		(0.5 It)		(0.2 It)				(0.1 It)
	0	2	4	6	8	10	12		14	16
				Discharge Time (Hrs.)

	0	2	4	6			8		10	12	14	16
					Discharge Time (Mins)
Temperature (Charge & Discharge)
(%)	100
	90
Capacity
	80
						Charge		Characteristics
	70					Discharge		Characteristics
Available	60			Condition		Charge		: 110mA×16Hrs.
							Discharge : 220mA
	50						(End Volt 1.0V)
	40
	-20	-10	0	10			20		30	40	50	60˚C
	-4	14	32	50			68		86	104	122	140˚F
					Operating Temperature

CD010830
