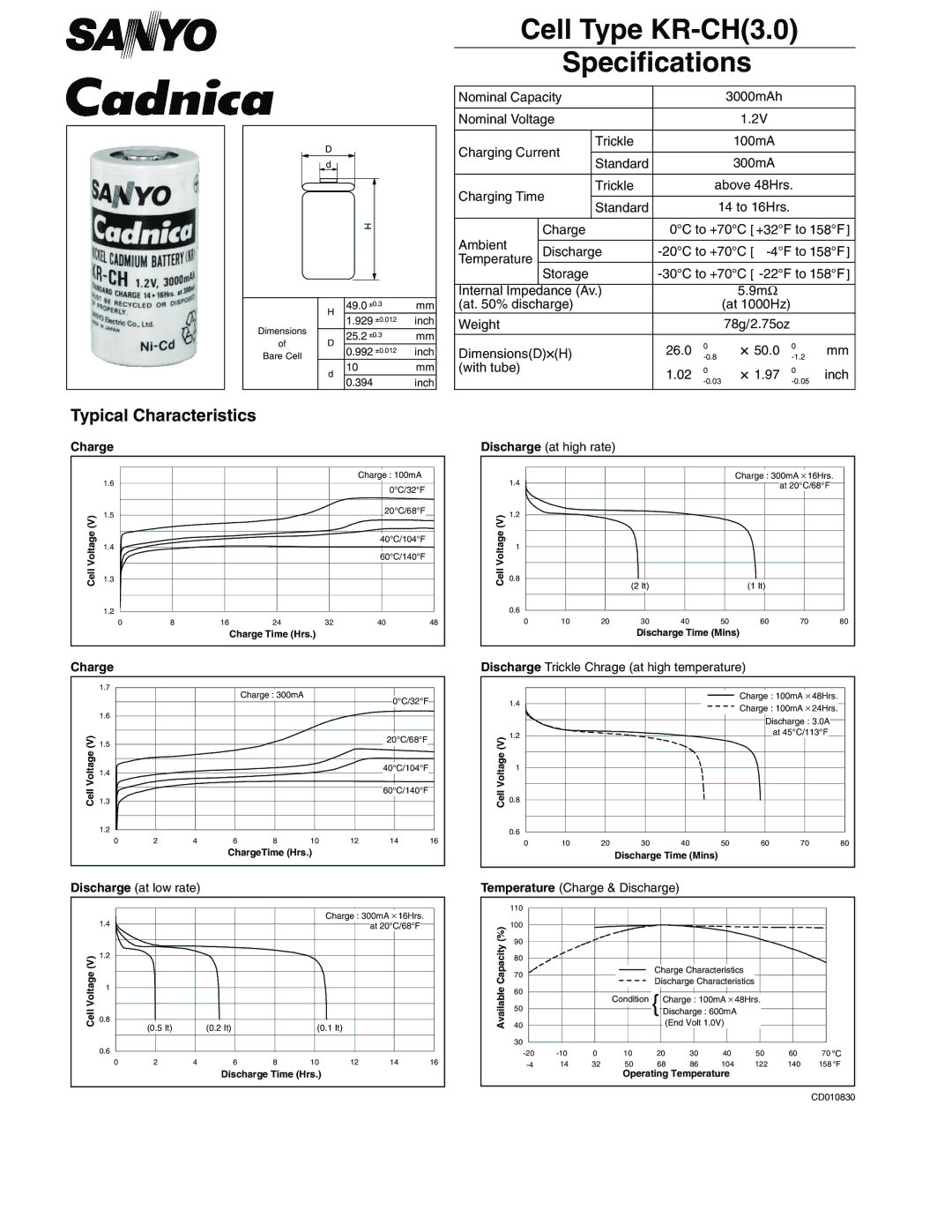

Sanyo KR-CH(3.0) specifications Cell Type KR-CH3.0 Specifications, Typical Characteristics

					D
					d
						H
					H	49.0 ±0.3	mm
						1.929 ±0.012	inch
				Dimensions
						25.2 ±0.3	mm
				of	D
						0.992 ±0.012	inch
				Bare Cell
						10	mm
					d
						0.394	inch
Typical Characteristics
Charge
	1.6					Charge : 100mA
						0°C/32°F
(V)	1.5					20°C/68°F
Voltage	1.4					40°C/104°F
Cell						60°C/140°F
	1.3
	1.2
	0	8	16	24	32	40	48

Charge Time (Hrs.)

Charge
	1.7				Charge : 300mA
								0°C/32°F
	1.6
(V)	1.5							20°C/68°F
Voltage	1.4							40°C/104°F
								60°C/140°F
Cell
	1.3
	1.2
	0	2	4	6	8	10	12	14	16

ChargeTime (Hrs.)

Cell Type KR-CH(3.0)

Specifications

Nominal Capacity						3000mAh
Nominal Voltage						1.2V
Charging Current		Trickle				100mA
		Standard				300mA
Charging Time		Trickle		above 48Hrs.
		Standard			14 to 16Hrs.
	Charge		0°C to +70°C [ +32°F to 158°F ]
Ambient
	Discharge		-20°C to +70°C [				-4°F to 158°F ]
Temperature
	Storage		-30°C to +70°C [ -22°F to 158°F ]
Internal Impedance (Av.)						5.9mΩ
(at. 50% discharge)						(at 1000Hz)
Weight						78g/2.75oz
Dimensions(D)×(H)			26.0	0		×	50.0	0	mm
				-0.8				-1.2
(with tube)			1.02	0		×	1.97	0	inch
				-0.03				-0.05

Discharge (at high rate)

	1.4						Charge : 300mA × 16Hrs.
								at 20°C/68°F
(V)	1.2
Voltage	1
Cell	0.8			(2 It)			(1 It)
	0.6
	0	10	20	30	40	50	60	70	80
				Discharge Time (Mins)

Discharge Trickle Chrage (at high temperature)

	1.4						Charge : 100mA × 48Hrs.
							Charge : 100mA × 24Hrs.
							Discharge : 3.0A
(V)	1.2							at 45°C/113°F
Voltage	1
Cell	0.8
	0.6
	0	10	20	30	40	50	60	70	80

Discharge Time (Mins)

Discharge (at low rate)

	1.4						Charge : 300mA × 16Hrs.
								at 20°C/68°F
(V)	1.2
Voltage	1
Cell	0.8	(0.5 It)		(0.2 It)		(0.1 It)
	0.6
	0	2	4	6	8	10	12	14	16
				Discharge Time (Hrs.)

Temperature (Charge & Discharge)

	110
(%)	100
	90
Capacity
	80
	70				Charge Characteristics
					Discharge Characteristics
Available	60			Condition	Charge : 100mA × 48Hrs.
	50				{ Discharge : 600mA
	40				(End Volt 1.0V)
	30
	-20	-10	0	10	20	30	40	50	60	70 °C
	-4	14	32	50	68	86	104	122	140	158 °F
				Operating Temperature
										CD010830
