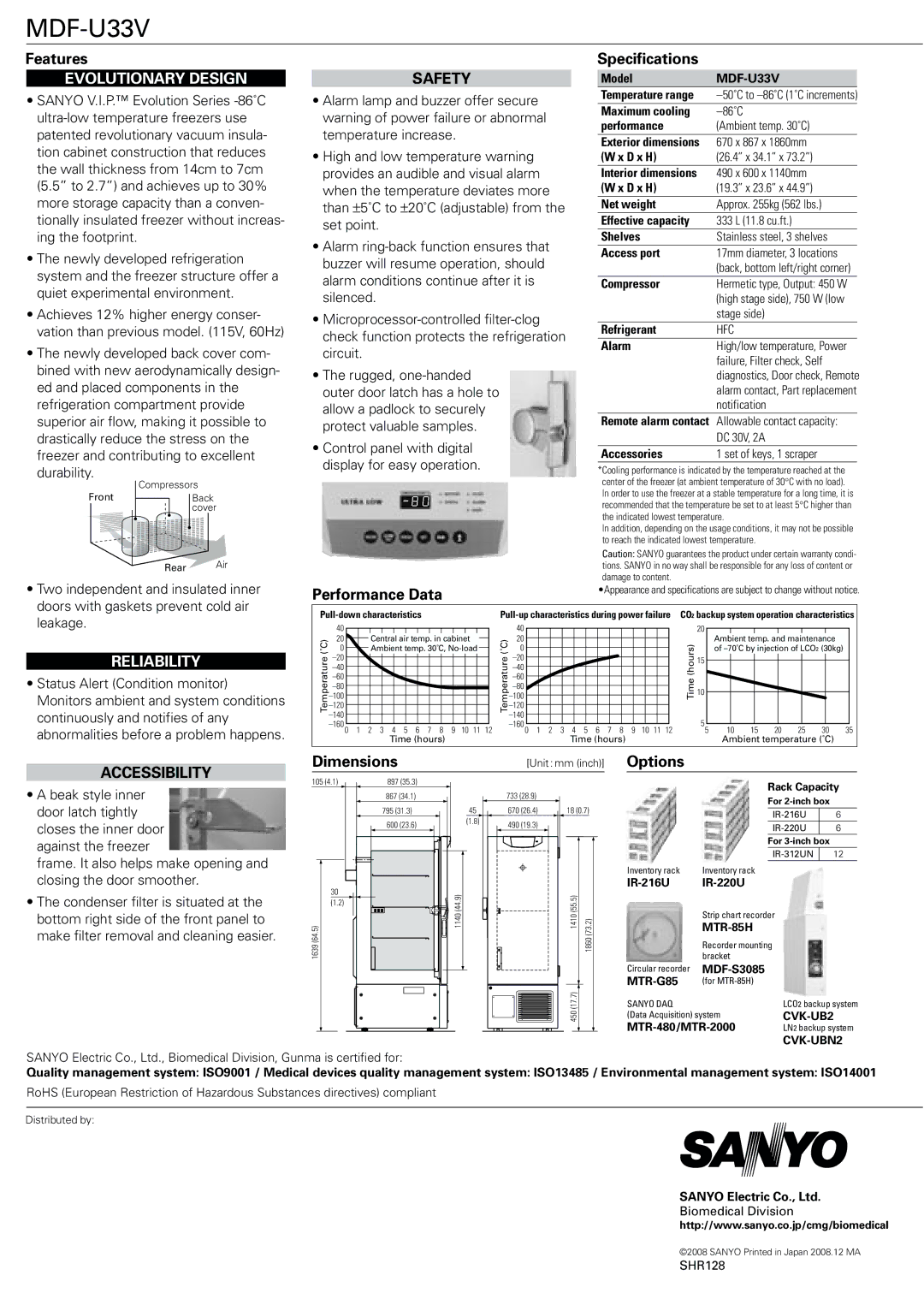

Sanyo MDF-U33V Features, Safety, Specifications, Accessibility, Performance Data, Dimensions

MDF-U33V

Features

EVOLUTIONARY DESIGN

•SANYO V.I.P.™ Evolution Series -86˚C ultra-low temperature freezers use patented revolutionary vacuum insula- tion cabinet construction that reduces the wall thickness from 14cm to 7cm (5.5” to 2.7”) and achieves up to 30% more storage capacity than a conven- tionally insulated freezer without increas- ing the footprint.

•The newly developed refrigeration system and the freezer structure offer a quiet experimental environment.

•Achieves 12% higher energy conser- vation than previous model. (115V, 60Hz)

•The newly developed back cover com- bined with new aerodynamically design- ed and placed components in the refrigeration compartment provide superior air flow, making it possible to drastically reduce the stress on the freezer and contributing to excellent

durability.

	Compressors
Front		Back
		cover
	Rear	Air

SAFETY

•Alarm lamp and buzzer offer secure warning of power failure or abnormal temperature increase.

•High and low temperature warning provides an audible and visual alarm

when the temperature deviates more than ±5˚C to ±20˚C (adjustable) from the set point.

•Alarm ring-back function ensures that buzzer will resume operation, should alarm conditions continue after it is silenced.

•Microprocessor-controlled filter-clog check function protects the refrigeration circuit.

•The rugged, one-handed outer door latch has a hole to allow a padlock to securely protect valuable samples.

•Control panel with digital display for easy operation.

Specifications

Model	MDF-U33V
Temperature range	–50˚C to –86˚C (1˚C increments)
Maximum cooling	–86˚C
performance	(Ambient temp. 30˚C)
Exterior dimensions	670 x 867 x 1860mm
(W x D x H)	(26.4” x 34.1” x 73.2”)
Interior dimensions	490 x 600 x 1140mm
(W x D x H)	(19.3” x 23.6” x 44.9”)
Net weight	Approx. 255kg (562 lbs.)
Effective capacity	333 L (11.8 cu.ft.)
Shelves	Stainless steel, 3 shelves
Access port	17mm diameter, 3 locations
	(back, bottom left/right corner)
Compressor	Hermetic type, Output: 450 W
	(high stage side), 750 W (low
	stage side)
Refrigerant	HFC
Alarm	High/low temperature, Power
	failure, Filter check, Self
	diagnostics, Door check, Remote
	alarm contact, Part replacement
	notification
Remote alarm contact	Allowable contact capacity:
	DC 30V, 2A
Accessories	1 set of keys, 1 scraper

*Cooling performance is indicated by the temperature reached at the center of the freezer (at ambient temperature of 30°C with no load). In order to use the freezer at a stable temperature for a long time, it is recommended that the temperature be set to at least 5°C higher than the indicated lowest temperature.

In addition, depending on the usage conditions, it may not be possible to reach the indicated lowest temperature.

Caution: SANYO guarantees the product under certain warranty condi- tions. SANYO in no way shall be responsible for any loss of content or damage to content.

•Two independent and insulated inner doors with gaskets prevent cold air leakage.

RELIABILITY

•Status Alert (Condition monitor) Monitors ambient and system conditions continuously and notifies of any abnormalities before a problem happens.

ACCESSIBILITY

•A beak style inner door latch tightly closes the inner door against the freezer

frame. It also helps make opening and closing the door smoother.

•The condenser filter is situated at the bottom right side of the front panel to make filter removal and cleaning easier.

Performance Data																					•Appearance and specifications are subject to change without notice.
Pull-down characteristics														Pull-up characteristics during power failure														CO2 backup system operation characteristics
	40														40														20
(˚C)Temperature	20		Central air temp. in cabinet											(˚C)Temperature	20													(hours)Time			Ambient temp. and maintenance
	0		Ambient temp. 30˚C, No-load												0																of –70˚C by injection of LCO2				(30kg)
	–20														–20														15
	–40														–40
	–60														–60
	–80														–80														10
	–100														–100
	–120														–120
	–140														–140														5
	–1600	1	2	3	4	5	6	7	8	9	10	11	12		–1600	1	2	3	4	5	6	7	8	9	10	11	12			5	10	15	20	25	30	35

Time (hours) Time (hours) Ambient temperature (˚C)

Dimensions			[Unit : mm (inch)]			Options
105 (4.1)	897 (35.3)							Rack Capacity
	867 (34.1)		733 (28.9)
								For 2-inch box
	795 (31.3)	45	670 (26.4)	18 (0.7)
								IR-216U	6
	600 (23.6)	(1.8)	490 (19.3)
								IR-220U	6
								For 3-inch box
								IR-312UN	12
						Inventory rack	Inventory rack
30						IR-216U	IR-220U
		(44.9)		(55.5)
(1.2)
(64.5)1639		1140		1410	1860(73.2)		Strip chart recorder
							bracket
							MTR-85H
							Recorder mounting
						Circular recorder	MDF-S3085
						MTR-G85	(for MTR-85H)
				(17.7)		SANYO DAQ		LCO2 backup system
				450		(Data Acquisition) system		CVK-UB2
						MTR-480/MTR-2000		LN2 backup system

CVK-UBN2

SANYO Electric Co., Ltd., Biomedical Division, Gunma is certified for:

Quality management system: ISO9001 / Medical devices quality management system: ISO13485 / Environmental management system: ISO14001

RoHS (European Restriction of Hazardous Substances directives) compliant

Distributed by:

SANYO Electric Co., Ltd.

Biomedical Division

http://www.sanyo.co.jp/cmg/biomedical

©2008 SANYO Printed in Japan 2008.12 MA

SHR128
