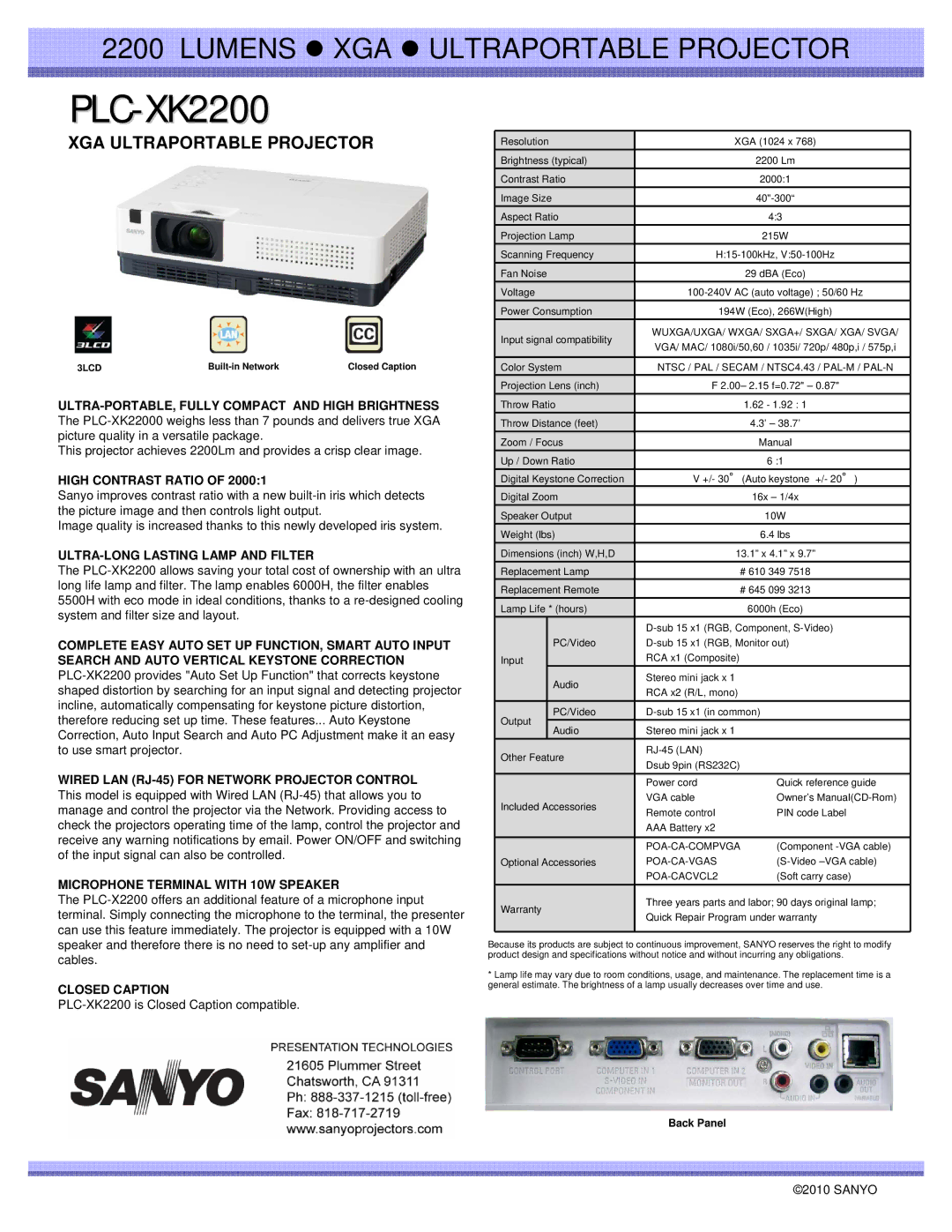

2200 LUMENS z XGA z ULTRAPORTABLE PROJECTOR

PLC-XK2200

XGA ULTRAPORTABLE PROJECTOR

3LCD

Built-in Network

Closed Caption

ULTRA-PORTABLE, FULLY COMPACT AND HIGH BRIGHTNESS The PLC-XK22000 weighs less than 7 pounds and delivers true XGA picture quality in a versatile package.

This projector achieves 2200Lm and provides a crisp clear image.

HIGH CONTRAST RATIO OF 2000:1

Sanyo improves contrast ratio with a new built-in iris which detects the picture image and then controls light output.

Image quality is increased thanks to this newly developed iris system.

ULTRA-LONG LASTING LAMP AND FILTER

The PLC-XK2200 allows saving your total cost of ownership with an ultra long life lamp and filter. The lamp enables 6000H, the filter enables 5500H with eco mode in ideal conditions, thanks to a re-designed cooling system and filter size and layout.

COMPLETE EASY AUTO SET UP FUNCTION, SMART AUTO INPUT SEARCH AND AUTO VERTICAL KEYSTONE CORRECTION PLC-XK2200 provides "Auto Set Up Function" that corrects keystone shaped distortion by searching for an input signal and detecting projector incline, automatically compensating for keystone picture distortion, therefore reducing set up time. These features... Auto Keystone Correction, Auto Input Search and Auto PC Adjustment make it an easy to use smart projector.

WIRED LAN (RJ-45) FOR NETWORK PROJECTOR CONTROL This model is equipped with Wired LAN (RJ-45) that allows you to manage and control the projector via the Network. Providing access to check the projectors operating time of the lamp, control the projector and receive any warning notifications by email. Power ON/OFF and switching of the input signal can also be controlled.

MICROPHONE TERMINAL WITH 10W SPEAKER

The PLC-X2200 offers an additional feature of a microphone input terminal. Simply connecting the microphone to the terminal, the presenter can use this feature immediately. The projector is equipped with a 10W speaker and therefore there is no need to set-up any amplifier and cables.

CLOSED CAPTION

PLC-XK2200 is Closed Caption compatible.

Resolution



XGA (1024 x 768)

Brightness (typical)



2200 Lm

Contrast Ratio



2000:1

Image Size





40"-300“

Aspect Ratio



4:3

Projection Lamp



215W

Scanning Frequency

H:15-100kHz, V:50-100Hz

Fan Noise





29 dBA (Eco)

Voltage



100-240V AC (auto voltage) ; 50/60 Hz

Power Consumption

194W (Eco), 266W(High)

Input signal compatibility

WUXGA/UXGA/ WXGA/ SXGA+/ SXGA/ XGA/ SVGA/

VGA/ MAC/ 1080i/50,60 / 1035i/ 720p/ 480p,i / 575p,i







Color System

NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N

Projection Lens (inch)

F 2.00– 2.15 f=0.72" – 0.87"

Throw Ratio



1.62 - 1.92 : 1

Throw Distance (feet)



4.3’ – 38.7’

Zoom / Focus



Manual

Up / Down Ratio



6 :1

Digital Keystone Correction

V +/- 30°(Auto keystone +/- 20°)

Digital Zoom



16x – 1/4x

Speaker Output



10W

Weight (lbs)



6.4 lbs

Dimensions (inch) W,H,D

13.1” x 4.1” x 9.7”

Replacement Lamp

# 610 349 7518

Replacement Remote

# 645 099 3213

Lamp Life * (hours)



6000h (Eco)







D-sub 15 x1 (RGB, Component, S-Video)





PC/Video

D-sub 15 x1 (RGB, Monitor out)

Input





RCA x1 (Composite)







Audio

Stereo mini jack x 1







RCA x2 (R/L, mono)











Output



PC/Video

D-sub 15 x1 (in common)



Audio

Stereo mini jack x 1









Other Feature

RJ-45 (LAN)



Dsub 9pin (RS232C)

















Power cord

Quick reference guide

Included Accessories

VGA cable

Owner’s Manual(CD-Rom)

Remote control

PIN code Label













AAA Battery x2









POA-CA-COMPVGA

(Component -VGA cable)

Optional Accessories

POA-CA-VGAS

(S-Video –VGA cable)







POA-CACVCL2

(Soft carry case)

Warranty



Three years parts and labor; 90 days original lamp;



Quick Repair Program under warranty

















Because its products are subject to continuous improvement, SANYO reserves the right to modify product design and specifications without notice and without incurring any obligations.

*Lamp life may vary due to room conditions, usage, and maintenance. The replacement time is a general estimate. The brightness of a lamp usually decreases over time and use.

Back Panel

©2010 SANYO

Page 1 Page 1
Page 1
Image 1
Sanyo PLC-XK2200 specifications XGA Ultraportable Projector
Page 1 Page 1

PLC-XK2200 specifications

The Sanyo PLC-XK2200 is a high-performance projector that stands out in the competitive landscape of presentation technology. Designed primarily for corporate and educational environments, the PLC-XK2200 promises to deliver stunning image quality and reliable performance.

One of the prominent features of the Sanyo PLC-XK2200 is its impressive brightness level of 2200 ANSI lumens, which ensures vivid and clear images even in well-lit rooms. This high brightness rating makes it an ideal choice for larger venues where ambient light can be a challenge. Coupled with a high contrast ratio of 2000:1, the projector delivers deep blacks and bright whites, enhancing overall image depth and clarity.

The projector is equipped with a native XGA (1024 x 768) resolution, allowing it to produce sharp and detailed images suitable for displaying a variety of content, from presentations and graphs to videos and images. With support for a wide range of resolutions, including WXGA and 720p, the PLC-XK2200 provides versatility for different types of media.

One of the standout technologies integrated into the Sanyo PLC-XK2200 is its proprietary "ALD" (Advanced Light Design) technology. This innovation improves lamp longevity while maintaining brightness, leading to lower maintenance costs over the projector's lifecycle. The projector's lamp life can extend up to 4000 hours in eco mode, ensuring that users can rely on it for extended periods without frequent replacements.

In terms of connectivity, the Sanyo PLC-XK2200 offers a robust set of options. It features multiple input ports, including VGA, HDMI, and composite video, enabling compatibility with various devices such as laptops, Blu-ray players, and more. This flexibility is essential for modern presentations that often utilize multiple technologies.

Furthermore, the PLC-XK2200 is designed for ease of use. Its intuitive user interface and comprehensive remote control facilitate quick adjustments and settings changes, making it user-friendly for individuals and teams alike.

Overall, the Sanyo PLC-XK2200 is a reliable, versatile projector that combines advanced technologies with high-quality performance, making it an excellent choice for professionals seeking a solid solution for their presentation needs. Whether for business meetings, educational lectures, or large-scale events, the PLC-XK2200 consistently impresses with its clarity, ease of use, and stunning visuals.
