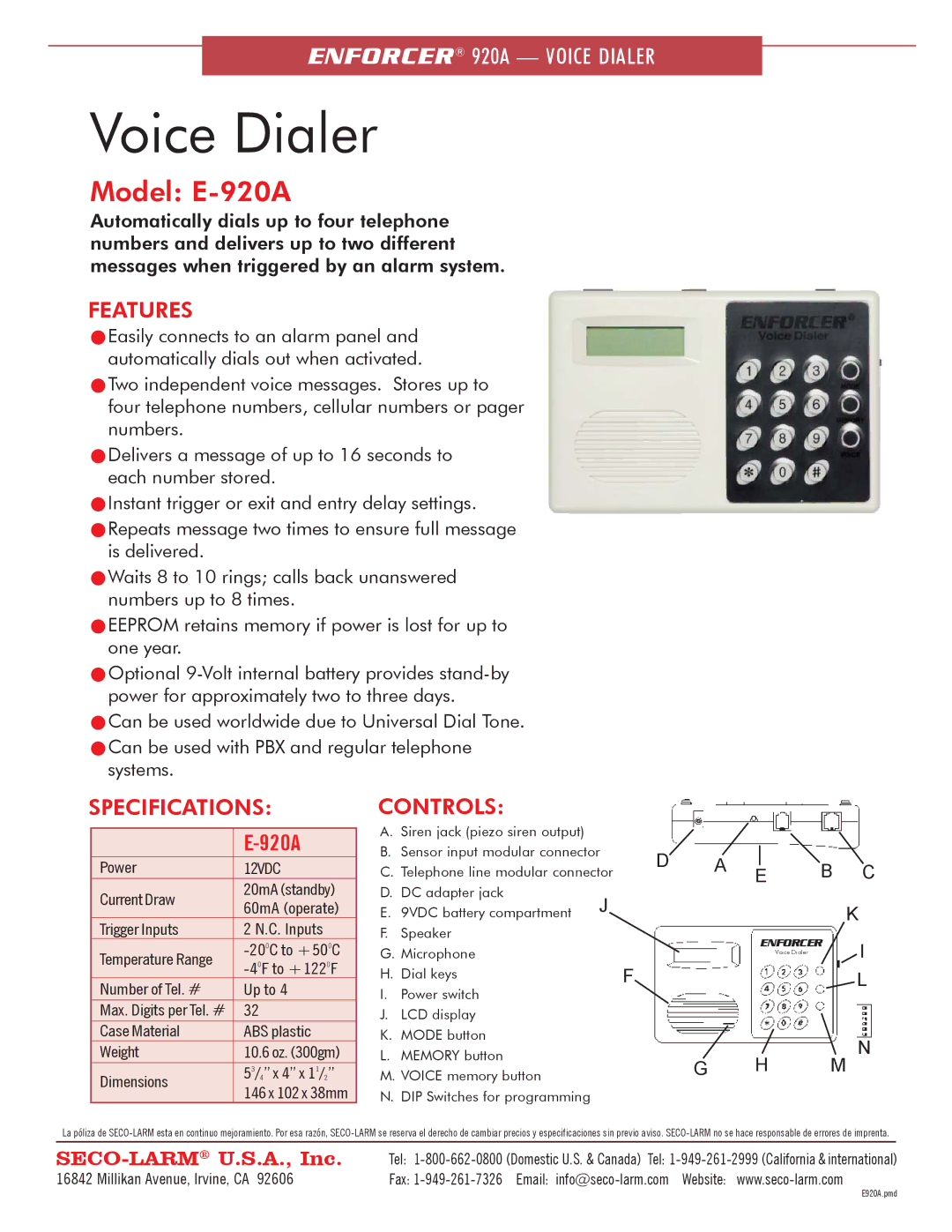

![ENFORCER® 920A — VOICE DIALER](/images/new-backgrounds/194650/1946501x1.webp)
ENFORCER® 920A — VOICE DIALER
Voice Dialer
Model: E-920A
Automatically dials up to four telephone numbers and delivers up to two different messages when triggered by an alarm system.
FEATURES
!Easily connects to an alarm panel and automatically dials out when activated.
!Two independent voice messages. Stores up to four telephone numbers, cellular numbers or pager numbers.
!Delivers a message of up to 16 seconds to each number stored.
!Instant trigger or exit and entry delay settings.
!Repeats message two times to ensure full message is delivered.
!Waits 8 to 10 rings; calls back unanswered numbers up to 8 times.
!EEPROM retains memory if power is lost for up to one year.
!Optional
!Can be used worldwide due to Universal Dial Tone.
!Can be used with PBX and regular telephone systems.
SPECIFICATIONS:
|
| |
Power | 12VDC | |
Current Draw | 20mA (standby) | |
60mA (operate) | ||
| ||
Trigger Inputs | 2 N.C. Inputs | |
Temperature Range | ||
Number of Tel. # | Up to 4 | |
Max. Digits per Tel. # | 32 | |
Case Material | ABS plastic | |
Weight | 10.6 oz. (300gm) | |
Dimensions | 53/4” x 4” x 11/2” | |
146 x 102 x 38mm | ||
|
CONTROLS:
A. Siren jack (piezo siren output) |
|
|
|
|
|
|
| |
B. Sensor input modular connector |
| D | A |
| B | C | ||
C. Telephone line modular connector |
| E | ||||||
|
| |||||||
D. DC adapter jack | J |
|
|
|
|
|
| |
E. 9VDC battery compartment |
|
|
|
|
| K | ||
|
|
|
|
|
| |||
F. | Speaker |
|
|
|
| ENFORCER | I | |
G. Microphone |
|
|
|
| ||||
|
|
|
|
| Voice Dialer | |||
H. Dial keys |
| F |
|
|
|
| L | |
I. | Power switch |
|
|
|
|
| ||
|
|
|
|
|
|
| ||
J. | LCD display |
|
|
|
|
|
|
|
K. MODE button |
|
|
|
|
|
| N | |
L. MEMORY button |
|
|
|
| H |
| ||
M. VOICE memory button |
|
|
| G | M |
N. DIP Switches for programming
La póliza de
16842 Millikan Avenue, Irvine, CA 92606Fax:
