FramePro®701E-XP/ 751E-XP

Senco Products, Inc.

8485 Broadwell Road

Cincinnati, Ohio 45244

Visit our Website www.senco.com

Parts Kits

Questions? Comments? call SENCO’s toll-free Action-line: 1-800-543-4596 or e-mail: toolprof@senco.com

D YK0246

C

YK0305 / 701E-XP

YK0306 / 751E-XP

B

YK0244

A

YK0288

by SENCO Products, Inc. Cincinnati, Ohio 45244—U.S.A.

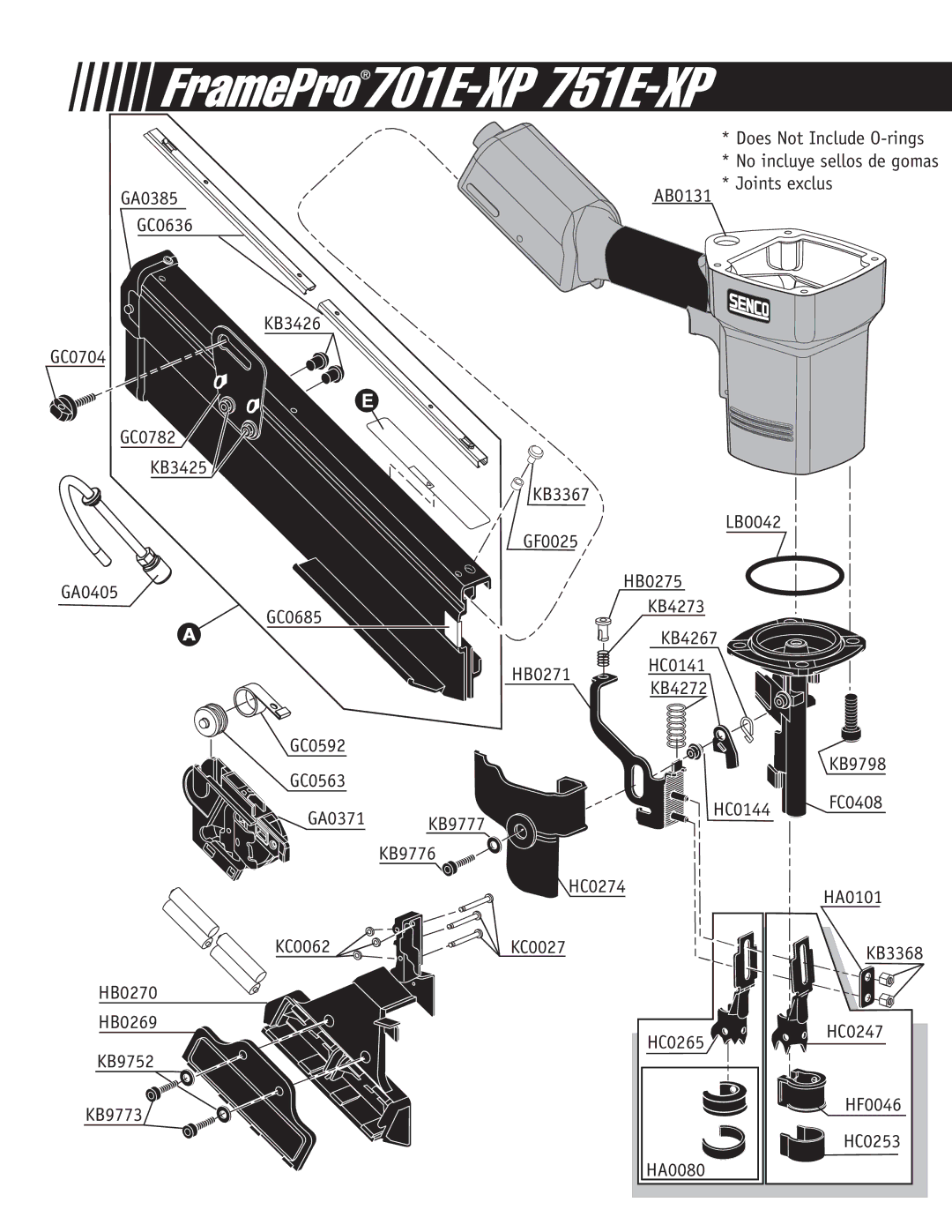

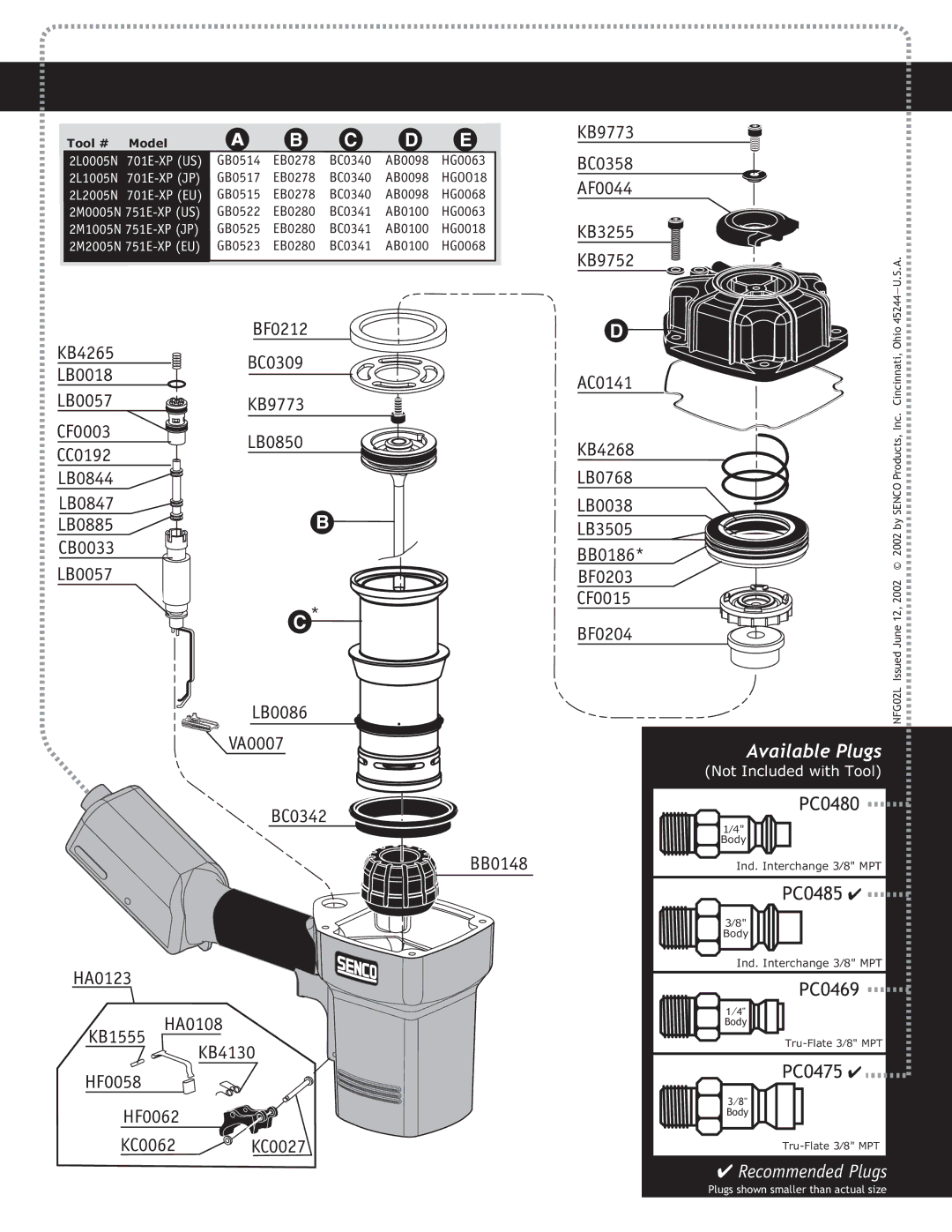

* Schematic Drawings inside

Covered by U.S. Patent Nos. 4,679,719 & 5,732,870

12, 2002 © 2002

Symptom

Air Leak (Top) Tool does nothing Sluggish

Air Leak (Bottom) Poor Return

Weak Drive

Broken Driver

Poor Feed

Tool Jamming

Síntoma

Escape de Air (Arriba) Herramienta no mueve Operación Floja

Escape de Air (Abajo) Retorno Flojo

Penetrado Flojo Lanzeta Quebrada

Alimentador podre Entrancado de la Herramienta

Symptome

Undichtigkeit oben am Gerät Gerät reagiert nicht

Undichtighkeit unten am Gerät keine oder nur unzureichende Rückführung

Gerät treibt nicht ein

Gebrochener Treiber

Befestiger werden nicht nachgeschoben Gerät ist verklemmt

Symptôme

Fuite à l’échappement Ne fonctionne plus Appareil lent

Fuite à la base du moteur Remontée du conteau lente

Peu de puissance Mauvaise percussion

Enraiements Mauvaise avance des projectiles

NFG02L Issued June

Page 1
Image 1
Senco 701E-XP  manual FramePro701E-XP/ 751E-XP
