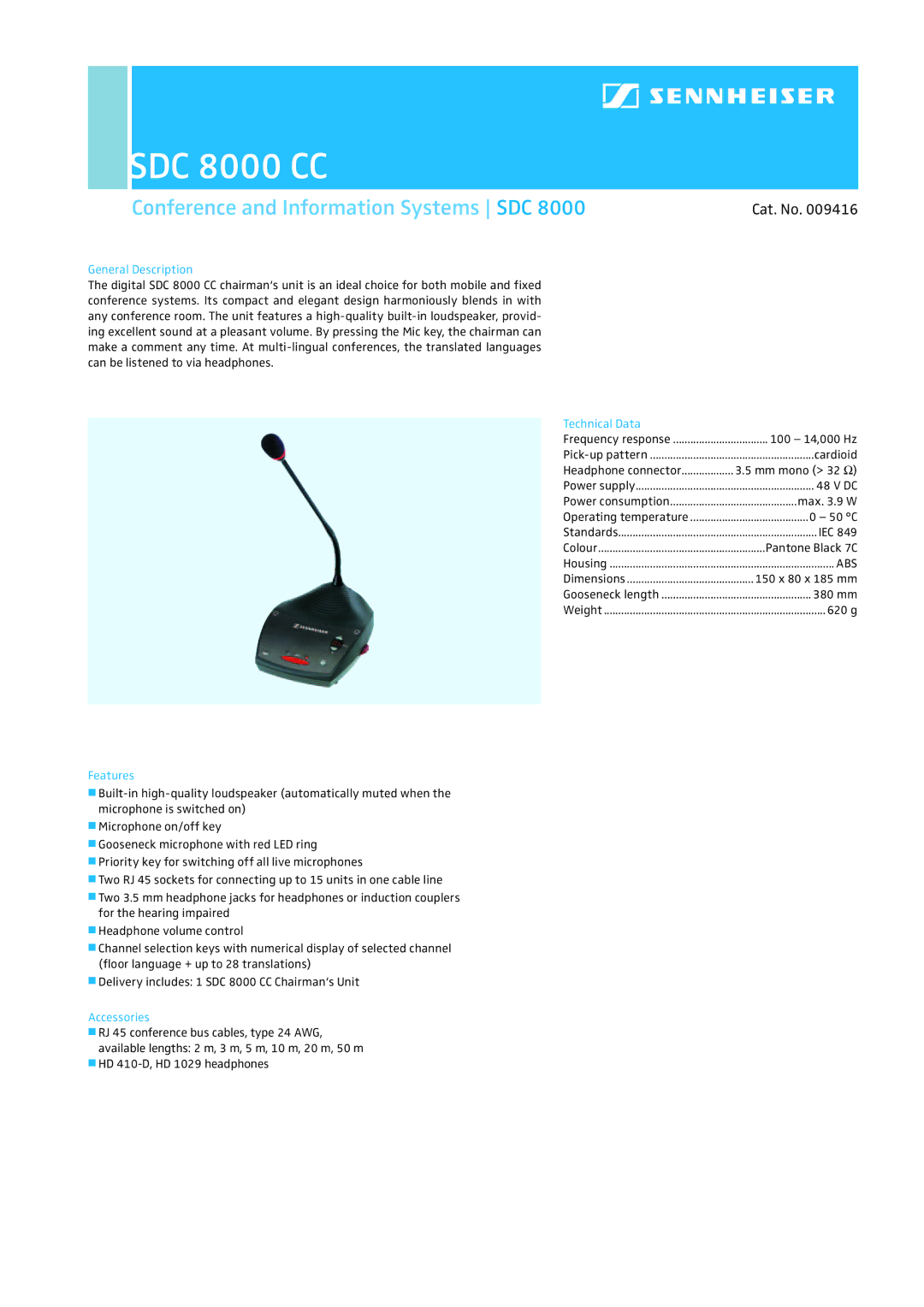

SDC 8000 CC

Conference and Information Systems | SDC 8000

Features
Built-in high-quality loudspeaker (automatical ly muted when the
microphone is switched on)
Microphone on/off key
Gooseneck microphone with red LED ring
Priority key for switching off all live microphones
Two RJ 45 sockets for connecting up to 15 units in one cable line
Two 3.5 mm headphone jacks for headphones or induction couplers
for the hearing impaired
Headphone volume control
Channel selection keys with numerical display of selecte d channel
(floor lan guage + up to 28 transl ations)
Delivery includes: 1 SDC 8000 CC Chairman‘s Unit
Accessories
RJ 45 conference bus cables, type 24 AWG,
available lengths: 2 m, 3 m, 5 m, 10 m, 20 m, 50 m
HD 410-D, HD 1029 headphones
General Description
The digital SDC 8000 CC chairman‘s unit is an ideal choice for both mobil e and fixed
conference systems. Its compact and elegan t design harmoniously blends in with
any conference room. The unit features a high-quali ty built-in loudspeaker, provid -
ing excellent sound at a pleasant volume. By pressin g the Mic key, the chairman can
make a comment any time. At multi-lingual conferenc es, the translated languages
can be listened to via headphones.
Techni cal D ata
Frequency response ................................. 100 – 14,000 Hz
Pick-up pattern.........................................................ca rdioid
Headphone connector..................3.5 mm mon o (> 32 Ω)
Power supply..............................................................48 V DC
Power consumption............................................max. 3.9 W
Operating temperature......................................... 0 – 50 °C
Standards.....................................................................IEC 849
Colour..........................................................Pantone Black 7C
Housing.............................................................................. ABS
Dimensions............................................150 x 80 x 185 mm
Gooseneck length.................................................... 380 mm
Weight.............................................................................620 g

Cat. No. 009416
