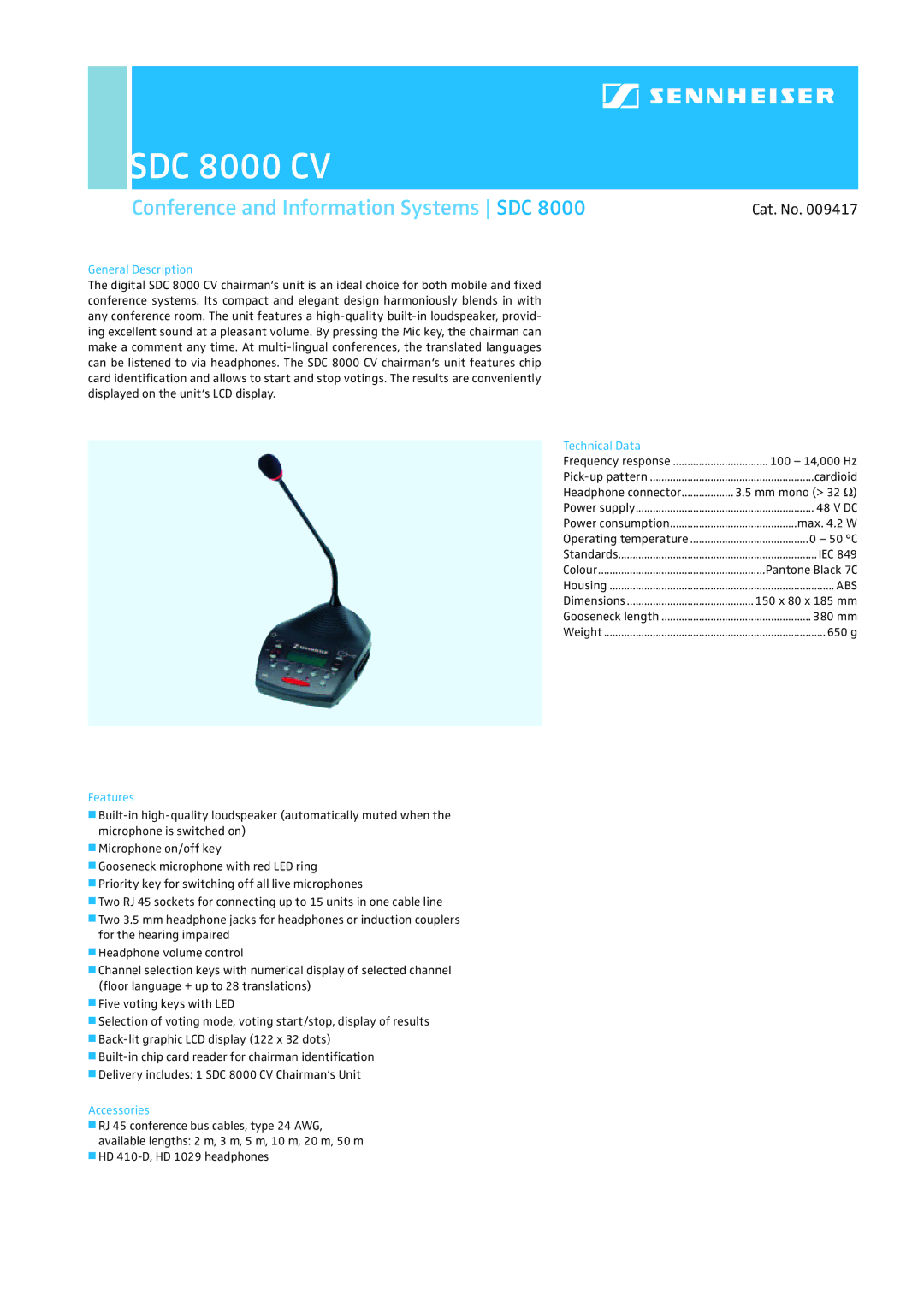

SDC 8000 CV

Conference and Information Systems SDC 8000

Cat. No. 009417

General Description

The digital SDC 8000 CV chairman‘s unit is an ideal choice for both mobile and fixed conference systems. Its compact and elegant design harmoniously blends in with any conference room. The unit features a high-quality built-in loudspeaker, provid- ing excellent sound at a pleasant volume. By pressing the Mic key, the chairman can make a comment any time. At multi-lingual conferences, the translated languages can be listened to via headphones. The SDC 8000 CV chairman‘s unit features chip card identification and allows to start and stop votings. The results are conveniently displayed on the unit‘s LCD display.

Technical Data



Frequency response

100 – 14,000 Hz

Pick-up pattern

cardioid

Headphone connector

3.5 mm mono (> 32 Ω)

Power supply

48 V DC

Power consumption

max. 4.2 W

Operating temperature

0 – 50 °C

Standards

IEC 849

Colour

Pantone Black 7C

Housing

ABS

Dimensions

150 x 80 x 185 mm

Gooseneck length

380 mm

Weight

650 g

Features

Built-in high-quality loudspeaker (automatically muted when the

￿microphone is switched on) Microphone on/off key

Gooseneck microphone with red LED ring Priority key for switching off all live microphones

Two RJ 45 sockets for connecting up to 15 units in one cable line

￿Two 3.5 mm headphone jacks for headphones or induction couplers for the hearing impaired

Headphone volume control

￿Channel selection keys with numerical display of selected channel (floor language + up to 28 translations)

Five voting keys with LED

Selection of voting mode, voting start/stop, display of results Back-lit graphic LCD display (122 x 32 dots)

Built-in chip card reader for chairman identification

￿Delivery includes: 1 SDC 8000 CV Chairman‘s Unit

Accessories

RJ 45 conference bus cables, type 24 AWG,

￿available lengths: 2 m, 3 m, 5 m, 10 m, 20 m, 50 m HD 410-D, HD 1029 headphones
