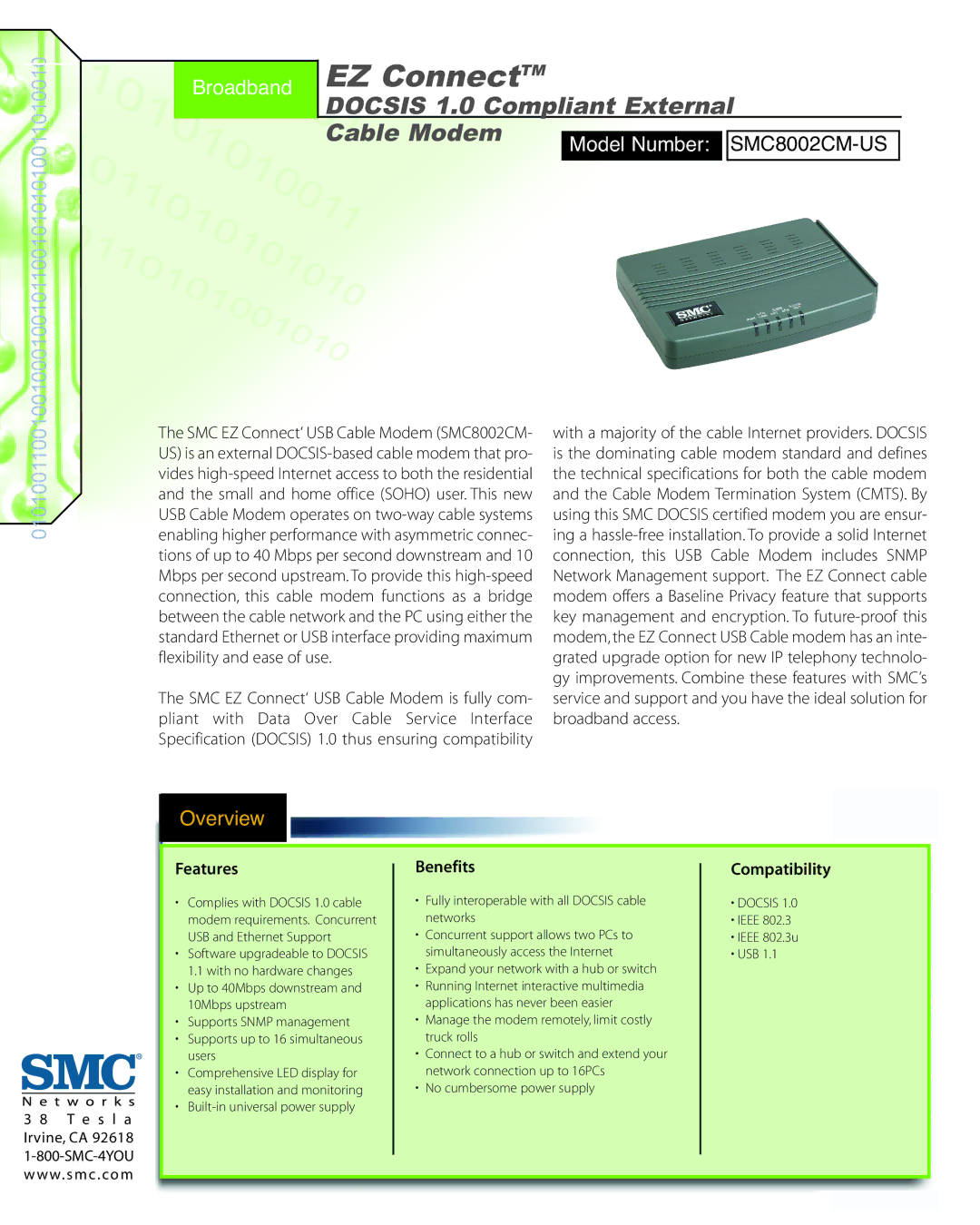

SMC Networks SMC8002CM-U manual Connection, this cable modem functions as a bridge

0101001100100100010010110010101010011010010

Broadband EZ ConnectTM

DOCSIS 1.0 Compliant External

Cable Modem Model Number:: SMC8002CM-US

The SMC EZ Connect‘ USB Cable Modem (SMC8002CM-	with a majority of the cable Internet providers. DOCSIS
US) is an external DOCSIS-based cable modem that pro-	is the dominating cable modem standard and defines
vides high-speed Internet access to both the residential	the technical specifications for both the cable modem
and the small and home office (SOHO) user. This new	and the Cable Modem Termination System (CMTS). By
USB Cable Modem operates on two-way cable systems	using this SMC DOCSIS certified modem you are ensur-
enabling higher performance with asymmetric connec-	ing a hassle-free installation. To provide a solid Internet
tions of up to 40 Mbps per second downstream and 10	connection, this USB Cable Modem includes SNMP
Mbps per second upstream. To provide this high-speed	Network Management support. The EZ Connect cable
connection, this cable modem functions as a bridge	modem offers a Baseline Privacy feature that supports
between the cable network and the PC using either the	key management and encryption. To future-proof this
standard Ethernet or USB interface providing maximum	modem, the EZ Connect USB Cable modem has an inte-
flexibility and ease of use.	grated upgrade option for new IP telephony technolo-
	gy improvements. Combine these features with SMC’s
The SMC EZ Connect‘ USB Cable Modem is fully com-	service and support and you have the ideal solution for
pliant with Data Over Cable Service Interface	broadband access.
Specification (DOCSIS) 1.0 thus ensuring compatibility

Overview

	Features	Benefits		Compatibility
	• Complies with DOCSIS 1.0 cable	•	Fully interoperable with all DOCSIS cable	• DOCSIS 1.0
	modem requirements. Concurrent		networks	• IEEE 802.3
	USB and Ethernet Support	•	Concurrent support allows two PCs to	• IEEE 802.3u
	• Software upgradeable to DOCSIS		simultaneously access the Internet	• USB 1.1
	1.1 with no hardware changes	•	Expand your network with a hub or switch
	• Up to 40Mbps downstream and	•	Running Internet interactive multimedia
	10Mbps upstream		applications has never been easier
	• Supports SNMP management	• Manage the modem remotely, limit costly
	• Supports up to 16 simultaneous		truck rolls
	users	•	Connect to a hub or switch and extend your
	• Comprehensive LED display for		network connection up to 16PCs
	easy installation and monitoring	•	No cumbersome power supply
3 8 T e s l a	• Built-in universal power supply
Irvine, CA 92618
1-800-SMC-4YOU
www. smc . com
